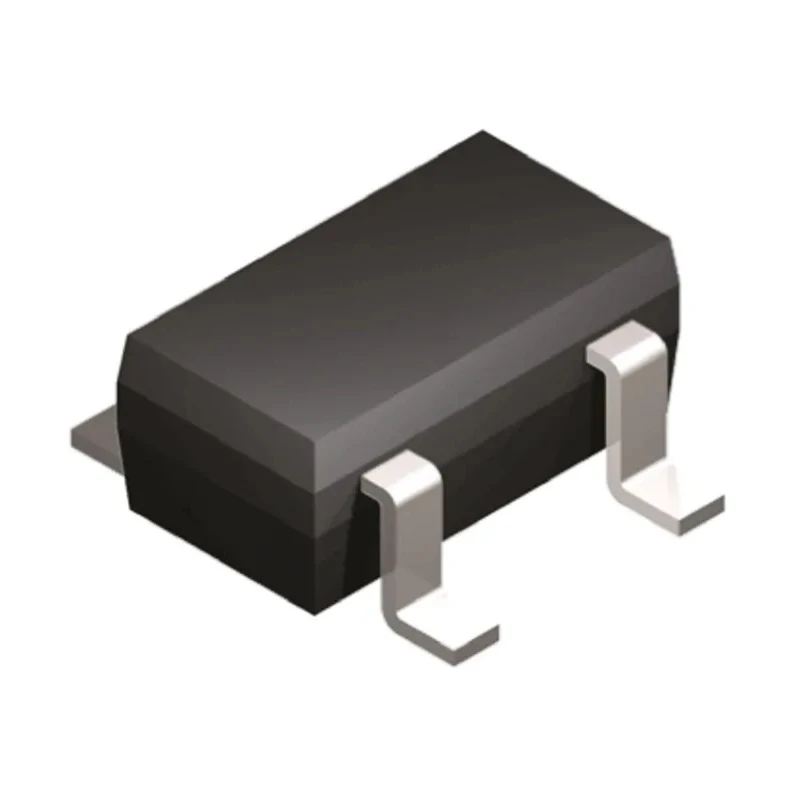

onsemi 1 2-Input AND Logic Gate, 5-Pin TSOP, CMOS Input, VHC Family, 2.0-5.5 V Supply, MC74VHC1G09DTT1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi 1 2-Input AND Logic Gate, 5-Pin TSOP, CMOS Input, VHC Family, 2.0-5.5 V Supply, MC74VHC1G09DTT1G

Name: onsemi 1 2-Input AND Logic Gate, 5-Pin TSOP, CMOS Input, VHC Family, 2.0-5.5 V Supply, MC74VHC1G09DTT1G
Brand: onsemi
SKU: 374418
Price: 0.12 USD
Availability: InStock



Category Logic IC Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1mm
Operating Voltage Range	2.0 to 5.5V
Length	3mm
Model	MC74VHC1G09DTT1G
Mount Type	Surface
Output type	Open Drain
Series	MC74VHC1G09
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	TSOP
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS, Pb-Free
Pin Count	5
Number of Elements	1
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Logic Family	VHC
Logic Function	AND
Minimum Supply Voltage	2V
Maximum Propagation Delay Time @ CL	5.8ns
Maximum Low Level Output Current	8mA
Number of Inputs per Gate	2

Key Features

This logic gate operates with a supply voltage range of 2.0 to 5.5 volts.
It features a maximum propagation delay time of 5.8 nanoseconds at specified load.
The device offers an automotive standard of AEC-Q100 ensuring reliability.
Output type is open drain with maximum low-level output current of 8 mA.
It supports a wide operating temperature range from -55°C to 125°C.
It belongs to the advanced 74VHC high-speed silicon-gate CMOS logic family.
The device package type is TSOP with a pin count of 5.
The component is RoHS and Pb-Free compliant for environmental safety.

Product Description

onsemi MC74VHC1G09DTT1G is a high-speed, low-power 1 2-Input AND Logic Gate housed in a compact 5-Pin TSOP surface mount package. It uses CMOS input technology and is part of the 74VHC series, known for its advanced silicon-gate CMOS logic characteristics, offering high speed with very low power dissipation.

Operating with a supply voltage range from 2.0 V to 5.5 V, this logic gate supports fast switching with a maximum propagation delay time of 5.8 ns at the rated load capacitance. It is designed to meet the automotive standard AEC-Q100, ensuring robustness and reliability in demanding industrial and automotive environments.

The open-drain output type can be integrated easily with other logic circuits, providing a maximum low-level output current of 8 mA. The temperature operating range extends from -55°C to 125°C, enabling use in harsh environmental conditions.

This component is RoHS and Pb-Free compliant, ensuring it meets current environmental directives for hazardous substances reduction. Its surface mount configuration fits efficiently on printed circuit boards, aiding in compact design assembly.

Ideal for industrial, automotive, and advanced electronics applications, the MC74VHC1G09DTT1G logic gate is useful in high-speed digital signal processing, control systems, and embedded logic functions.

This logic gate operates with a supply voltage range of 2.0 to 5.5 volts. It features a maximum propagation delay time of 5.8 nanoseconds at specified load. The device offers an automotive standard of AEC-Q100 ensuring reliability.

Output type is open drain with maximum low-level output current of 8 mA. It supports a wide operating temperature range from -55°C to 125°C. It belongs to the advanced 74VHC high-speed silicon-gate CMOS logic family. The device package type is TSOP with a pin count of 5.

The component is RoHS and Pb-Free compliant for environmental safety. Mount type is surface mount ensuring compact PCB design integration. This product is suitable for high-speed digital logic applications requiring low power dissipation.
