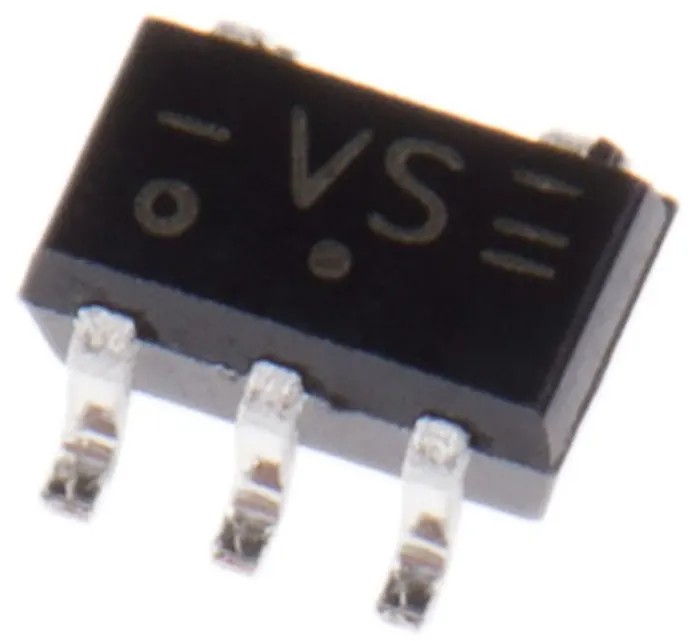

Nexperia Schmitt Trigger Input Inverter Logic IC, 5-Pin TSSOP Package 74AHC1G14GW,125

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Schmitt Trigger Input Inverter Logic IC, 5-Pin TSSOP Package 74AHC1G14GW,125

Name: Nexperia Schmitt Trigger Input Inverter Logic IC, 5-Pin TSSOP Package 74AHC1G14GW,125
Brand: Nexperia
SKU: 413347
Price: 0.1 USD
Availability: InStock



Category Logic IC Brand Nexperia Condition New

Specifications

Country of Origin	Malaysia
Brand	Nexperia
Height	1mm
Length	2.25mm
Model	74AHC1G14GW,125
Width	1.35mm
Mount Type	Surface
Output type	Inverting
Series	74AHC1G14
Input Type	Schmitt Trigger
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Pin Count	5
Number of Elements per Chip	1
Maximum Supply Voltage	5.5V
Logic Family	AHC
Logic Function	Inverter
Minimum Supply Voltage	2V
Maximum High Level Output Current	-8mA
Maximum Propagation Delay Time @ CL	20.5ns
Maximum Low Level Output Current	8mA

Key Features

Designed as a single inverter element per chip with CMOS input and output for low power consumption.
Offers a maximum propagation delay time of 20.5 nanoseconds ensuring fast switching performance.
Provides maximum high level output current of -8 mA and low level output current of 8 mA.
Operates reliably between -40°C to 125°C, suitable for a broad temperature range.
Encapsulated in a compact 5-pin TSSOP package facilitating surface mounting on PCBs.
Constructed under the AHC logic family ensuring compatibility with standard logic systems.
Package dimensions measure approximately 2.25 mm length, 1.35 mm width, and 1 mm height.
Manufactured in Malaysia maintaining international quality standards.

Product Description

Nexperia 74AHC1G14GW,125 is a high-performance Schmitt Trigger input inverter logic IC designed for electronic and semiconductor applications. It features a single CMOS inverter element with Schmitt Trigger input, offering robust inverting logic function with high noise immunity suitable for complex circuit design.

This IC operates reliably over a supply voltage range from 2 V to 5.5 V, with a maximum propagation delay time of 20.5 ns measured at a 20 pF load capacitance. The maximum output current capabilities are -8 mA (high level) and 8 mA (low level), which enable compatibility with various logic level signaling applications. Its operational temperature range spans from -40°C to 125°C, allowing use in harsh environmental conditions common in industrial and commercial electronics.

The device is housed in a compact 5-pin TSSOP surface-mount package with dimensions of 2.25 mm length, 1.35 mm width, and 1 mm height. The package type supports high-density PCB layouts optimizing space in modern electronics manufacturing. It is part of the 74AHC1G14 series, known for CMOS technology and low power dissipation, ideal for embedded systems and digital logic circuits.

Single inverter logic function with Schmitt Trigger input for noise immunity. Compact 5-pin TSSOP surface mount package for easy PCB integration. Wide supply voltage of 2 to 5.5 volts to support various electronic designs.

Fast switching with 20.5 ns maximum propagation delay time. High output current capability supports standard logic interfacing. Wide operating temperature range from -40°C up to 125°C for industrial use. Constructed in AHC logic family providing reliability and efficiency.

Manufactured in Malaysia ensuring quality manufacturing standards.

This inverter logic IC is suitable for applications in industrial automation, electronic circuit design, semiconductor systems, and power connectors integration. It is an excellent choice for improving signal integrity in digital logic circuits requiring Schmitt Trigger input functionality.
