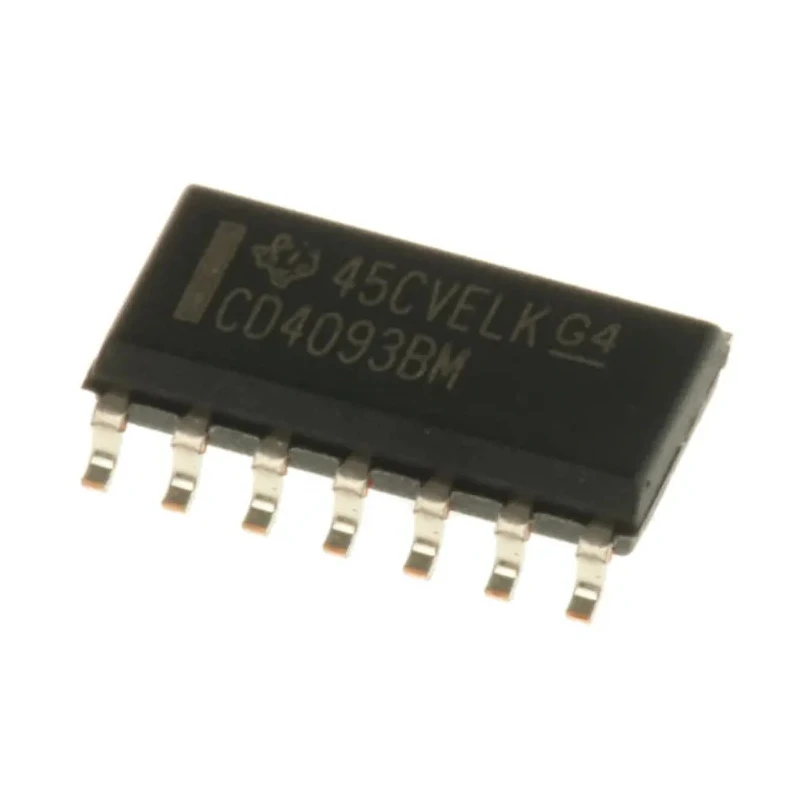

Texas Instruments 4 2-Input NAND Schmitt Trigger Input Logic Gate 14-Pin SOIC CD4093BM

The Texas Instruments CD4093BM is a 4 2-Input NAND Schmitt Trigger Input Logic Gate designed in a 14-Pin SOIC surface mount package. It is part of the 4000 series CMOS logic family, known for CMOS technology benefits including low power consumption and wide voltage operating range.

This device integrates four independent NAND gates, each featuring two Schmitt trigger inputs which provide excellent noise immunity and a clean switching action. The operating voltage ranges broadly from 3 volts to 18 volts allowing robust performance in various electronic circuit designs.

The CD4093BM is suitable for industrial, laboratory, construction, and manufacturing applications demanding reliable digital logic functions. Its compact SOIC package (14 pins) provides easy surface mounting, saving PCB space and enabling automated assembly.

The device offers a maximum propagation delay time of 130 nanoseconds at typical load conditions, facilitating adequate speed for many control and timing circuits. It operates reliably over a wide temperature range from -55°C to 125°C, catering to harsh environments.

Output current capabilities include a maximum high-level output current of -4.2mA and a maximum low-level output current of 4.2mA, ensuring stable output signals. The device also complies with EN 61340-5-1, a standard for electrostatic discharge protection, enhancing durability and reliability.

Four independent 2-input NAND gates with Schmitt trigger inputs. Wide supply voltage range from 3 to 18 volts. Low propagation delay time of 130 nanoseconds. Operating temperature range of -55 to 125 degrees Celsius. 14-pin SOIC surface mount package design.

Output current capability of ±4.2mA. Meets EN 61340-5-1 electrostatic protection standard. This logic gate IC is widely used in electronic component design, electronic circuits manufacturing, and educational projects involving digital logic experiments.
