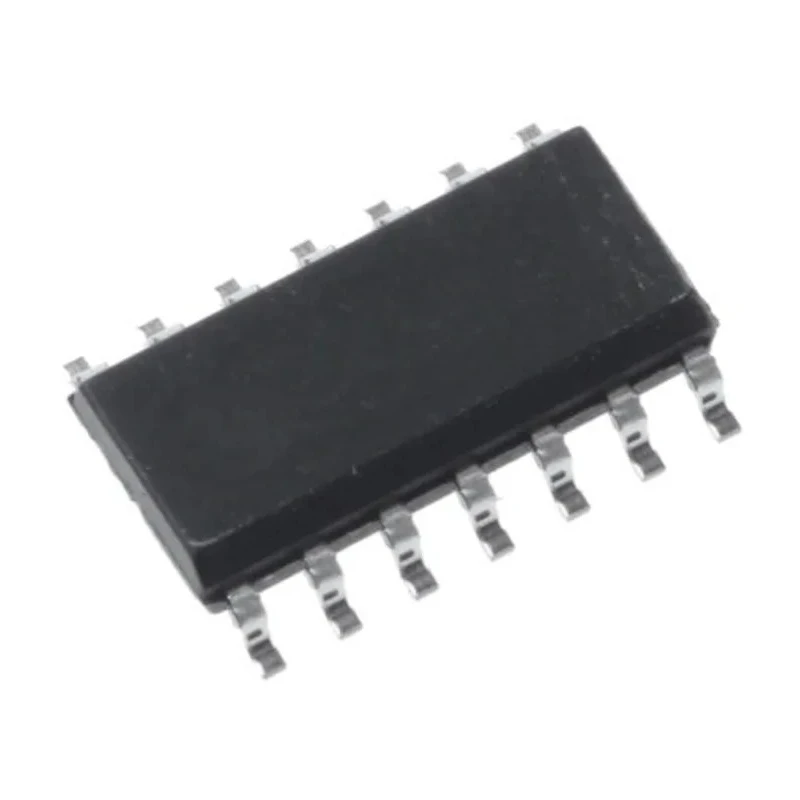

Maxim Integrated Timer Circuit 1 Internal Timer Surface Mount 14-Pin SOIC ICM7556ISD+
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 1.5mm |
| Length | 8.75mm |
| Model | ICM7556ISD+ |
| Mount Type | Surface |
| Series | ICM |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -20°C |
| Pin Count | 14 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 2V |
| Wide supply voltage range | 2-18V |
| Number of Internal Timers | 1 |
| Propagation Delay Test Condition | 10pF |
Key Features
- Features low power CMOS monolithic design for energy efficiency.
- Adjustable duty cycle with no crowbarring during output transition.
- Includes TTL compatible low threshold, trigger, and reset currents.
- Operating temperature range from -20°C to 85°C for industrial reliability.
- Ideal for precision timing, pulse generation, and time delay circuits.
- Compact size with 8.75mm length and 1.5mm height simplifies PCB integration.
- Suitable for pulse width modulation and pulse position modulation applications.
- Designed to operate without automotive standard compliance.
Product Description
Maxim Integrated ICM7556ISD+ Timer Circuit is a monolithic, low power CMOS timing IC designed for precision pulse generation and time delay applications. It features a single internal timer with a 14-Pin SOIC surface mount package, making it suitable for compact electronic devices. Its wide supply voltage range of 2 to 18 V allows for flexible power supply considerations in diverse industrial and commercial electronics.
The timer IC supports adjustable duty cycle functionality without crowbarring of supply during output transitions, enhancing signal integrity in timing circuits. Low threshold, trigger, and reset currents are TTL compatible, ensuring reliable integration with standard digital logic circuits.
This component operates reliably between -20°C and 85°C ambient temperature, making it ideal for industrial and laboratory electronic applications requiring precision timing.
Common uses include pulse generation, pulse width modulation, pulse position modulation, sequential timing, and missing pulse detection. Its compact dimensions (8.75mm length and 1.5mm height) facilitate ease of PCB layout and miniaturized electronic designs.
Low power consumption with CMOS technology. Wide input voltage range from 2 to 18 V. Adjustable duty cycle capability. TTL compatible low current inputs. Robust operating temperature range for industrial use. Compact surface mount SOIC package.
Versatile applications in timer and pulse circuits.
This Timer Circuit is best suited for industrial electronics, control systems, manufacturing equipment, and experimental setups requiring reliable timing solutions. For more Maxim Integrated semiconductor products and related integrated circuits, explore the EnvMart catalog to find compatible components for your design projects.
