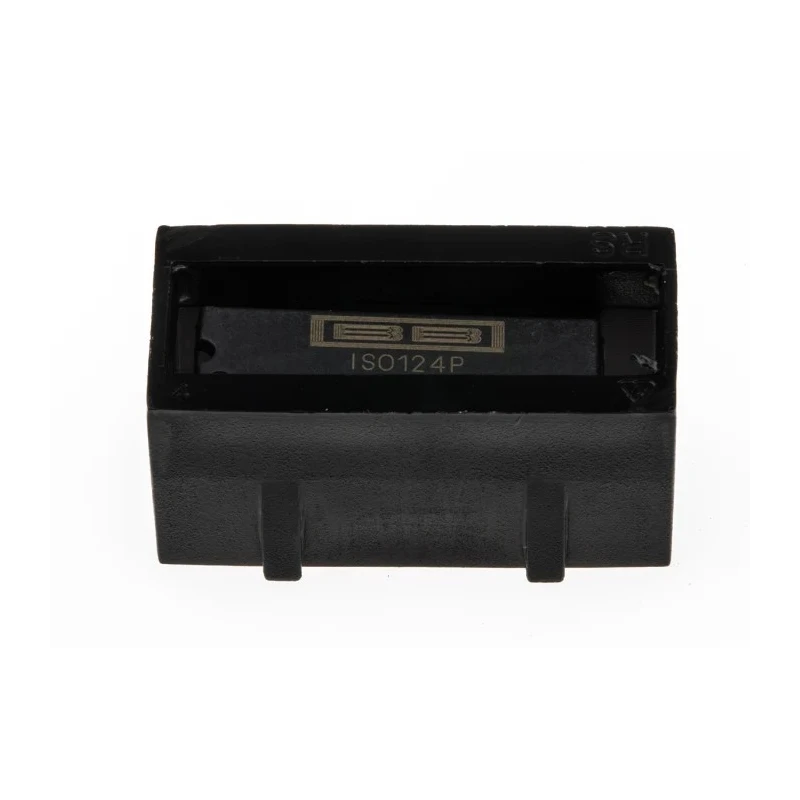

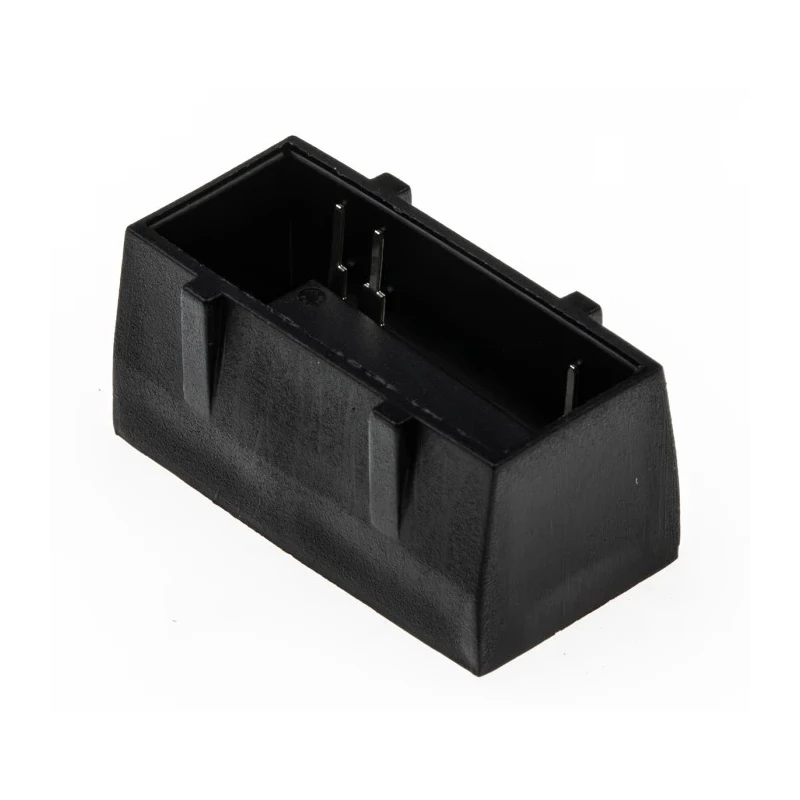

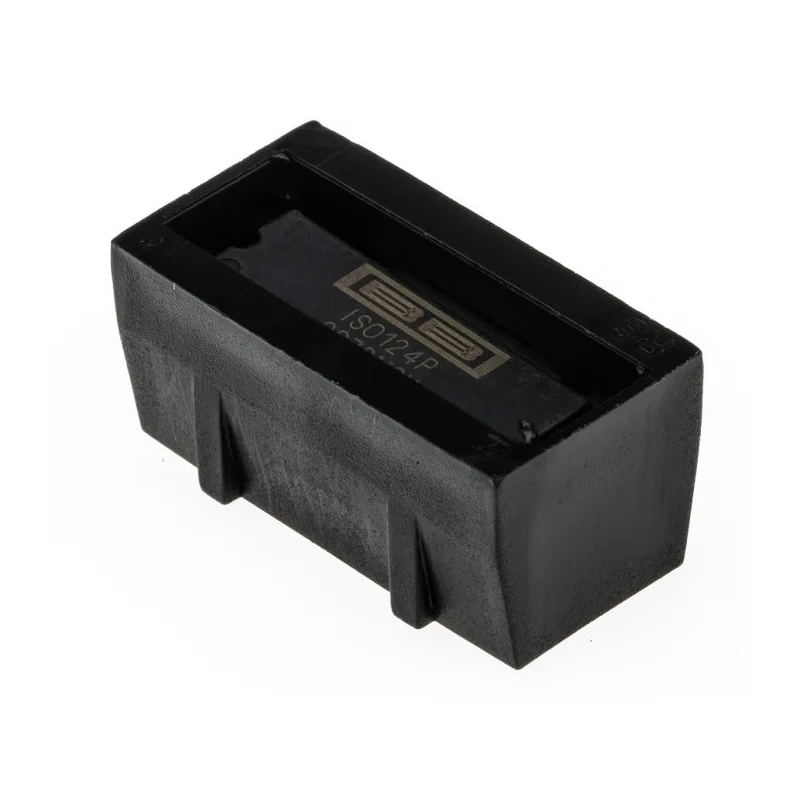

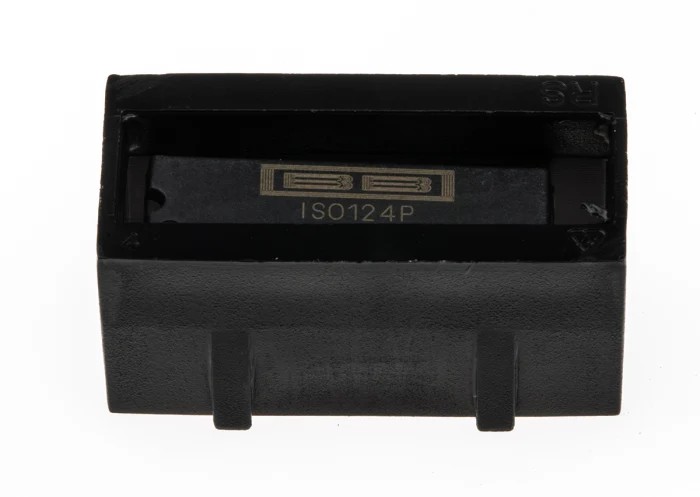

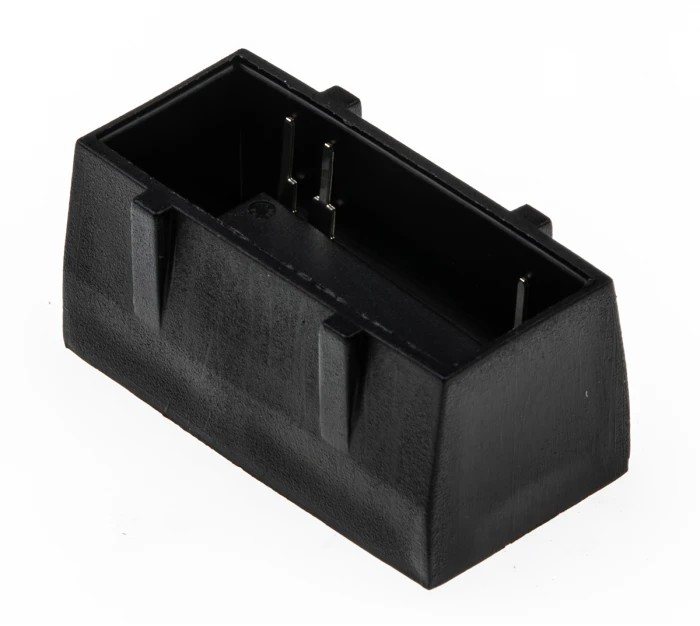

Texas Instruments Isolation Amplifier, 8-Pin 18V PDIP ISO124P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 3.94mm |
| Length | 20.01mm |
| Model | ISO124P |
| Width | 6.61mm |
| Mount Type | Surface |
| Series | ISO124 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -25°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Isolation Voltage | 1500V |
| Minimum Supply Voltage | -18V |
Key Features
- The device operates with a maximum supply voltage of 18V and minimum of -18V.
- Compliant with RoHS standards ensuring environmentally safe manufacture.
- Features a package type of PDIP with 8 pins facilitating easy integration.
- Operates efficiently within temperature ranges from -25°C to 85°C.
- Provides an isolation voltage of 1500V suitable for high voltage applications.
- Not designed for automotive applications, focusing on industrial and electronic component markets.
Product Description
The Texas Instruments ISO124P Isolation Amplifier is a high-precision analog isolator designed for applications requiring reliable signal isolation and high voltage breakdown tolerance. This 8-pin PDIP package amplifier operates at supply voltages up to 18V, providing single-channel isolation with an isolation voltage of up to 1500V.
It is surface mountable and meets RoHS standards, making it compliant with current environmental regulations. The device operates between -25°C to 85°C, suitable for a wide range of industrial and laboratory operating conditions.
With its compact dimensions of 20.01mm length, 6.61mm width, and 3.94mm height, the ISO124P fits into dense PCB layouts. It is ideal for isolation requirements in electronic instrumentation, power supplies, analog signal conditioning, and industrial control systems.
This amplifier is not automotive-certified but is widely used in semiconductor and electronic components for industrial applications requiring high isolation and precision. The device operates with a maximum supply voltage of 18V and minimum of -18V.
Compliant with RoHS standards ensuring environmentally safe manufacture. Features a package type of PDIP with 8 pins facilitating easy integration. Operates efficiently within temperature ranges from -25°C to 85°C. Provides an isolation voltage of 1500V suitable for high voltage applications.
Compact dimensions: length 20.01mm, width 6.61mm, and height 3.94mm. Not designed for automotive applications, focusing on industrial and electronic component markets. Explore a wide selection of Isolation Amplifiers and semiconductor amplifiers at EnvMart for precision industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 18V.
It provides an isolation voltage of 1500V, suitable for high voltage applications.
The compact dimensions are 20.01mm in length, 6.61mm in width, and 3.94mm in height.
It operates efficiently within a temperature range from -25°C to 85°C.
This model features an 8-pin PDIP package type, facilitating easy integration.
Yes, it is compliant with RoHS standards, ensuring environmentally safe manufacture.
This model has a single channel for signal isolation.
The minimum supply voltage is -18V.
No, it is not designed for automotive applications and focuses on industrial and electronic component markets.
It is designed for surface mounting.
It is ideal for isolation requirements in electronic instrumentation, power supplies, analog signal conditioning, and industrial control systems.
The country of origin for this model is India.
