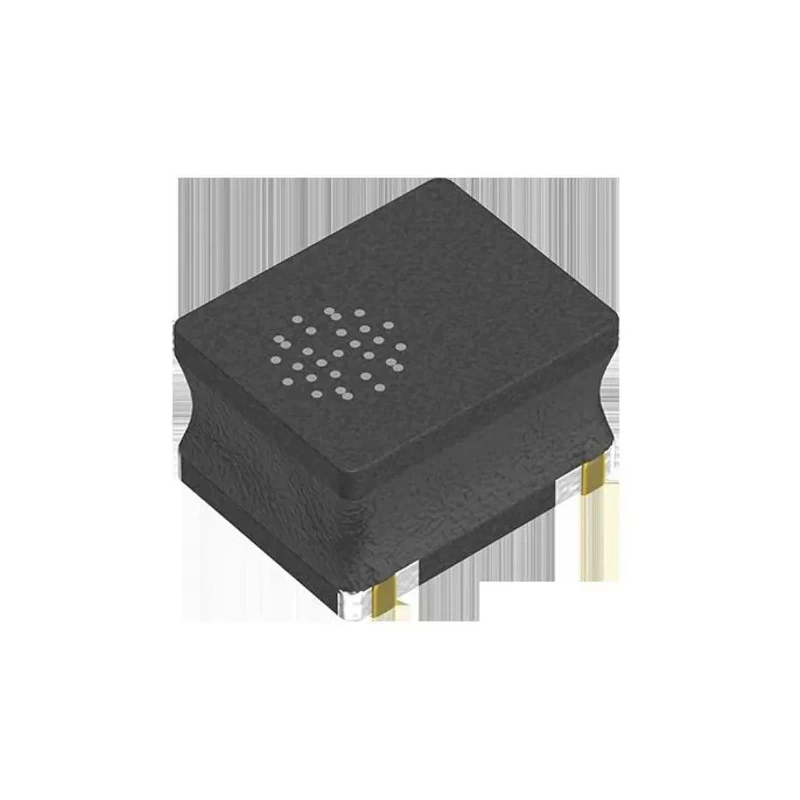

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20%, 0.77 A Idc, 201612 Package VLS201612CX-100M-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 1.2mm |
| Length | 2mm |
| Model | VLS201612CX-100M-1 |
| Depth | 1.6mm |
| Series | VLS-CX-1 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | Halogen Free, Lead Free, REACH, RoHS, SVHC-free |
| Package/Case | 201612 |
| Maximum DC Current | 0.77A |
| Maximum DC Resistance | 540mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Application guides | Smart phones/tablets |
Key Features
- Magnetic shield type wirewound inductor utilizing a ferrite core for enhanced performance.
- Compact 201612 package size with dimensions 2mm length, 1.6mm depth, and 1.2mm height.
- Low maximum DC resistance of 540 mΩ ensuring efficient current flow.
- Rated maximum operating temperature of 105°C and minimum temperature of -40°C.
- Compliance with halogen free, lead free, REACH, RoHS, and SVHC-free environmental standards.
- Designed for surface mount termination enabling high-density PCB mounting.
- Optimized ferrite core enables higher current capacity and lower resistance.
- Applications include smartphones, tablets, HDDs, SSDs, digital cameras, portable devices, and power supply modules.
Product Description
TDK VLS201612CX-100M-1 is a shielded wirewound surface mount inductor featuring a ferrite core, offering an inductance of 10 μH with a tolerance of ±20% and capable of handling a maximum DC current of 0.77 A. Designed in a compact 201612 package (2 mm length, 1.6 mm depth, 1.2 mm height), it supports surface mount termination for integration into high-density circuit boards.
This inductor boasts a low maximum DC resistance of 540 mΩ, ensuring minimal power loss and efficient current conduction. It operates safely within a temperature range from -40°C to 105°C and meets environmental standards including halogen-free, lead-free, REACH, RoHS, and SVHC-free compliance.
The magnetic shield construction and ferrite core material optimize performance and allow for increased current capacity. Its wirewound construction is ideal for power circuits demanding reliability and compactness.
TDK's VLS201612CX-100M-1 is extensively used in a variety of electronics such as smartphones, tablets, hard disk drives, solid-state drives, digital video and still cameras, mobile display panels, portable game devices, and compact power supply modules.
Engineered for demanding industrial and consumer electronics applications, this surface mount inductor supports compact design needs while maintaining high electrical performance and thermal reliability.
Magnetic shield type wirewound inductor utilizing a ferrite core for enhanced performance. Compact 201612 package size with dimensions 2mm length, 1.6mm depth, and 1.2mm height. Low maximum DC resistance of 540 mΩ ensuring efficient current flow.
Rated maximum operating temperature of 105°C and minimum temperature of -40°C. Compliance with halogen free, lead free, REACH, RoHS, and SVHC-free environmental standards. Designed for surface mount termination enabling high-density PCB mounting.
Optimized ferrite core enables higher current capacity and lower resistance. Applications include smartphones, tablets, HDDs, SSDs, digital cameras, portable devices, and power supply modules. Explore more Surface Mount Inductors and related components for electronics manufacturing and design at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10 μH with a tolerance of ±20%.
It can handle a maximum DC current of 0.77 A.
The dimensions of the 201612 package are 2 mm in length, 1.6 mm in depth, and 1.2 mm in height.
The inductor operates within a temperature range of -40°C to 105°C.
The maximum DC resistance is 540 mΩ, ensuring efficient current flow.
This inductor utilizes a ferrite core for its construction, enhancing performance.
It complies with halogen-free, lead-free, REACH, RoHS, and SVHC-free environmental standards.
It features a surface mount termination style, suitable for high-density PCB mounting.
This inductor is suitable for applications in smartphones, tablets, HDDs, SSDs, digital cameras, and portable devices.
This model belongs to the VLS-CX-1 series of inductors.
It features a wirewound construction, which is ideal for power circuits.
The country of origin for this model is China.
