AKER 12 MHz Crystal ±30 ppm HC-49 2-Pin Surface Mount, 13.5 mm x 4.8 mm x 4.6 mm CAA-12.000-18-3050-X

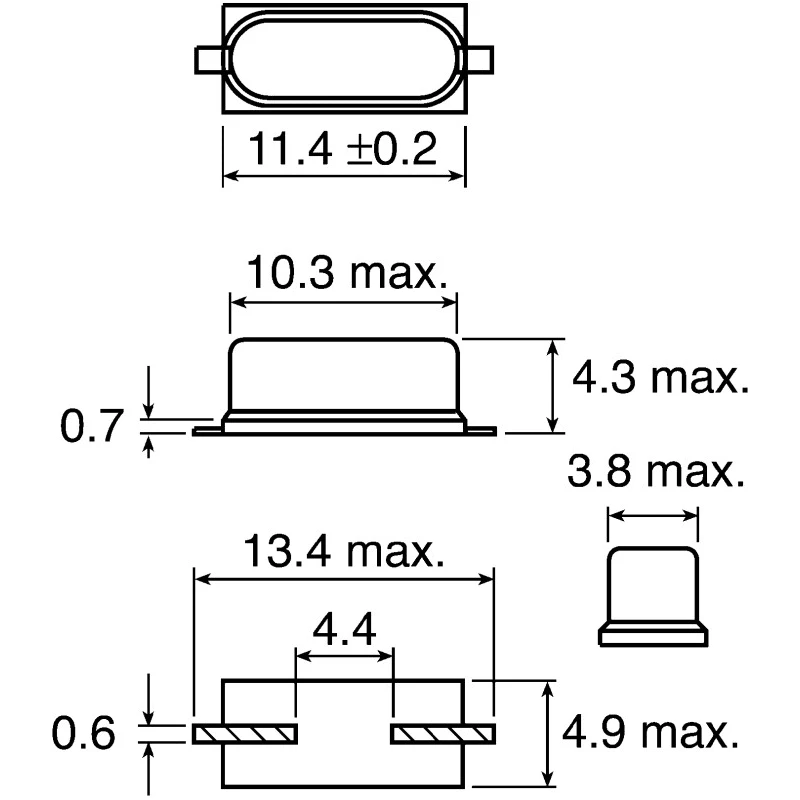

AKER CAA-12.000-18-3050-X 12 MHz Crystal is engineered for high precision in electronic frequency control applications. It features a frequency tolerance of ±30 ppm, suitable for timing-sensitive devices and ensures stable performance across a broad temperature range from -40°C to 85°C. The crystal uses a surface mount HC-49 package with a metal case, providing robustness and compact size, measuring 13.5 mm in length, 4.8 mm in width, and 4.6 mm in height.

This crystal's load capacitance of 18 pF is matched to typical circuit designs, minimizing signal distortion. Its series resistance value of 50 Ω facilitates efficient oscillation with low power loss. The product is compliant with RoHS standards, supporting environmentally friendly manufacturing processes. Packaging is delivered in tape and reel format, optimized for high-volume automated PCB assembly lines.

The crystal unit has 2 pins for secure PCB mounting, making it ideal for a variety of electronic devices including communication equipment, industrial controls, and consumer electronics. Manufactured under the CAA series, it ensures consistent quality and reliability.

Standard frequency of 12 MHz ensures precise timing control. Frequency tolerance of ±30 ppm supports accurate signal stability. Surface mount type with HC-49 metal case for reliable installation. Compact dimensions: length 13.5 mm, width 4.8 mm, height 4.6 mm.

Load capacitance of 18 pF to match circuit requirements. Operating temperature range from -40°C to 85°C for extended reliability. Series resistance of 50 Ω ensures minimal signal loss. RoHS compliant, meeting environmental standards.

Supplied in tape and reel packaging for automated assembly. Equipped with 2 pins for easy PCB mounting.

This crystal unit is commonly used in industrial, communication, and manufacturing electronics where precision timing and frequency control are critical. Shop AKER crystal units at EnvMart for high-quality components suitable for prototyping and production environments.
