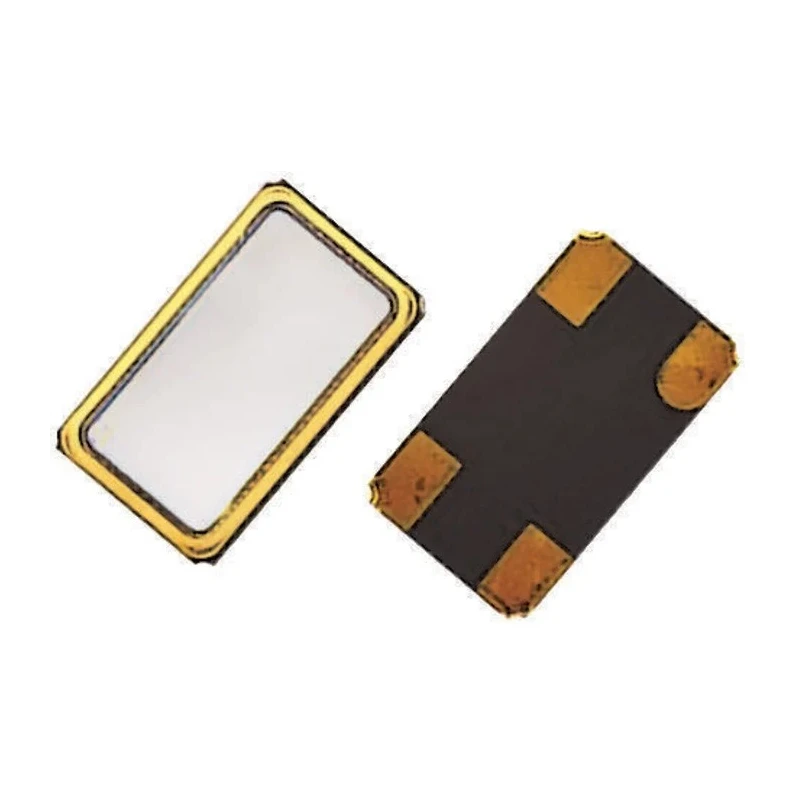

AKER 14.3182 MHz Crystal ±30 ppm Surface Mount 4-Pin Ceramic Case C6S-14.31818-12-3030-X
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | AKER |
| Height | 1mm |
| Length | 6mm |
| Model | C6S-14.31818-12-3030-X |
| Packaging | Tape & Reel |
| Width | 3.5mm |
| Mount Type | Surface |
| Series | C6S |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 14.3182MHz |
| Load Capacitance | 12pF |
| Series Resistance | 60Ω |
Key Features
- The crystal operates at a standard frequency of 14.3182 MHz.
- It features a 4-pin configuration ideal for surface mounting on PCBs.
- Encased in a ceramic package measuring 6 mm length, 3.5 mm width, and 1 mm height.
- Designed for reliable operation across a temperature range of -40°C to 85°C.
- It has a load capacitance of 12 pF, suited for stable oscillation circuits.
- The series resistance is rated at 60 ohms ensuring efficient signal quality.
- The product complies with RoHS standards, ensuring environmentally safe manufacturing.
- Packaged in tape and reel format for efficient automated assembly.
Product Description
AKER C6S-14.31818-12-3030-X is a precision 14.3182 MHz crystal designed for surface mount applications in electronic devices. The crystal features a 4-pin layout in a ceramic case sized 6 mm by 3.5 mm by 1 mm, facilitating compact PCB integration.
This crystal provides excellent frequency stability and tolerance of ±30 ppm, essential for timing-sensitive circuits used in communications, computing, and consumer electronics. It supports a load capacitance of 12 pF and maintains stable operation over a wide temperature range from -40°C to 85°C, making it suitable for industrial and automotive environments.
The series resistance of 60 ohms ensures minimal signal loss and high quality oscillation performance. Certified to meet RoHS guidelines, this component supports environmentally conscious manufacturing practices.
Packaged in tape and reel format, the C6S crystal is optimized for automated SMT production lines, enhancing manufacturing efficiency. Its compact size and robust specifications make it ideal for industrial, laboratory, and commercial electronic applications requiring precise frequency control.
The crystal operates at a standard frequency of 14.3182 MHz. It features a 4-pin surface mount configuration. Compact ceramic package with dimensions 6x3.5x1 mm. Frequency tolerance and stability of ±30 ppm. Operating temperature range from -40°C to 85°C.
Load capacitance of 12 pF for stable oscillator circuits. Series resistance rated at 60 Ω for quality signal output. RoHS compliant for environmental safety. Packaged in tape and reel for SMT assembly. Explore the Electronics & Electricals category at EnvMart for more precision crystal units and related components to complete your device design and manufacturing needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The crystal operates at a standard frequency of 14.3182 MHz.
The ceramic package measures 6 mm in length, 3.5 mm in width, and 1 mm in height.
It has a load capacitance of 12 pF, which is suited for stable oscillation circuits.
The crystal operates reliably over a temperature range of -40°C to 85°C.
This model features a 4-pin configuration, ideal for surface mounting on PCBs.
The series resistance is rated at 60 ohms, ensuring efficient signal quality.
Yes, it complies with RoHS standards, ensuring environmentally safe manufacturing.
It is packaged in tape and reel format, optimized for automated SMT production lines.
The model number is C6S-14.31818-12-3030-X.
It is suitable for timing-sensitive circuits used in communications, computing, and consumer electronics.
This crystal has a frequency tolerance of ±30 ppm, which is essential for maintaining frequency stability in various applications.
The country of origin for this crystal is Taiwan.
