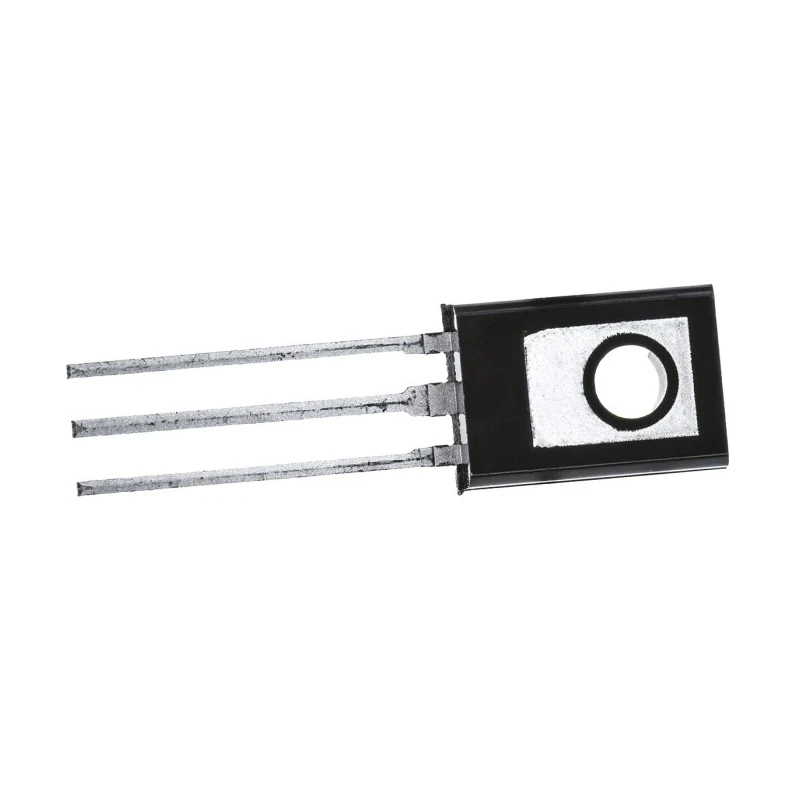

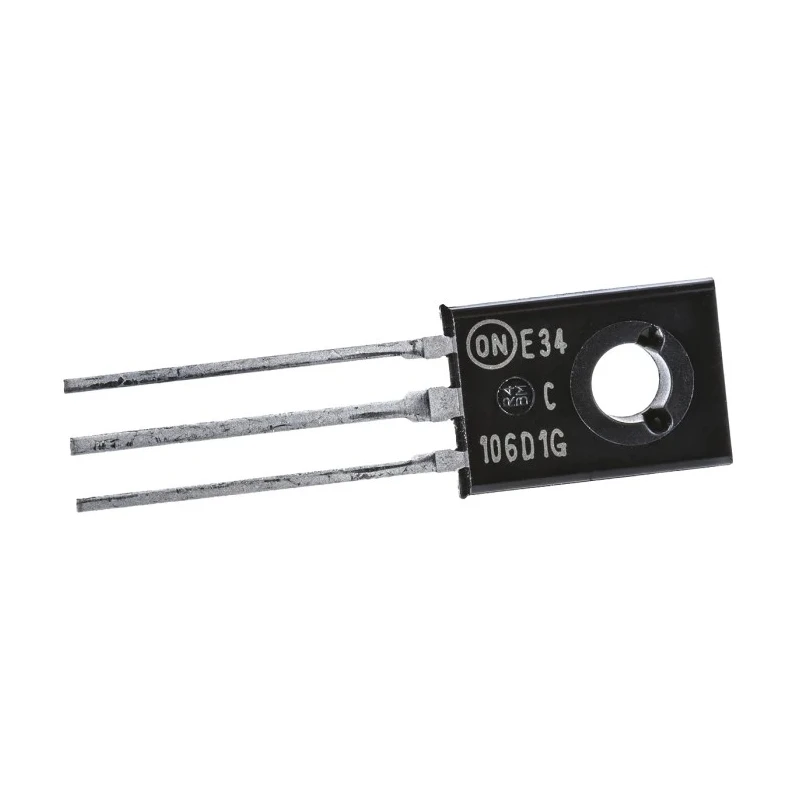

Littelfuse Sensitive Gate Silicon Controlled Rectifier SCR, 600 V, 4 A, Surge Current 20 A, Gate Current 200 μA C106D1G
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Model | C106D1G |
| Mount Type | Chassis, Lead |
| Series | C106 |
| Maximum Operating Temperature | 110°C |
| Package Type | TO-225 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 4A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 20A |
| Maximum Gate Trigger Current Igt | 200μA |
| Maximum Holding Current Ih | 6mA |
| Maximum Gate Trigger Voltage Vgt | 1V |
| Peak On-State Voltage | 2.2V |
| Repetitive Peak Off-State Current | 0.01mA |
| onsemi C106D1, Thyristor 400V, 2.55A 0.5mABrand | ON Semiconductor |
Key Features
- The device supports a repetitive peak reverse voltage of 600 volts.
- It has a surge current rating of 20 amperes suitable for transient conditions.
- The maximum gate trigger current is 200 microamperes ensuring sensitive triggering.
- Operating temperature ranges from -40°C to a maximum of 110°C.
- The SCR package type is TO-225 with a chassis and lead mount format.
- It features a peak on-state voltage of 2.2 volts to minimize conduction losses.
- The device holds a low maximum holding current of 6 milliamperes for efficient latching.
- It contains 3 pins for discrete control and conduction.
Product Description
The Littelfuse C106D1G is a Sensitive Gate Silicon Controlled Rectifier (SCR) designed for robust and reliable switching in power electronics. It operates at a maximum repetitive peak reverse voltage of 600 volts and can handle an average on-state current of 4 amperes, making it ideal for various industrial electronic applications.
This SCR includes a surge current rating of 20 amperes to tolerate transient surges common in power systems. Its sensitive gate design requires a minimal trigger current of 200 microamperes and a gate voltage of just 1 volt, facilitating easy and precise control in switching circuits.
Designed with a TO-225 package suitable for chassis and lead mounting, the device features three pins to accommodate gate, anode, and cathode terminals. It holds a peak on-state voltage of 2.2 volts, ensuring energy-efficient conduction with minimal losses and a holding current of just 6 milliamperes for stable operation once triggered.
The operational temperature range spans from -40°C to 110°C, offering suitability for diverse environmental conditions seen in industrial, manufacturing, and power control applications. Its low repetitive peak off-state current of 0.01 milliamperes contributes to reduced leakage currents, improving overall circuit efficiency.
Littelfuse’s C106D1G SCR is widely used in industrial electronic control systems, power supplies, motor control applications, phase control circuits, and other devices requiring controlled rectification and fast switching capabilities.
The device package is TO-225 for sturdy mounting options. The sensitive gate feature enables low gate drive current operation. Offers robust surge current tolerance up to 20A. Wide operating temperature for harsh industrial environments.
Low trigger current and voltage enhance gate control precision. Minimized conduction losses promote energy efficiency. Suitable for phase control in power electronics. Three pins for simplified connections in applications.
Reliable and durable semiconductor device compliant with industry standards. Explore more high-quality semiconductor devices and electronic components on EnvMart to empower your industrial and electronic projects with trusted performance and precision.
Explore more products in our Thyristors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum repetitive peak reverse voltage of this SCR is 600 volts.
This model has a surge current rating of 20 amperes, suitable for transient conditions.
The rated average on-state current for this SCR is 4 amperes.
The maximum gate trigger current is 200 microamperes, and the maximum gate trigger voltage is 1 volt.
The operating temperature range spans from -40°C to a maximum of 110°C.
This SCR uses a TO-225 package type, suitable for chassis and lead mounting.
This model features a pin count of 3, accommodating gate, anode, and cathode terminals.
The peak on-state voltage of this SCR is 2.2 volts, which helps minimize conduction losses.
The maximum holding current for this SCR is 6 milliamperes.
The repetitive peak off-state current is 0.01 milliamperes, contributing to reduced leakage currents.
This model is classified as a Sensitive Gate Silicon Controlled Rectifier (SCR).
The Littelfuse C106D1G is suitable for industrial electronic control systems, power supplies, motor control applications, and phase control circuits.
