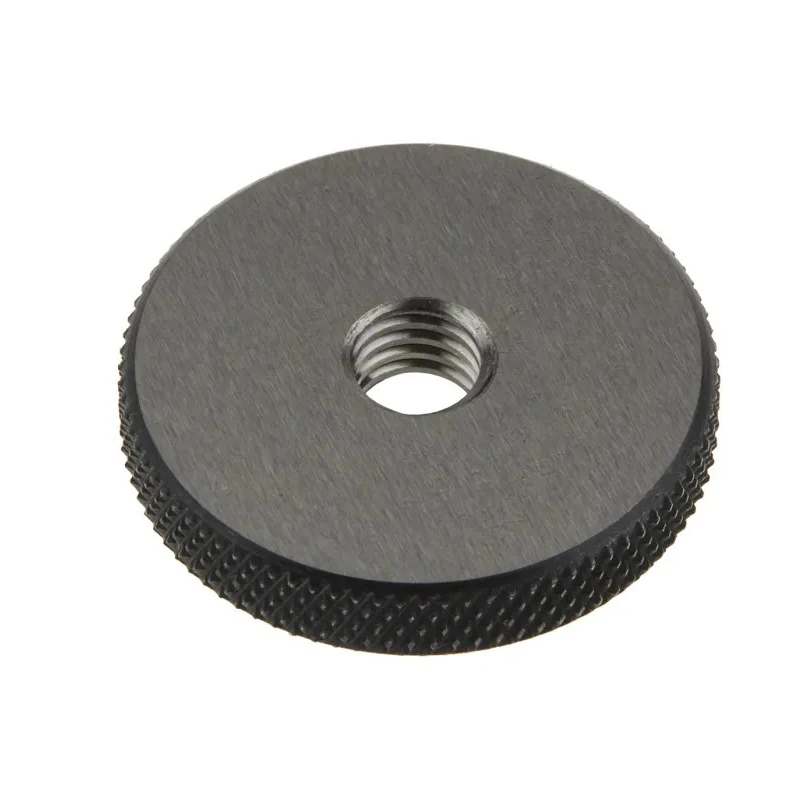

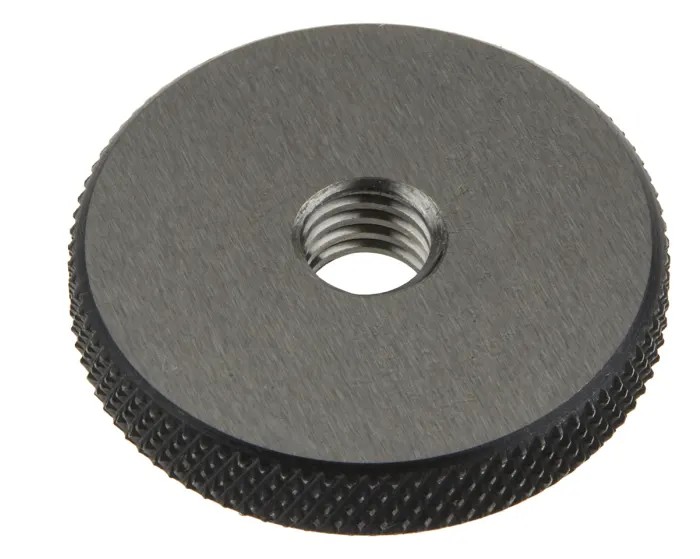

Volkel M8 x 1.25 Ring Gauge, 1.25 mm Pitch Diameter, Metric, Tapered, DIN ISO 1502 16338

Volkel 16338 M8 x 1.25 Ring Gauge is a precision-engineered metric ring gauge designed for accurate thread inspection. It features a tapered design and a 1.25 mm pitch diameter, compliant with DIN ISO 1502 standards, ensuring reliable measurement in mechanical engineering and quality control processes.

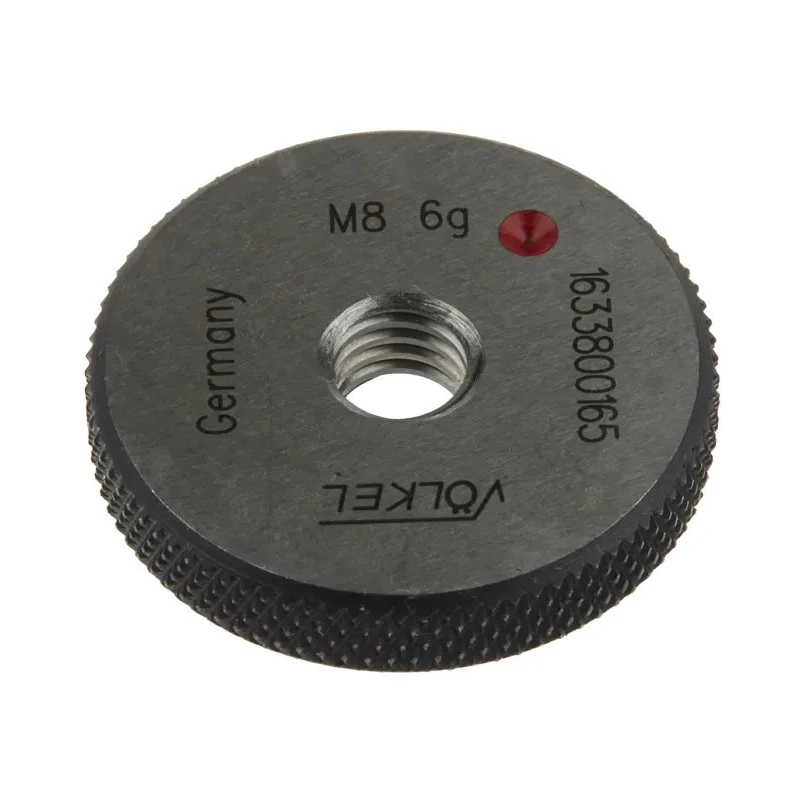

The No-Go ring gauge is calibrated in a measurement laboratory using IAC thread scanners, guaranteeing high precision. This gauge is marked in red for clear identification as a No-Go gauge and must not be screwed into the part by hand beyond two threads to maintain inspection accuracy. The reference temperature for both parts and gauge is 20°C, ensuring consistent measurement conditions.

Manufactured from high-grade raw materials, the gauge offers excellent durability and reliability for repeated use. Its compact and rugged design makes it easy to handle in industrial and laboratory environments.

Applications for this ring gauge span various industries, including mechanical machinery manufacturing, engineering test and measurement, quality assurance, and inspection tasks. It serves as a critical tool for verifying the accuracy of threaded components, ensuring thread fit within specified tolerances, and maintaining product quality.

This ring gauge is calibrated using IAC thread scanners for maximum accuracy. The red marking identifies it as a No-Go gauge to prevent improper use. Usage limits the screwing into parts to two threads for measurement integrity.

Designed to operate at a standard reference temperature of 20°C. Constructed from durable, high-quality raw materials. Complies with DIN ISO 1502 standards for thread gauges. Compact, rugged, and easy to use in industrial settings.

Widely employed in engineering, manufacturing, and quality control processes. Explore our extensive range of precision measuring tools and Gauges at EnvMart for your industrial and engineering needs.
