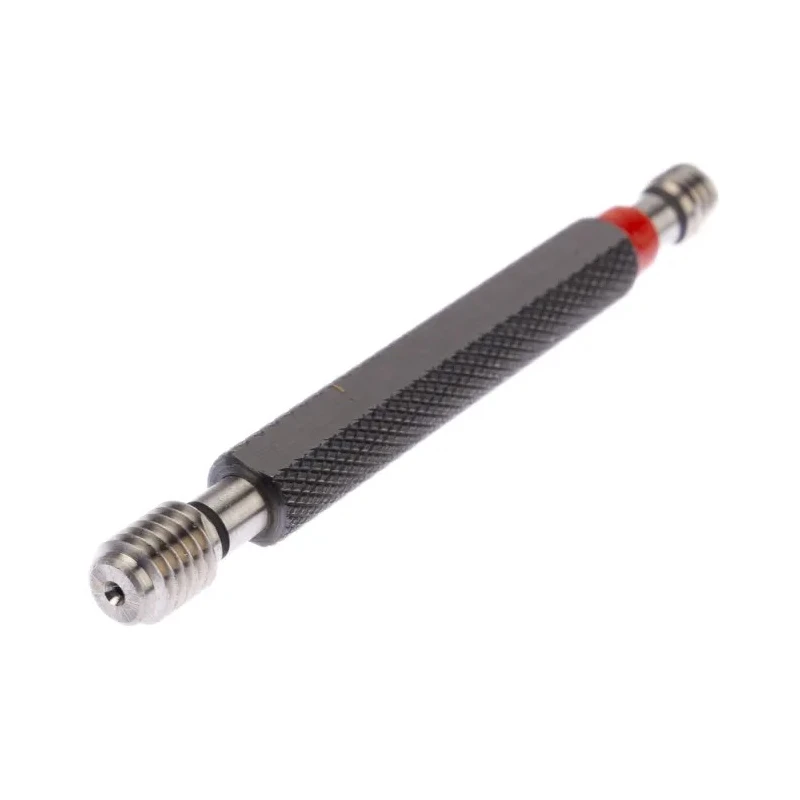

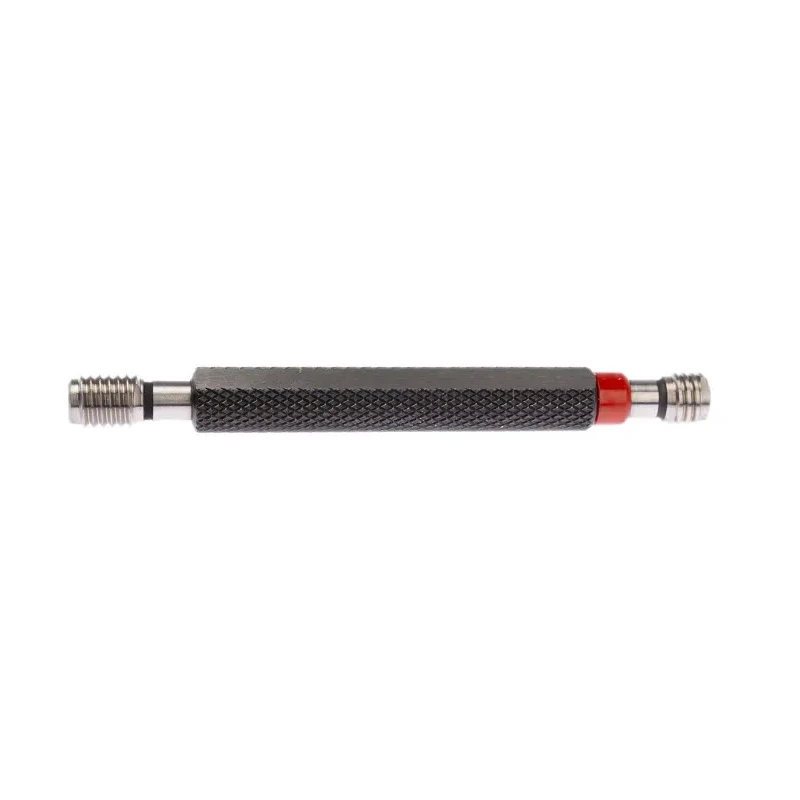

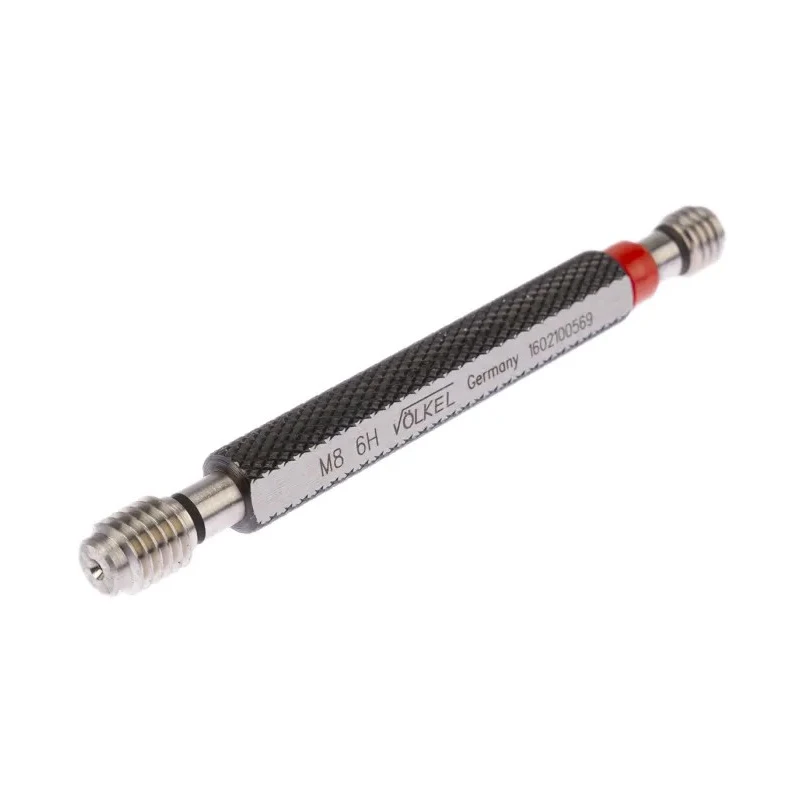

Volkel M8 x 1.25 Plug Thread Plug Gauge 1.25 mm Pitch Diameter 16021

Volkel 16021 Plug Thread Plug Gauge M8 x 1.25 is an essential inspection tool used in engineering and manufacturing to ensure threaded components meet strict dimensional standards. This double-ended gauge measures the go and no-go conditions of M8 x 1.25 threads, with a pitch diameter of 1.25 mm. It is tapered and adheres to DIN ISO 1502 standards with a 6h tolerance, providing high precision for quality assurance.

The gauge is made from premium-grade material, guaranteeing durability and long service life. Calibration is performed in specialized measurement laboratories using IAC thread scanners, assuring trustworthy performance and repeatability at a reference temperature of 20°C.

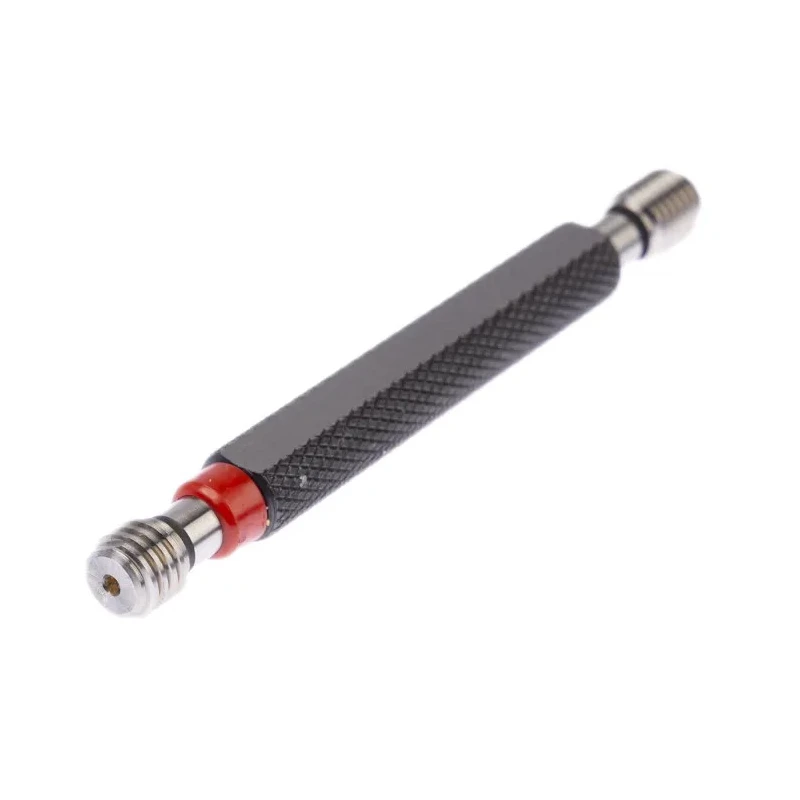

The no-go end is distinctly marked with a red ring for easy identification during inspections, and the gauge must screw into the part by hand more than two threads to verify compliance with required tolerances.

This tool suits a wide range of industrial applications including manufacturing quality control, mechanical engineering, and laboratory testing. It offers ruggedness and compactness making it practical for workshop use, enabling precise thread measurement with minimal effort.

This gauge conforms to DIN ISO 1502 standards and features Metric 6h tolerance for high precision. It is a double-ended, tapered plug gauge designed to verify the go/no-go condition of threaded parts. Manufactured from high-quality raw material, ensuring durability and reliability.

The gauge is calibrated in a measurement laboratory using IAC thread scanners for accuracy. The no-go side is marked with a red ring to differentiate from the go side. Ideal for industrial and manufacturing quality inspection applications.

Easy to use by hand, ensuring that the gauge screws in at least two full threads for acceptance. Compact and robust design suited for repeated use in workshop environments. Comes with country of origin Germany, affirming premium build quality.

The Volkel 16021 Plug Thread Plug Gauge is a reliable and precise choice for inspectors and engineers, ensuring only compliant threaded components are accepted while defective parts are efficiently rejected. Browse EnvMart for more precision measuring tools and industrial inspection gauges.
