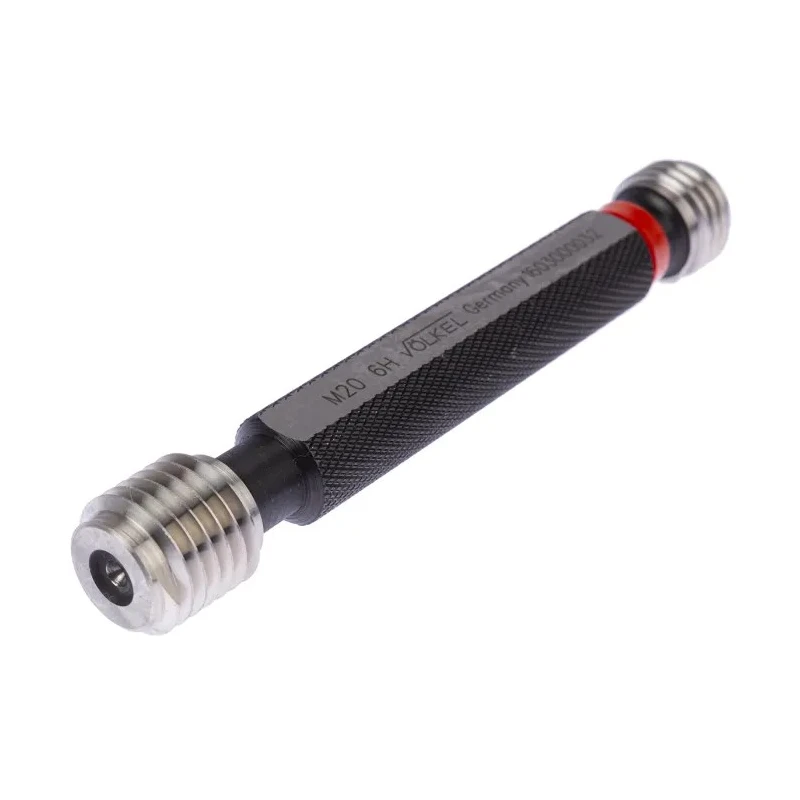

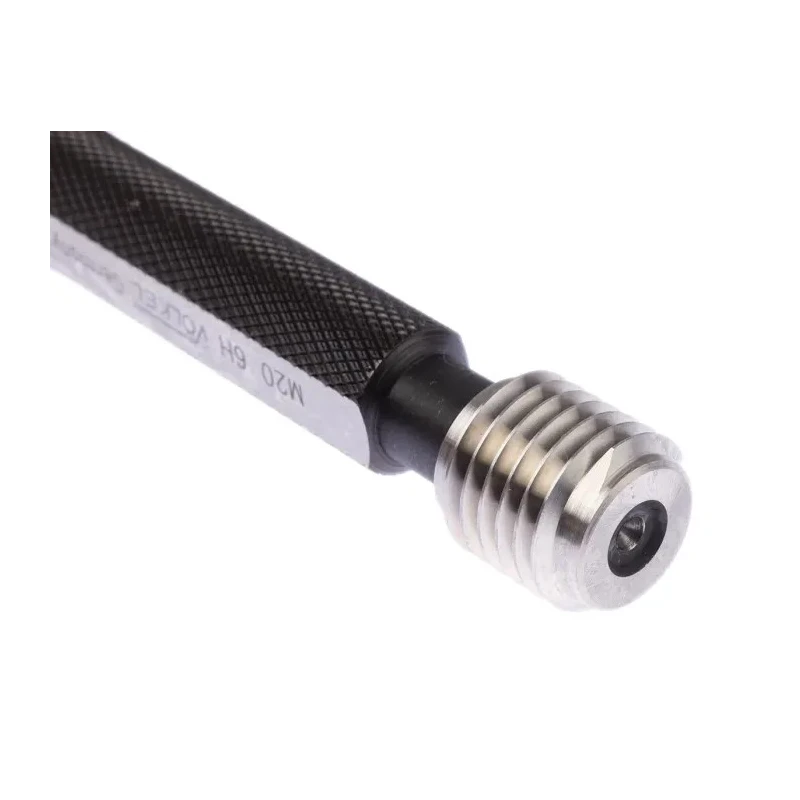

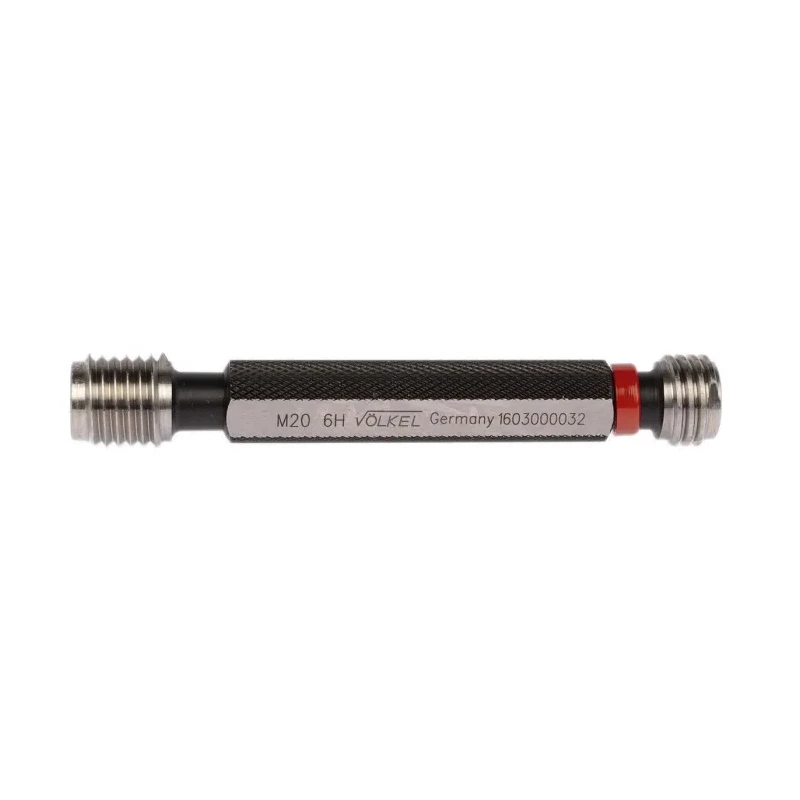

Volkel M20 x 2.5 Plug Thread Go No-Go Gauge Tapered Double Ended 6h Tolerance 16030

Volkel 16030 Plug Thread Gauge M20 x 2.5 is a precision calibrated metric tapered plug gauge used for inspection of internal threads conforming to DIN ISO 1502 standards. It combines both go and no-go plug gauges in one double ended tool, providing a reliable method to verify thread dimensions on M20 x 2.5 metric size threads with a pitch diameter of 2.5 mm and 6h tolerance.

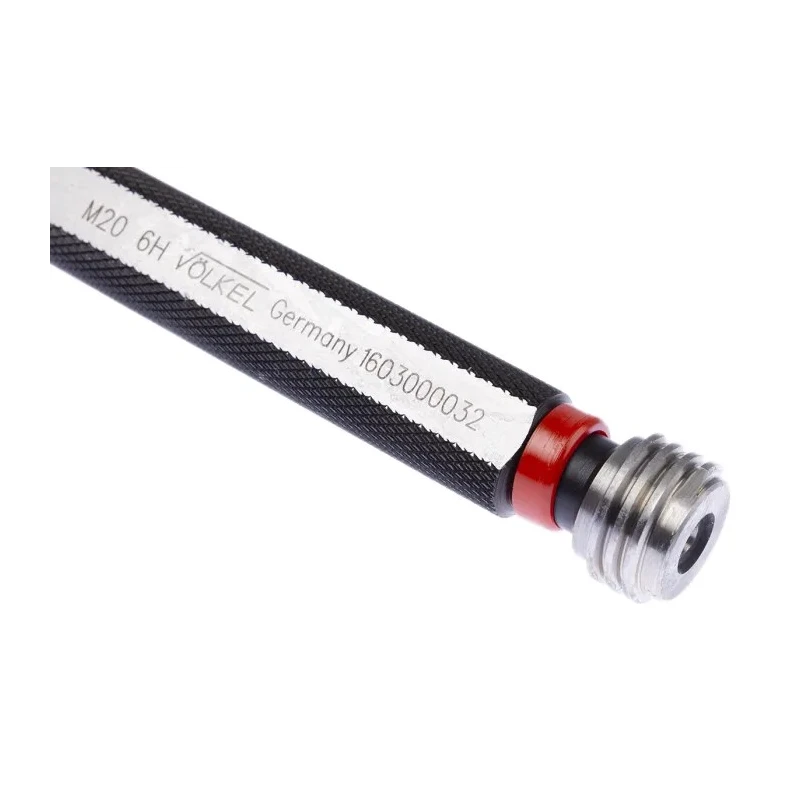

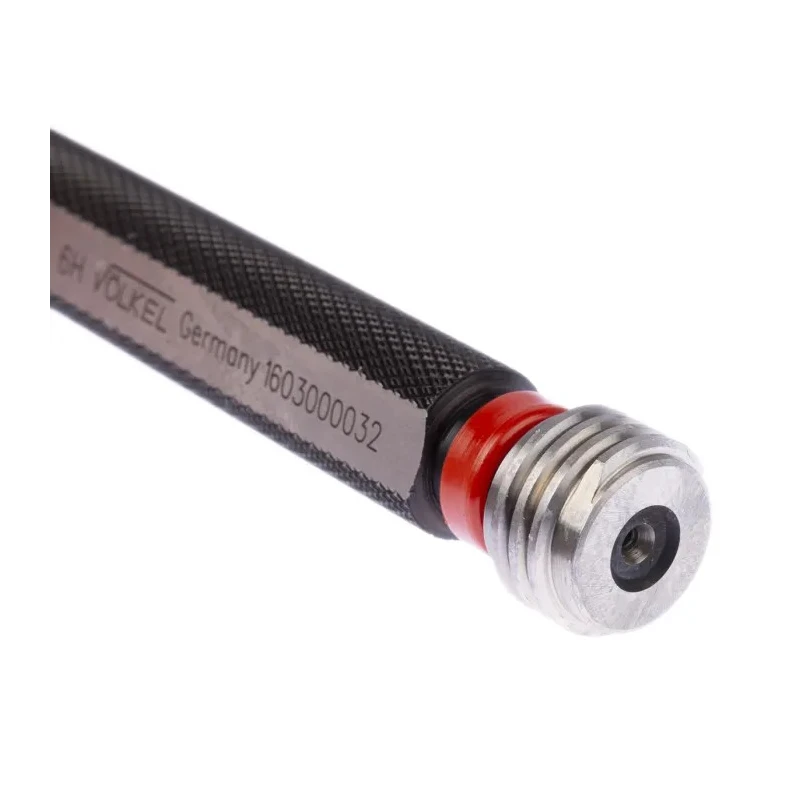

Manufactured from high-quality raw materials, this gauge offers high durability and consistent performance in industrial environments. The scrap (no-go) side is clearly marked with a red ring to facilitate easy identification during inspection processes. Calibration is carried out at authorized measurement laboratories using IAC thread scanners, ensuring precise measurement accuracy at the reference temperature of 20°C.

This gauge must be manually screwed into the thread to verify fit; the ability to screw more than two threads indicates conformity to the size and tolerance specifications. Its compact and rugged design enables easy handling and use on shop floors, in engineering test and measurement applications, as well as quality control in manufacturing industries.

Typical use cases include industrial quality assurance, engineering inspection labs, manufacturing process control, and maintenance departments requiring quick and dependable thread verification tools. The double ended design increases utility by combining the go and no-go gauges into one compact device.

Metric measurement system ensuring compatibility with standard metric threads. Conforms to DIN ISO 1502 and DIN 13/DIN 2240 standards for thread accuracy. 6h tolerance for precise thread inspection accuracy and reliability.

High durability and resistance to wear due to quality raw material construction. Compact size and rugged build for comfortable industrial manual use. Double ended gauge combining go and no-go sides for comprehensive testing.

Calibrated using state-of-the-art IAC thread scanning technology. Markings on the scrap side facilitate quick identification. Ideal for workshop, manufacturing, laboratory, and inspection use cases.

For professionals seeking accurate and certified thread gauging tools for M20 x 2.5 metric threads, the Volkel 16030 plug thread gauge represents a trusted solution. Explore related gauges and precision measuring instruments in our Industrial Tools & Equipment catalog at EnvMart.
