Volkel M6 x 1 Tapered Ring Gauge, 1 mm Pitch Diameter 6g Tolerance 16336

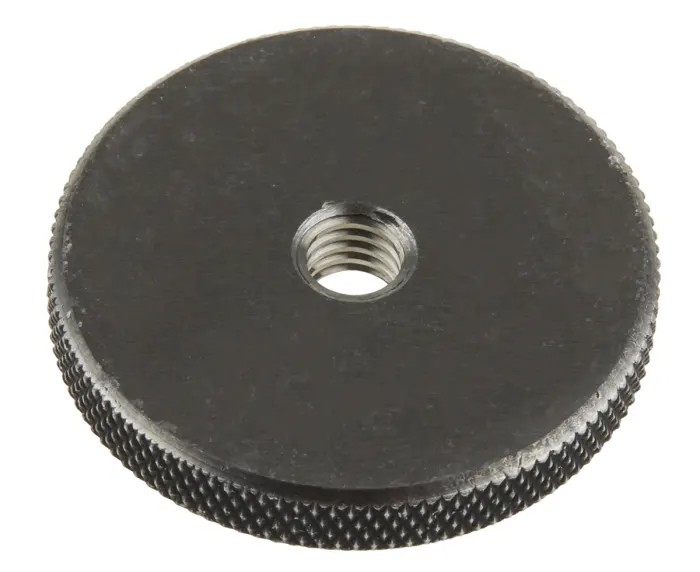

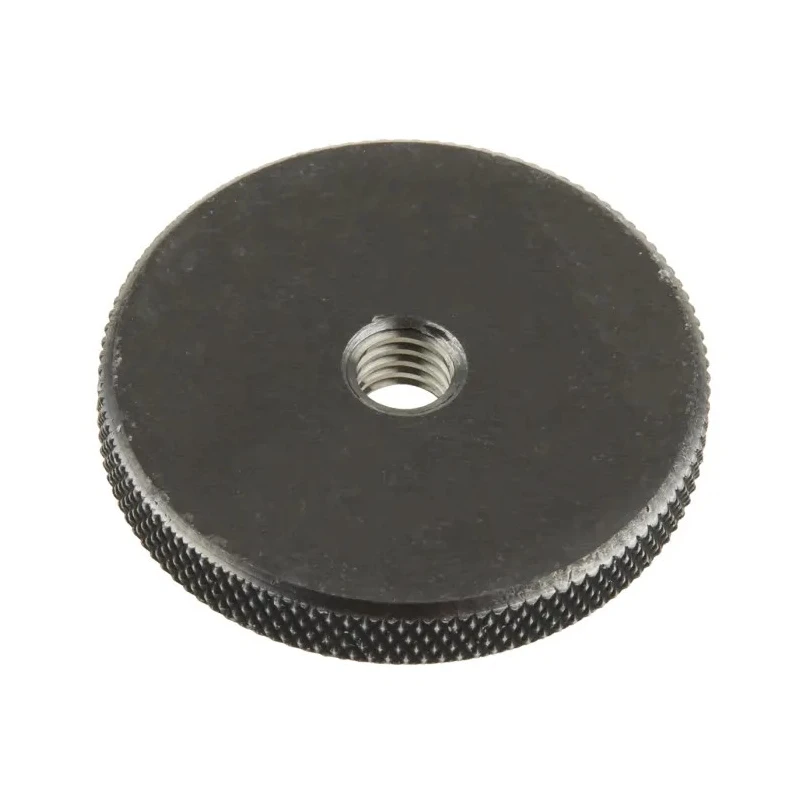

Volkel 16336 is a tapered ring gauge designed for M6 x 1 metric thread with a pitch diameter of 1 mm and 6g gauge tolerance. This No-Go ring gauge is manufactured in Germany and complies with DIN ISO 1502 standards, ensuring precision and reliability in industrial inspection tasks.

The ring gauge is mainly used as a quality control tool to verify that the external threads on parts conform to required dimensions without exceeding tolerance limits. Its compact, rugged construction and high-quality raw materials provide excellent durability and long-term performance in demanding manufacturing and engineering environments.

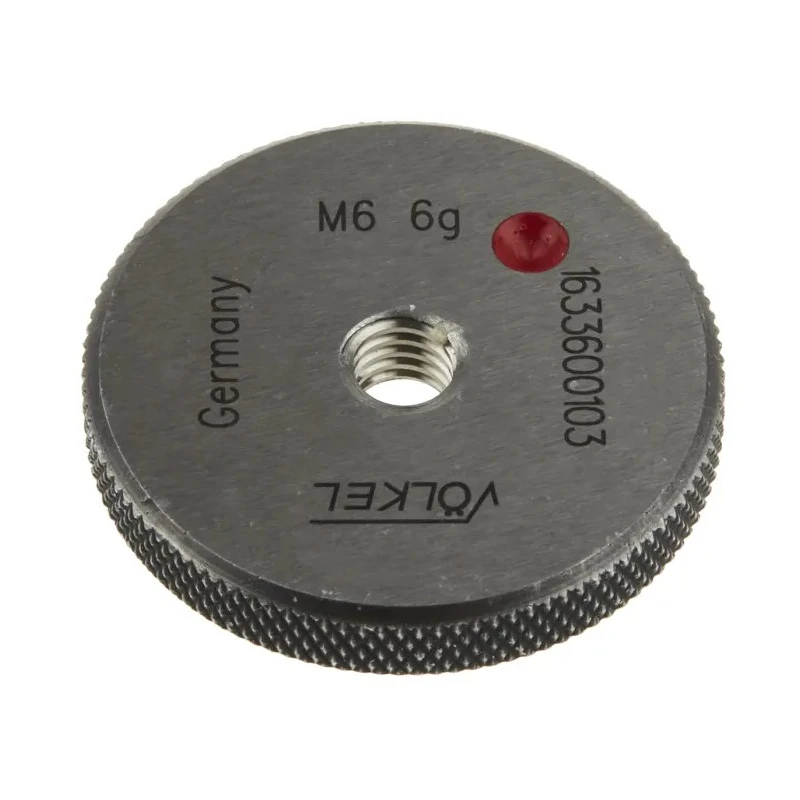

The gauge is calibrated using IAC thread scanners in specialized measurement laboratories to ensure consistent accuracy. The No-Go gauge is marked in red to distinguish it from other gauges, preventing misuse during inspection processes.

To maintain measurement integrity, this ring gauge must not screw into the part by more than two threads by hand. The inspection is performed at a standard reference temperature of 20°C for both parts and gauges to ensure reliable dimensional validation.

The gauge features a metric measurement system with M6 x 1 thread size. Tapered design with 6g tolerance improves measurement precision. Marked red for easy identification as a No-Go gauge. Manufactured with high-quality raw materials for durability.

Calibrated under DIN ISO 1502 standards with measurement laboratory certification. Compact and rugged for ease of use in industrial settings. Suitable for inspection tasks in manufacturing, quality control, and engineering industries.

This Volkel ring gauge is excellent for industrial quality assurance, construction, mechanical engineering, and manufacturing laboratories. It helps maintain compliance with international standards and improves the accuracy of threaded components inspection. Explore further ring Gauges and measurement tools to complement your quality control toolkit in EnvMart's Industrial Tools & Equipment section.
