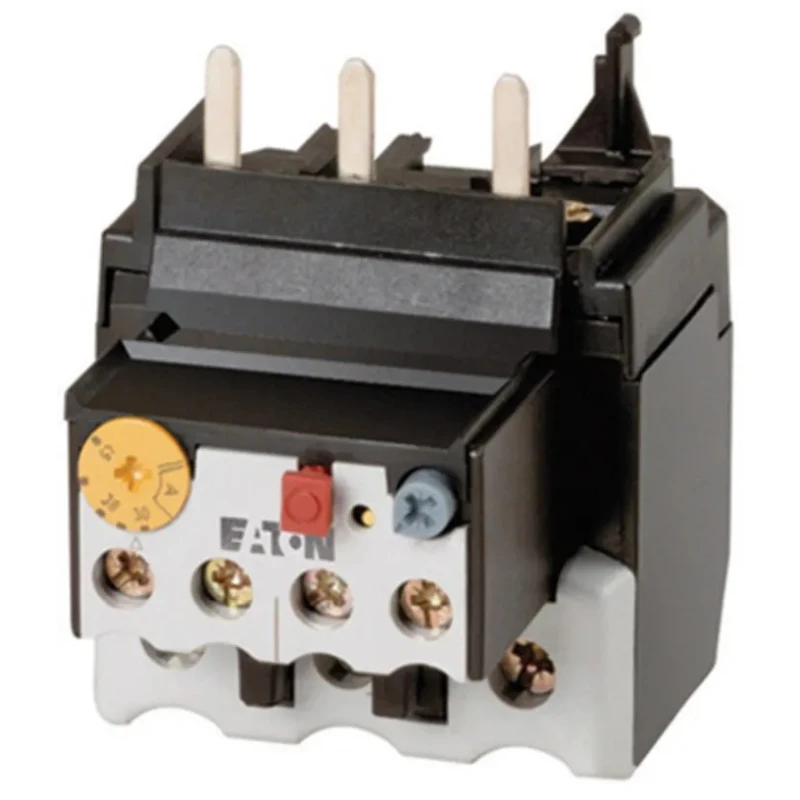

Eaton Overload Relay 10A 16A F.L.C 16A Contact Rating 7.5W 500V AC ZB65
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Length | 172mm |
| Model | ZB65 |
| Depth | 132mm |
| IP Rating | IP00 |
| Width | 60mm |
| Mount Type | Direct |
| Series | ZB65 |
| Power Rating | 7.5W |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Contact Voltage | 690V ac |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 16A |
| Number of Auxiliary Contacts | 2 |
| Control Voltage | 500V ac |
| FLC Motor Rating | 10, 16A |
| Adjustable Current Range | 10 → 16 A |
Key Features
- Provides motor short circuit protection.
- Adjustable current range from 10 to 16 amperes.
- Features 1 normally open and 1 normally closed auxiliary contact configuration.
- Automatic and manual reset methods supported.
- Control voltage rating of 500V AC.
- Screw terminal type ensures secure electrical connections.
- Suitable for mounting directly below DILM 40 to DILM 65 contactors.
- Operating temperature range from -5°C to 55°C.
Product Description
The Eaton ZB65 Overload Relay (model ZB65) offers reliable motor protection for applications requiring adjustable current monitoring between 10 and 16 amperes and a contact rating of 16 amperes. Operating at a power rating of 7.5 watts and rated for control voltages up to 500V AC, this overload relay supports both automatic and manual reset methods, providing flexibility in motor protection schemes.
Designed primarily for compatibility with DILM contactors ranging from DILM40 to DILM65, the relay mounts directly beneath these contactors ensuring compact system architecture. The device features one normally open (NO) and one normally closed (NC) contact configuration for auxiliary control and signaling purposes. Its screw terminal type facilitates secure and reliable electrical connections.
The ZB65 Overload Relay has a robust build with dimensions of 172mm length, 132mm depth, and 60mm width, suitable for industrial control panels. It operates efficiently within a temperature range of -5°C to 55°C and holds an IP00 rating indicating basic environmental protection appropriate for mounting within enclosures.
This relay complies with rigorous international standards including CSA-C22.2 No. 60947-4-1-14, CE, VDE 0660, UL 508, and IEC/EN 60947-4-1, ensuring safety and interoperability in diverse industrial environments. It is suitable for industrial and manufacturing plant motor protection, automation and control gear systems, and electrical distribution applications requiring reliable protective relays.
Provides motor short circuit protection. Adjustable current range from 10 to 16 amperes. Features 1 normally open and 1 normally closed auxiliary contact configuration. Automatic and manual reset methods supported. Control voltage rating of 500V AC.
Screw terminal type ensures secure electrical connections. Compact dimensions: 172mm length, 132mm depth, 60mm width. Suitable for mounting directly below DILM 40 to DILM 65 contactors. Operating temperature range from -5°C to 55°C.
Compliance with multiple international standards including UL, CSA, IEC, and VDE. Source product suitable for applications in industrial automation, manufacturing control panels, HVAC motor protection, and general-purpose motor safety.
Explore more control and automation products for optimized industrial and electrical solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton ZB65 Overload Relay has an adjustable current range from 10 to 16 amperes.
This overload relay is rated for a maximum control voltage of 500V AC.
The dimensions of the Eaton ZB65 are 172mm in length, 132mm in depth, and 60mm in width.
It features a screw terminal type, ensuring secure electrical connections.
The contact rating of this relay is 16 amperes.
It features one normally open (NO) and one normally closed (NC) auxiliary contact configuration.
The operating temperature range for the ZB65 is from -5°C to 55°C.
The ZB65 supports both automatic and manual reset methods.
The power rating of this overload relay is 7.5 watts.
The IP rating of the ZB65 is IP00, indicating basic environmental protection.
It is suitable for mounting directly below DILM 40 to DILM 65 contactors.
This relay complies with several international standards including CSA-C22.2 No. 60947-4-1-14, CE, VDE 0660, UL 508, and IEC/EN 60947-4-1.
