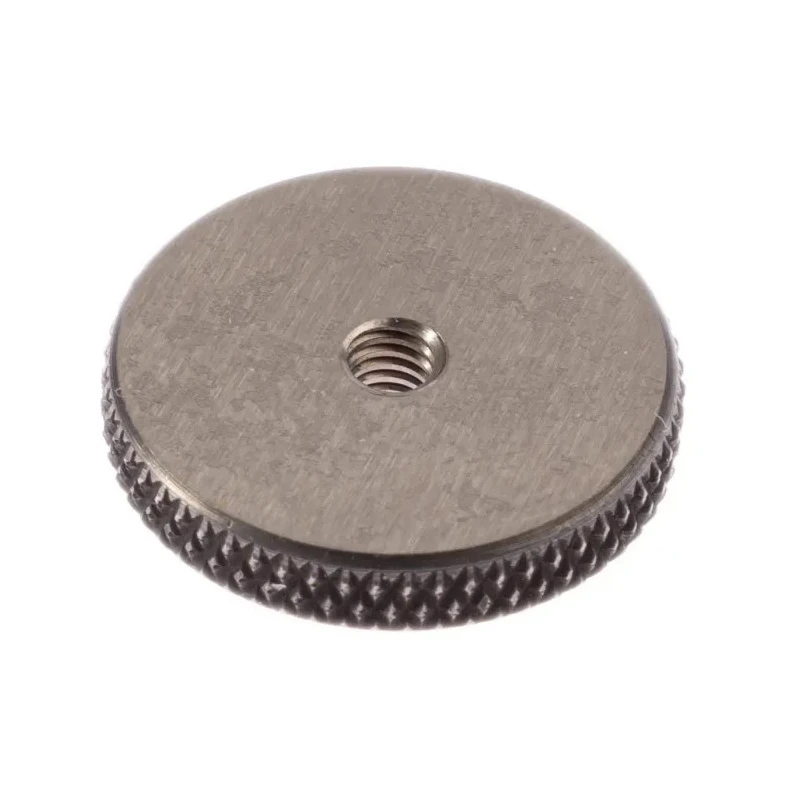

Volkel Metric Tapered No-Go Ring Gauge M4 x 0.7 Thread Size, 0.7 mm Pitch Diameter 6g Tolerance 16334
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Volkel |
| Model | 16334 |
| Thread Size | M4 x 0.7 |
| Gauge Type | Ring |
| Standards/Approvals | DIN ISO 1502 |
| Pitch Diameter | 0.7mm |
| Imperial/Metric | Metric |
| Plug/Ring | Ring |
| Tapered/Straight | Tapered |
| Gauge Tolerance | 6g |
Key Features
- Manufactured in Germany to DIN ISO 1502 and DIN 13 standards.

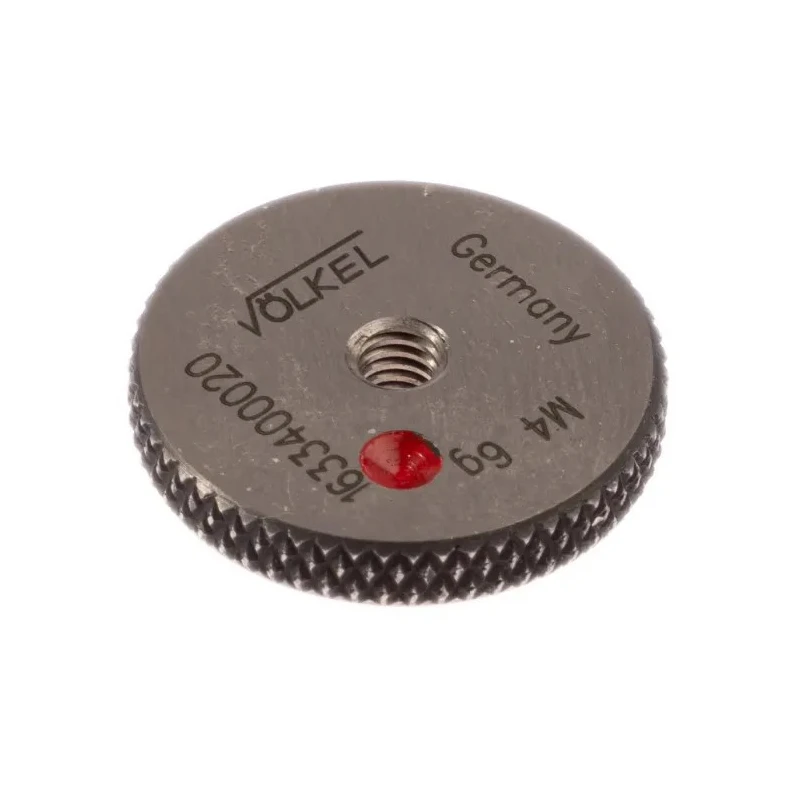

- Designed as a No-Go ring gauge marked in red for easy identification.
- Calibrated in a measurement laboratory using IAC thread scanners.
- Must not screw into the part by hand more than two threads for accurate inspection.
- Constructed from high-quality raw materials for durability and reliability.
- Compact and rugged design suitable for precision engineering applications.
- Used primarily for inspection of threaded parts in metric measurement systems.
- Reference temperature for measurement and gauge use is 20°C.
Product Description
Volkel 16334 Metric Tapered No-Go Ring Gauge M4 x 0.7 is engineered for high precision measurement of thread sizes in metric systems, providing reliable inspection in industrial and manufacturing settings.
This No-Go ring gauge is calibrated at an accredited measurement laboratory using IAC thread scanners to ensure dimensional accuracy. Marked in red for distinction, it is a critical tool for quality control of threaded parts, confirming tolerance limits without causing damage.
The gauge is manufactured in Germany to comply with DIN ISO 1502 and DIN 13 standards, assuring conformity and reliability in inspections. Its tapered design facilitates effective measurement and adapts well to threaded components.
Constructed from high-quality raw materials, it offers excellent durability and long-term usage capability. The compact, rugged form factor ensures ease of handling and efficient inspection processes in laboratories, workshops, and construction environments.
This ring gauge must not be screwed into the part by hand by more than two threads to avoid component damage and ensure precise fit assessment. The recommended reference temperature for use and parts is 20°C to maintain measurement accuracy.
Manufactured in Germany meeting DIN ISO 1502 and DIN 13 standards. 6g gauge tolerance for metric thread size measurement. Calibrated at measurement laboratories using IAC thread scanners. Marked in red as a No-Go inspection gauge.
Tapered metric measurement system compatibility.
Ideal for industrial, laboratory, mechanical manufacturing, and quality assurance applications requiring precise thread measurement of M4 x 0.7 components. It ensures adherence to thread standards and maintains production quality.
Explore our collection of precision Gauges and measurement instruments at EnvMart for professional-grade inspection tools from leading manufacturers like Volkel.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The thread size of this No-Go ring gauge is M4 x 0.7.
This gauge is manufactured in accordance with DIN ISO 1502 and DIN 13 standards.
The gauge tolerance for this model is 6g.
It is calibrated at an accredited measurement laboratory using IAC thread scanners to ensure dimensional accuracy.
The recommended reference temperature for use and parts is 20°C to maintain measurement accuracy.
It is constructed from high-quality raw materials, ensuring durability and reliability.
This gauge features a tapered design, which facilitates effective measurement of threaded components.
It must not be screwed into the part by hand more than two threads to avoid component damage and ensure precise fit assessment.
It is primarily used for inspection of threaded parts in industrial, laboratory, mechanical manufacturing, and quality assurance applications.
This model is classified as a ring gauge.
This gauge is manufactured in Germany.
The pitch diameter of this gauge is 0.7 mm.
