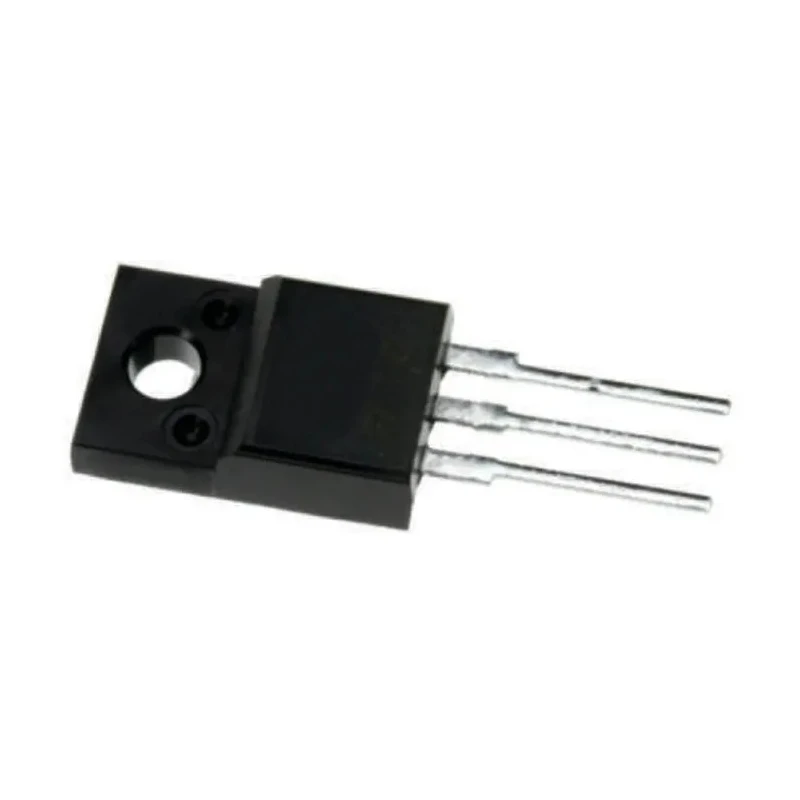

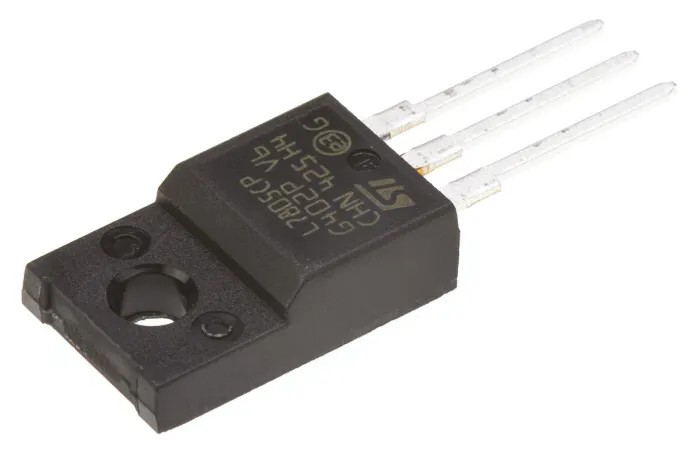

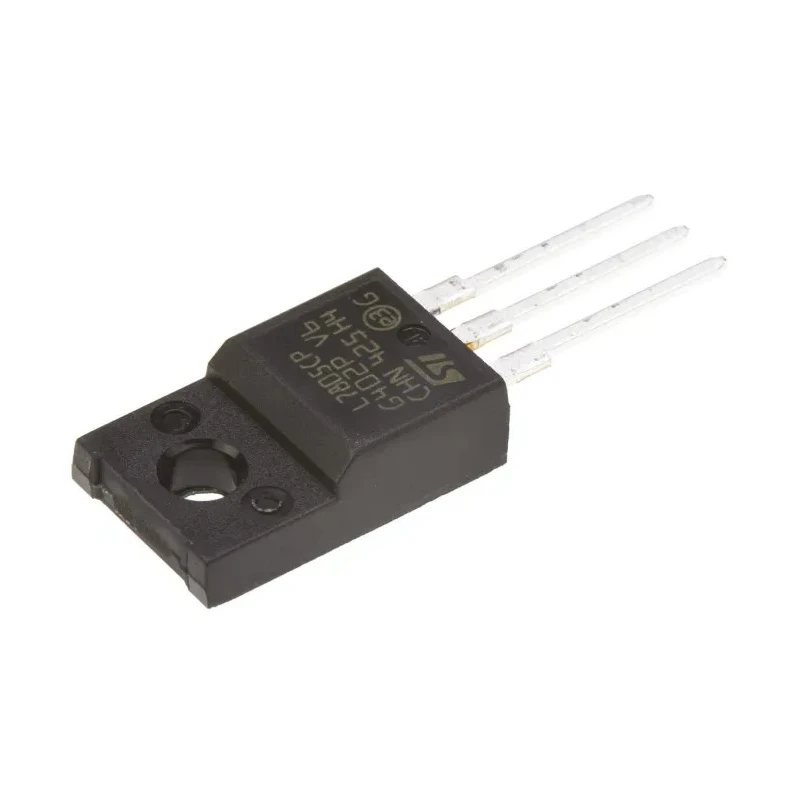

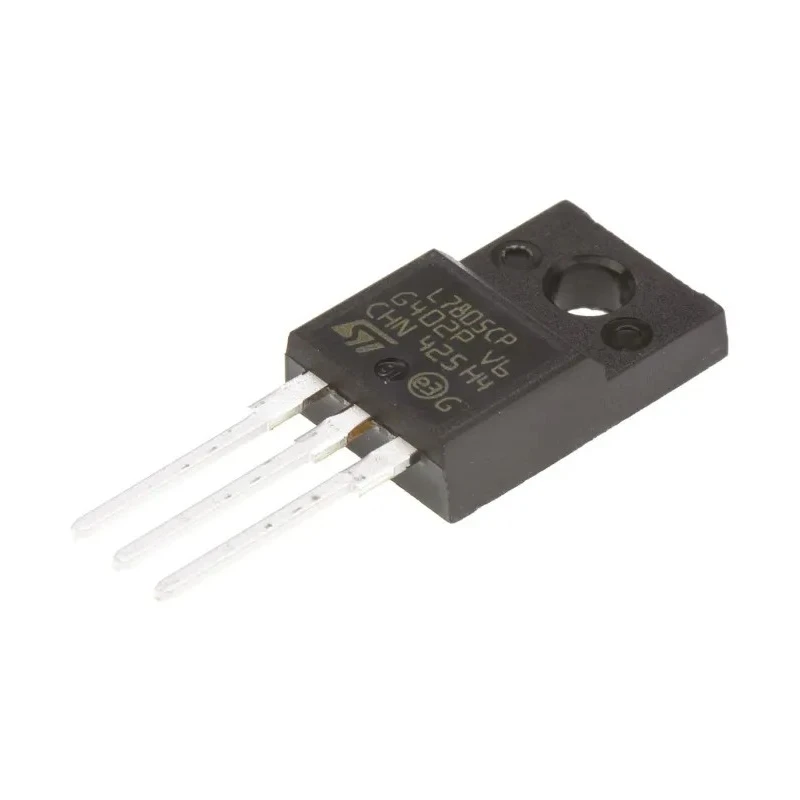

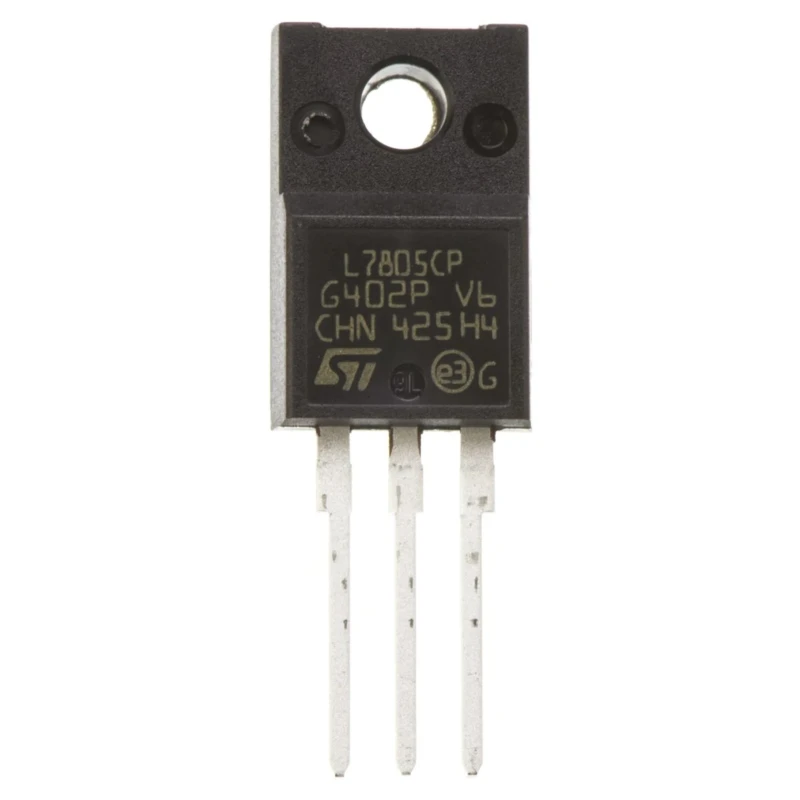

STMicroelectronics 5-Channel Linear Voltage Regulator, 1.5A Output, 5V, TO-220 3-Pin L7805CP
Specifications
| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | L7805CP |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | L78xx |
| Output Current | 1.5A |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Load Regulation | 100 mV |
| Minimum Operating Temperature | 0°C |
| Polarity | Positive |
| Regulator Type | Linear |
| Number of outputs | 5 |
| Maximum Input Voltage | 35V |
| Output Voltage | 5V |
| Quiescent Current | 8mA |
| Line Regulation | 100 mV |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
Key Features
- Fixed 5V output voltage suitable for stable power supply.
- Maximum output current of 1.5A supports medium load applications.
- Linear regulator type with positive polarity for standard voltage regulation.
- Includes thermal overload and output transition safe operating area protections.
- Compact TO-220 3-pin package designed for through-hole mounting.
- Wide operating temperature range from 0°C to 150°C for reliability.
- RoHS compliant ensuring environmentally safe manufacture.
- Maximum input voltage rating of 35V supports various input power sources.
Product Description
STMicroelectronics L7805CP 5-Channel Linear Voltage Regulator is designed for reliable power management in electronic circuits requiring a fixed 5V output. The device is part of the L78xx series of three-terminal positive voltage regulators that provide local on-card regulation, eliminating issues related to single-point regulation.
This regulator is capable of delivering output currents up to 1.5 amperes with built-in thermal overload protection and output transition safe operating area protection, enhancing device safety and longevity. The fixed 5V output and positive polarity make it suitable for various industrial, laboratory, and commercial electronics applications.
The device is housed in a compact TO-220 3-pin package designed for through-hole mounting, allowing straightforward integration into printed circuit boards. It operates efficiently in temperatures ranging from 0°C to 150°C and supports a maximum input voltage of 35V. The regulator maintains line and load regulation within 100 mV, contributing to precise voltage control.
The low quiescent current of 8mA minimizes power waste when in idle, making it an energy-efficient choice. The classic TO-220 form factor and positive linear regulator design are standard in many power management circuits for consumer electronics, industrial control systems, and embedded solutions.
Fixed 5V output voltage suitable for stable power supply. Maximum output current of 1.5A supports medium load applications. Linear regulator type with positive polarity for standard voltage regulation. Includes thermal overload and output transition safe operating area protections.
Compact TO-220 3-pin package designed for through-hole mounting. Wide operating temperature range from 0 to 150 degrees Celsius for reliability. RoHS compliant ensuring environmentally safe manufacture. Maximum input voltage rating of 35V supports various input power sources.
Quiescent current of 8mA ensures low power consumption at no load.
This voltage regulator suits industrial, electronic manufacturing, laboratory testing setups, automation, and control systems where reliable, fixed voltage power is essential. It is ideal for applications requiring local voltage regulation with moderate current loads and thermal protection features.
Explore more voltage regulators and power management solutions within the Semiconductor category at EnvMart.
Explore more products in our Voltage Regulator IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 1.5A, making it suitable for medium load applications.
It provides a fixed output voltage of 5V, which is ideal for stable power supply requirements.
The maximum input voltage rating for the L7805CP is 35V, allowing it to support various input power sources.
This model operates efficiently within a temperature range of 0°C to 150°C.
It is housed in a compact TO-220 3-pin package designed for through-hole mounting.
This voltage regulator includes thermal overload protection and output transition safe operating area protection.
The quiescent current for this model is 8mA, which helps minimize power waste when idle.
The load regulation for this voltage regulator is maintained within 100 mV, contributing to precise voltage control.
The line regulation for this model is also within 100 mV, ensuring stable output voltage under varying input conditions.
The L7805CP is a linear voltage regulator with positive polarity, suitable for standard voltage regulation applications.
This voltage regulator features 5 outputs, allowing for versatile applications in electronic circuits.
Yes, the L7805CP is RoHS compliant, ensuring environmentally safe manufacturing practices.
