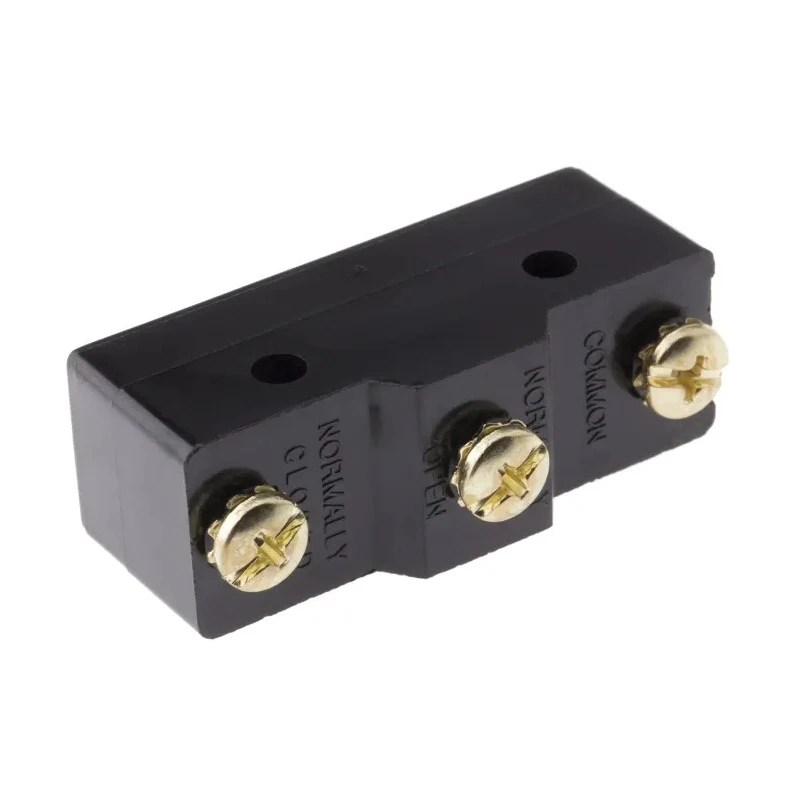

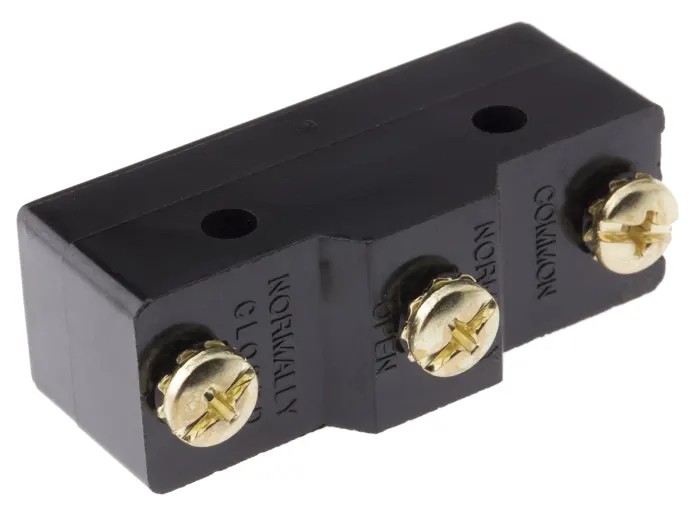

ZF Button Micro Switch, Screw Terminal, 20A, 250 V AC, SPDT GPTBNA01
Specifications
| Country of Origin | China |
|---|---|
| Brand | ZF |
| Model | GPTBNA01 |
| Series | GP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Button |
| Temperature Rating | -20ºC to 85ºC |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Housing dimensions | Height: Length: 49.6mm Height: 22mm Width:17.6mm |
| Standards/Approvals | RoHS |
| Switch Contact Current | 20A |
| Operating Force | 6.17N |
| Mechanical Life | 1000000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Stainless |
| Microswitch Type | General Purpose Switch |
| Case & cover material | Phenolic |
| ZF Button Micro Switch, Screw Terminal, 15 A @ 250 V ac, SPDTBrand | ZF |
| ZF Short Roller Lever Microswitch, Screw Terminal, 20 A @ 250 V ac, SPDTBrand | ZF |
Key Features
- Features a button actuator type for reliable operation.
- Equipped with screw terminal connections for secure wiring.
- Supports a contact current rating of 20 amperes at 250 volts AC.
- Contact configuration is Single Pole Double Throw (SPDT).
- Operates with a low actuating force of 6.17 newtons.
- Designed to withstand extreme temperatures from -20°C to 85°C.
- Offers a mechanical life of up to one million operations for durability.
- Constructed with a phenolic case and cover for electrical insulation and toughness.
Product Description
ZF GPTBNA01 Button Micro Switch is a screw terminal type microswitch rated for 20A at 250 V AC featuring a SPDT contact configuration. Suitable for industrial, electrical automation, HVAC, and manufacturing applications, this general-purpose microswitch provides reliable switching with a button actuator design.
The switch incorporates large brass screw terminals enabling secure electrical connections and supports a mechanical life of up to 1,000,000 operations, ensuring long-term durability in demanding environments.
Designed to operate efficiently in temperatures ranging from -20ºC to 85ºC, it features a robust phenolic case and cover material combined with a stainless steel actuator for enhanced reliability and corrosion resistance.

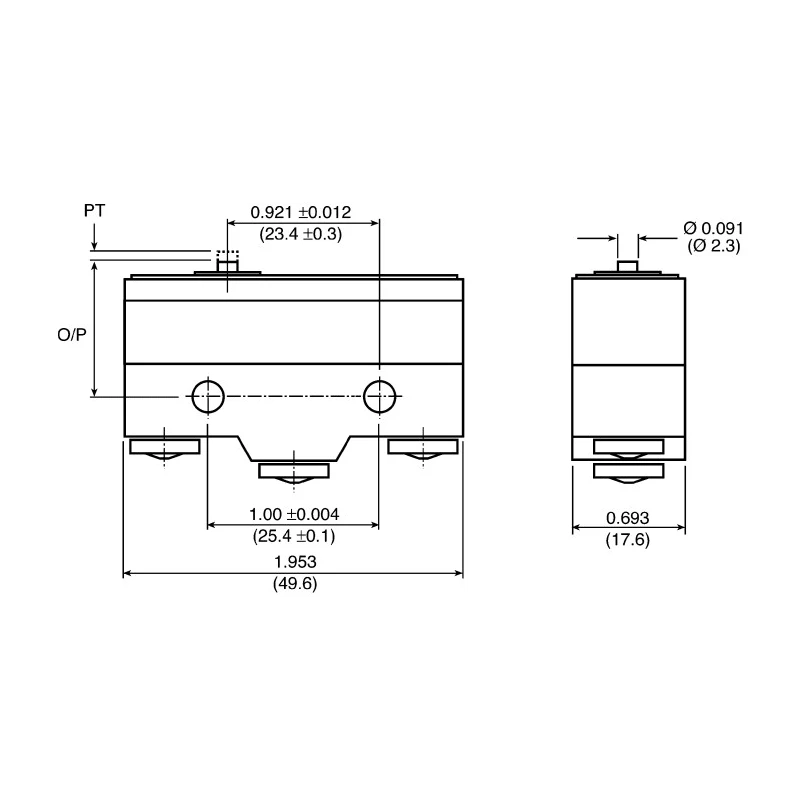

The compact housing dimensions are length 49.6 mm, height 22 mm, and width 17.6 mm, fitting mounting requirements with metric mounting holes. Its ultra-small movement differential and low operating force of 6.17N make it ideal for precise switching applications.
This micro switch complies with RoHS standards and originates from China. It does not possess hazardous area certification but is suitable for a wide range of commercial and industrial uses in automation, control switching, and electrical devices.
Button actuator type enables reliable, repeatable actuation. Screw terminal type ensures secure and durable wiring connections. 20A contact current rating at 250 V AC supports high electrical loads. SPDT contact configuration offers versatile switching capability.
Long mechanical life of one million operations for industrial reliability. Tolerates operating temperatures from -20°C up to +85°C. Phenolic case and cover enhance electrical insulation and durability. Stainless steel actuator provides corrosion resistance and strength.
Compact housing with metric mounting holes for easy integration. RoHS compliant and manufactured in China. Explore other Micro Switches and electrical automation components available at EnvMart for precision control in your industrial and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this micro switch is 20 amperes at 250 volts AC.
It operates efficiently within a temperature range of -20°C to 85°C.
This model features a button actuator type for reliable operation.
It has a mechanical life of up to one million operations, ensuring long-term durability.
The housing dimensions are 49.6 mm in length, 22 mm in height, and 17.6 mm in width.
This micro switch is equipped with screw terminal connections for secure wiring.
The contact configuration is Single Pole Double Throw (SPDT).
The case and cover are constructed from phenolic material, and the actuator is made of stainless steel.
Yes, it complies with RoHS standards.
The operating force required for actuation is 6.17 newtons.
This micro switch is manufactured in China.
It is suitable for industrial, electrical automation, HVAC, and manufacturing applications.
