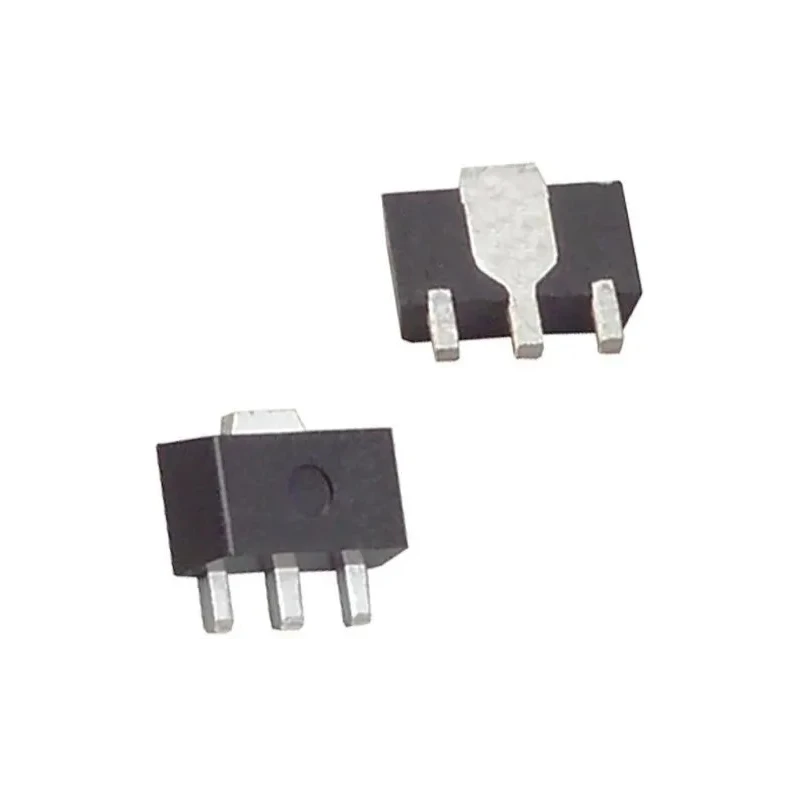

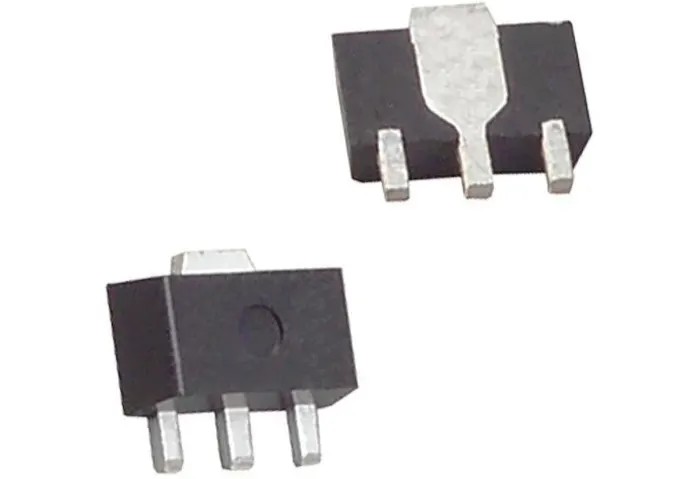

Nisshinbo Micro Devices 1-Channel Linear Voltage Regulator 8V 100mA 3-Pin NJM78L08UA-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM78L08UA-TE1 |
| Mount Type | Surface |
| Series | NJM78L00 |
| Output Current | 100mA |
| Maximum Operating Temperature | 125°C |
| Load Regulation | 100 mV |
| Minimum Operating Temperature | -40°C |
| Regulator Type | Linear Voltage |
| Number of outputs | 1 |
| Maximum Input Voltage | 40V |
| Output Voltage | 8V |
| Quiescent Current | 6mA |
| Line Regulation | 225 mV |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4V |
| Pin Count | 3 |
Key Features
- The regulator is built using JRC Planar epitaxial process ensuring durability.
- Internal current limiting and thermal shutdown enhances device protection.
- Provides excellent ripple rejection for stable voltage supply.
- Supports a wide input voltage range from 4V to 40V.
- Operating temperature range from -40°C to 125°C suitable for diverse environments.
- Compact 3-pin surface mount package design for easy PCB integration.
- Quiescent current consumption is low at 6mA for efficient power usage.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
Nisshinbo Micro Devices NJM78L08UA-TE1 is a high-performance 1-channel linear voltage regulator designed to provide a fixed 8V output voltage with a maximum output current of 100mA. This device is packaged in a 3-pin surface mount format, making it suitable for compact PCB layouts and modern electronic devices requiring reliable voltage regulation.
Manufactured using the advanced JRC Planar epitaxial process, the NJM78L08UA-TE1 includes integral internal current limiting and thermal shutdown circuitry that protects the device from damage under fault conditions. Its internal safe area compensation ensures robust operation under varied load and temperature conditions, making it virtually indestructible in practical usage.
The regulator offers excellent ripple rejection, enhancing the stability and quality of the regulated voltage output in sensitive electronic applications. It operates within a broad input voltage range of 4V to 40V and supports an extended temperature range from -40°C up to 125°C, making it versatile for industrial, automotive (non-certified), laboratory, and embedded system use cases.
This product complies with RoHS environmental standards, ensuring minimal harmful substances in manufacturing and use. The low 6mA quiescent current makes it advantageous for energy-efficient designs.
Advanced JRC Planar epitaxial process technology for enhanced durability. Built-in internal current limiting and thermal shutdown for protection. Excellent ripple rejection supports stable voltage outputs. Wide input voltage range: 4V to 40V.
Operating temperature range of -40°C to 125°C for diverse applications. Compact 3-pin surface mount package enhances PCB design flexibility. Low quiescent current of 6mA for efficient energy usage. RoHS compliant ensuring environmental safety.
Safe area compensation improves reliability under abnormal conditions. Ideal for electronic components, power management ICs, and semiconductor-based voltage regulation.
This voltage regulator is suitable for industrial equipment, electronic components manufacturing, power supply circuits, embedded systems, and other applications requiring precise voltage regulation. Its robust protection features and environment-friendly design make it a reliable choice for long-term deployment.
Explore more voltage regulators and semiconductor components to optimize your electronic assemblies with top performance and quality at EnvMart.
Explore more products in our Voltage Regulator IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is fixed at 8V.
The maximum output current for the NJM78L08UA-TE1 is 100mA.
It operates within a wide input voltage range of 4V to 40V.
The quiescent current consumption is low at 6mA, making it efficient for power usage.
The operating temperature range is from -40°C to 125°C.
This model comes in a compact 3-pin surface mount package, suitable for PCB integration.
It includes internal current limiting and thermal shutdown circuitry for enhanced device protection.
The line regulation is specified at 225 mV.
This product is compliant with RoHS standards, ensuring minimal harmful substances in its manufacturing.
The load regulation is 100 mV.
It belongs to the NJM78L00 series of linear voltage regulators.
The country of origin for this product is India.
