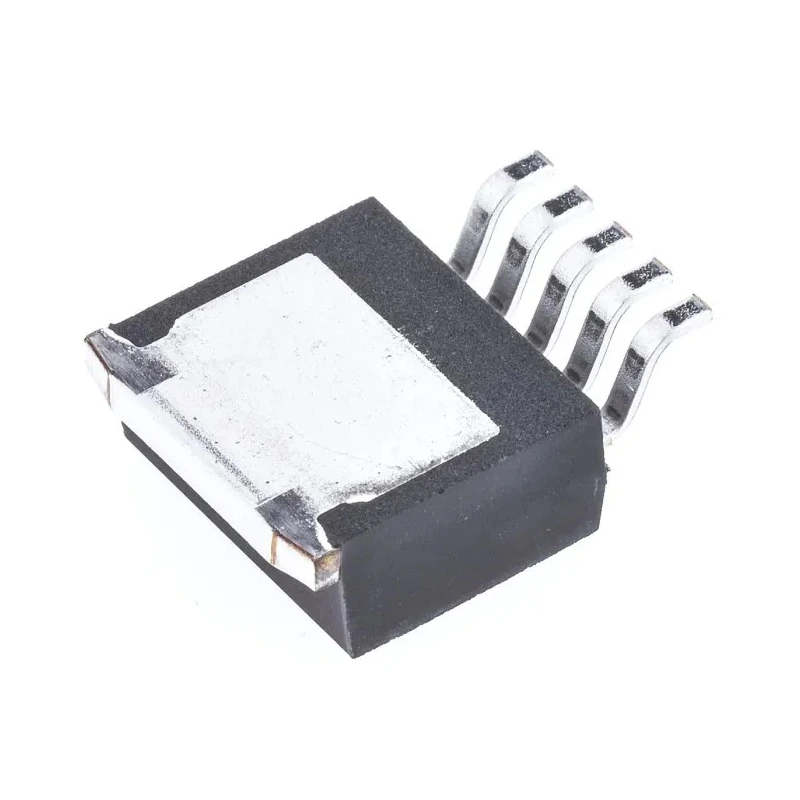

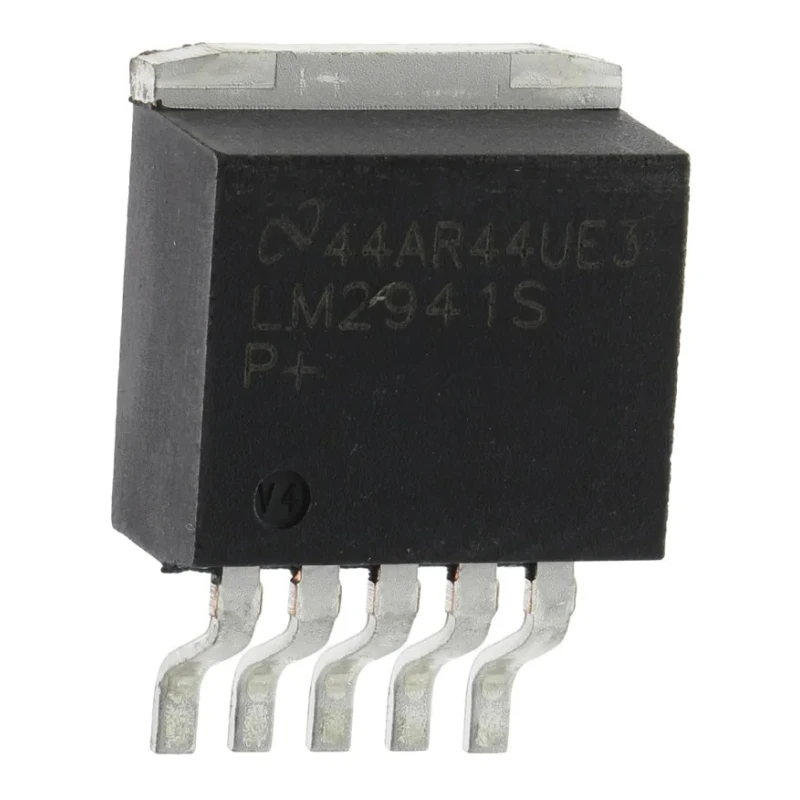

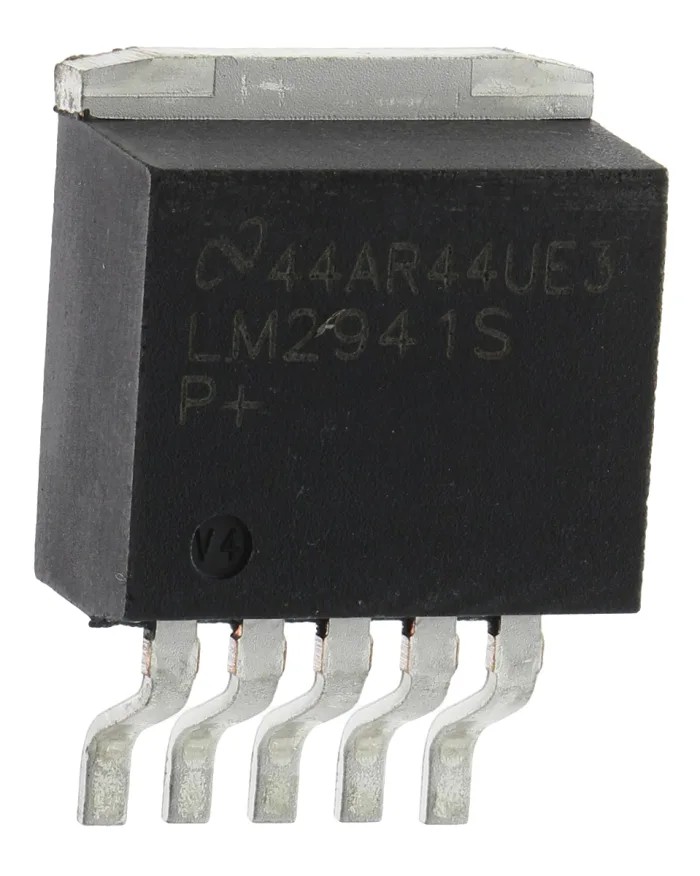

Texas Instruments Adjustable Low Dropout (LDO) Linear Voltage Regulator 26V 5-Pin LM2941S/NOPB

Texas Instruments LM2941S/NOPB is an adjustable Low Dropout (LDO) linear voltage regulator that operates efficiently up to 26V maximum input. Featuring a compact 5-pin surface mount package, it addresses power management demands in electronics requiring regulated voltage with low noise and dropout.

With a positive polarity configuration and a low quiescent current of 10mA, this regulator minimizes power loss while maintaining stable voltage regulation. It is engineered to operate at temperatures up to 125°C, making it suitable for industrial and commercial electronics operating under demanding thermal conditions.

The device’s physical dimensions are compact - 10.16 mm length, 8.64 mm width, and 4.57 mm height - enabling use in space-constrained printed circuit board designs. Although it does not meet specific automotive standards, it is well suited for general power supply applications in consumer electronics, instrumentation, and industrial controls.

As part of the LM2941 series from Texas Instruments, this product benefits from proven quality and compatibility within a range of power management ICs. Applications include power regulation in industrial machines, laboratory instruments, and electronic devices requiring efficient voltage control with minimal dropout.

Supports a maximum input voltage of 26 volts for versatile applications. Features 5-pin surface mount package suitable for compact PCB layouts. Positive polarity linear regulator ensuring stable voltage output. Low quiescent current of 10mA for energy-efficient operation.

Operating temperature range up to 125°C for high reliability. Compact dimensions enable flexible PCB integration. Suitable for industrial, laboratory, and commercial electronics. Explore EnvMart’s wide range of Semiconductor Voltage Regulator ICs from renowned manufacturers like Texas Instruments for reliable power management solutions.
