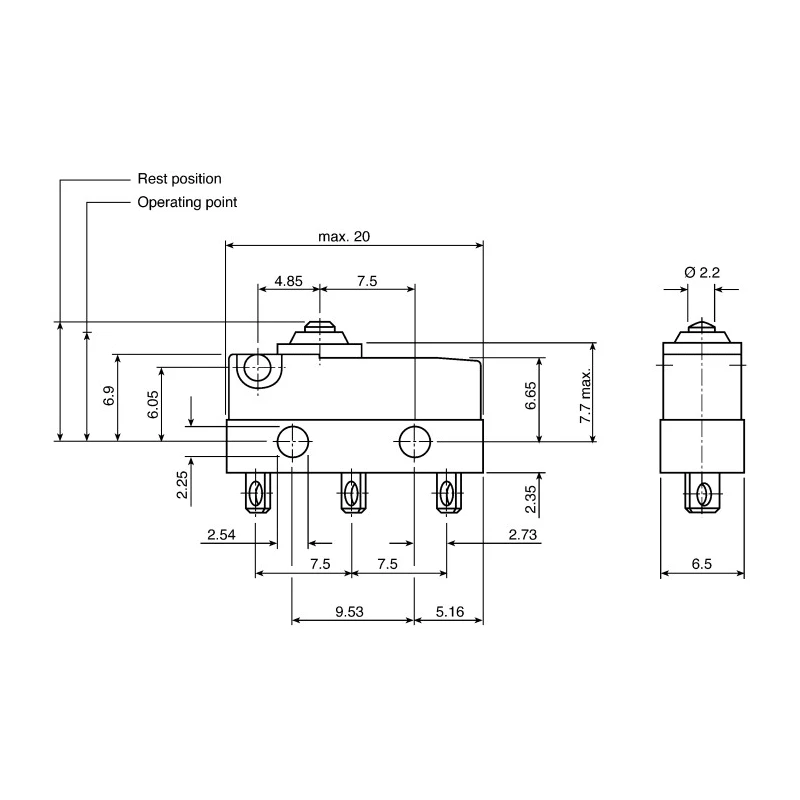

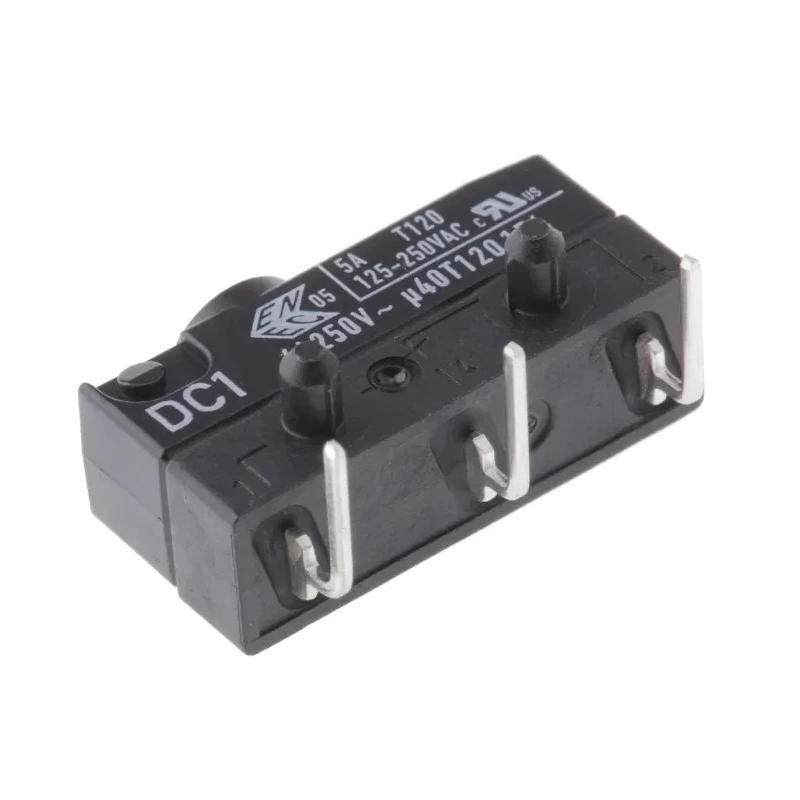

ZF Button Micro Switch with Right Angle PCB Terminal, 6A, 250V AC, SPDT, IP6K7 DC1C-K8AA
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ZF |
| Model | DC1C-K8AA |
| IP Rating | IP6K7 |
| Housing Material | Polyethylene Terephthalate, Polybutylene Terephthalate |
| Series | DC |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Actuator Type | Button |
| Minimum Operating Temperature | -40°C |
| Terminal type | Right Angle PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 6A |
| Operating Force | 1.96N |
| Mechanical Life | 1000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | DC Subminiature |
Key Features
- Sealed with IP6K7 rating for water and dust resistance.
- Constructed with PET and PBT housing materials for durability.
- Capable of mechanical life up to 1,000,000 operations.
- Operates within a temperature range of -40°C to 120°C.
- Features a low actuation force of 1.96 Newtons.
- Designed as a DC Subminiature microswitch suitable for PCB mounting.
- Contact configuration is Single Pole Double Throw for versatile switching.
- Manufactured in Germany ensuring high quality and standards.
Product Description
The ZF DC1C-K8AA Button Micro Switch is a subminiature, sealed microswitch designed for high reliability in demanding industrial and electronic applications. Featuring a right angle PCB terminal, it accommodates easy integration into printed circuit boards while maintaining a compact form factor.
This micro switch supports a switch contact current of 6A at 250V AC and has a Single Pole Double Throw (SPDT) contact configuration to provide versatile circuit control. The switch is sealed with an IP6K7 rating, ensuring protection against water ingress and dust, making it suitable for harsh environments.
Constructed from durable materials including Polyethylene Terephthalate (PET) and Polybutylene Terephthalate (PBT) with UL 94V-0 flammability rating, the housing offers robust mechanical strength and resistance to chemicals. The actuator is made from POM and PBT materials, withstanding temperatures from -40°C up to 120°C, and up to 105°C for pre-wired versions.
Designed to provide reliable performance, the switch supports up to 1,000,000 mechanical operations and requires an operating force of 1.96 newtons for actuation. This makes it well-suited for applications in industrial automation, HVAC systems, laboratory equipment, and other electronic devices requiring precise switch actuation.
Sealed design with IP6K7 rating for enhanced protection. Right angle PCB terminal for easy and secure PCB integration. Operating temperature range from -40°C to 120°C for versatile conditions. Durable PET/PBT housing with UL 94V-0 certification for safety.
Mechanical life of 1,000,000 cycles ensures longevity. Single Pole Double Throw contact configuration for flexible switching. Manufactured in Germany with RoHS compliance for environmental safety.
This ZF Micro Switch offers a reliable and compact solution for electronic and industrial switching requirements. Explore the Electronics & Electricals category on EnvMart for compatible switch components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 120°C.
This micro switch features a Single Pole Double Throw (SPDT) contact configuration.
It has an IP6K7 rating, providing protection against water and dust ingress.
The switch is rated for a mechanical life of up to 1,000,000 operations.
The operating force required for actuation is 1.96 Newtons.
The housing is constructed from Polyethylene Terephthalate (PET) and Polybutylene Terephthalate (PBT).
It supports a switch contact current of 6A at 250V AC.
This model features a right angle PCB terminal for easy integration into printed circuit boards.
The minimum operating temperature is -40°C.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It is suitable for industrial automation, HVAC systems, laboratory equipment, and other electronic devices requiring precise actuation.
This micro switch is manufactured in Germany.
