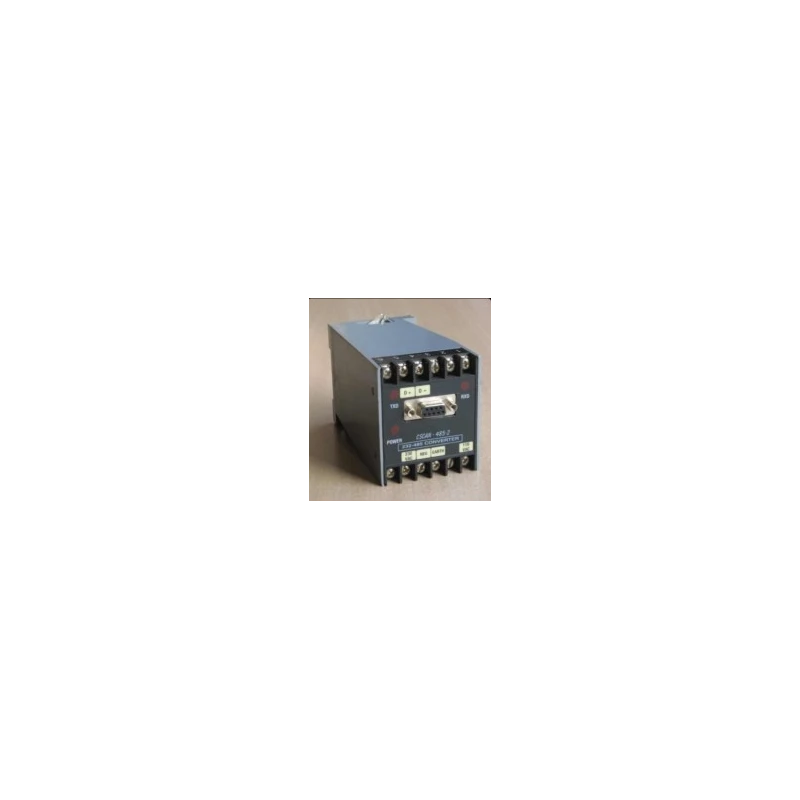

Digital Converter(AC Operated) CSCAN485
Specifications
| Output | RS 232C |
|---|---|
| Input | 2 wire RS485 (CSCAN485-2) 4 wire RS422 (CSCAN485) |
| Isolation | 1000VDC Optical Isolation between input and Output |
| Supply | 230 VAC/110 VAC 10 % single Phase 50 Hz |
| Baud rate | Autobaud selection from 300 to 115200 baud |
| Termination | RS485 / RS422 and supply connections on screw type. 9 pin D type female connector for RS232C |
| Cabinat | DIN rail mount ABS moulded 12 terminal box Size 70 x 60 x 114 mm (HxWxD) |
Key Features
- High performance
- Easy maintenance
Product Description
Digital Converter(AC Operated) - CSCAN485, digital converters are one of the most widely used products in the Industry. These converters are used for converting RS485 to RS232 and vice versa. It provides optical isolation between two ports thus protecting devices connected on both sides. Typically RS485 can be used for a cable distance of up to 1.2 km. If the signal has to be further carried then repeaters can be used. Converters are normally used for interfacing of serial communication between SCADA / DCS and field devices like PLC, controllers, smart transmitters, etc.
- Easy installation
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accepts 2 wire RS485 (CSCAN485-2) and 4 wire RS422 (CSCAN485) as input types.
The output specification is RS 232C.
It provides 1000VDC optical isolation between the input and output.
It requires a supply voltage of 230 VAC or 110 VAC with a tolerance of 10%, operating on a single phase at 50 Hz.
It features autobaud selection from 300 to 115200 baud.
Termination for RS485/RS422 and supply connections is done using screw type terminals, while the RS232C connection uses a 9 pin D type female connector.
The dimensions of this model are 70 x 60 x 114 mm (Height x Width x Depth).
It is designed for DIN rail mounting.
The cabinet is made of ABS moulded material.
This converter is typically used for interfacing serial communication between SCADA/DCS systems and field devices such as PLCs and smart transmitters.
Yes, it is designed for easy installation.
It is used for converting RS485 to RS232 and vice versa, providing optical isolation to protect connected devices.
