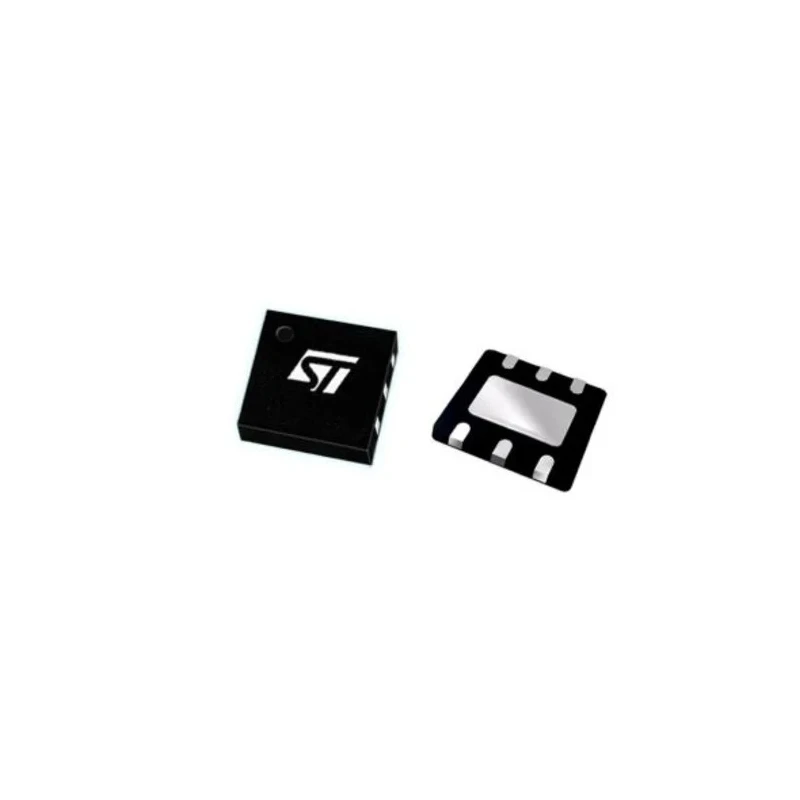

STMicroelectronics 5-Channel Low Dropout Voltage Regulator 200 mA, 0.8V/4.5V Surface Mount STLQ020PU33R
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Temperature range | from -40 °C to +125 °C |
| Model | STLQ020PU33R |
| Mount Type | Surface |
| Series | STLQ020 |
| Output Current | 200mA |
| Maximum Operating Temperature | 125°C |
| Load Regulation | 0.005 %/mA |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Regulator Type | Low Dropout Voltage |
| Number of outputs | 5 |
| Maximum Input Voltage | 5.5V |
| Output Voltage | 0.8, 4.5V |
| Quiescent Current | 150μA |
| Line Regulation | 0.01 %/V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 2V |
| Pin Count | 6 |
| Very low-dropout voltage | 160 mV at 200 mA |
| Packages | DFN6-2x2, SOT323-5L, Flip-Chip4 |
Key Features
- Five output channels suitable for complex power management needs.
- Very low-dropout voltage of 160 mV at full 200 mA load for improved efficiency.
- Ultra-low quiescent current extends battery life in portable and embedded applications.
- Surface mount DFN6 package allows compact PCB integration.
- Wide input voltage range from 2 V to 5.5 V with internal overcurrent and thermal protection.
- Logic-controlled electronic shutdown and optional output discharge feature included.
- Compliant with RoHS standards for environmental safety.
Product Description
STMicroelectronics STLQ020PU33R is a high-performance, five-channel low dropout voltage regulator designed for demanding electronic and embedded systems. Featuring a surface mount DFN6 package and supporting an output current up to 200 mA per channel, the regulator operates over a wide voltage range from 2 V to 5.5 V. Its extremely low-dropout voltage of 160 mV at maximum load and ultra-low quiescent current make it ideal for battery-powered and energy-sensitive applications.
With output voltage versions 0.8V and 4.5V, the STLQ020PU33R delivers precision power regulation for microprocessor cores, memory subsystems, analog circuits, and other critical loads. The device's adaptive biasing circuit ensures fast transient response and high power supply rejection ratio (PSRR), enhancing system stability even under varying load conditions.
Five output channels for advanced power partitioning in electronics design. 150 μA quiescent current with further reduction to 0.3 μA at no load for maximum energy savings. Logic-controlled shutdown reduces system power draw to just 5 nA when not actively in use.
Built-in overcurrent and thermal protection ensure robust operation in diverse environments. Wide temperature range from -40°C to +125°C enables application in industrial, laboratory, and automotive systems where reliability is critical.
Internal output discharge and short-circuit constant-current limiting extend component safety. Compliance with RoHS for environmentally sustainable manufacturing.
The STLQ020PU33R is especially suited to industrial control systems, portable instrumentation, laboratory equipment, telecommunications devices, and any application requiring precise, regulated multi-channel power distribution in a compact footprint.
Explore related STMicroelectronics voltage regulation products and full industrial grade component solutions by browsing EnvMart's Semiconductor and Voltage Regulator IC categories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can deliver an output current of up to 200 mA per channel.
It operates over a wide input voltage range from 2 V to 5.5 V.
This voltage regulator offers output voltage options of 0.8 V and 4.5 V.
The dropout voltage is very low at 160 mV when delivering a full load of 200 mA.
The quiescent current is 150 μA, which can be reduced to 0.3 μA at no load for energy savings.
It can operate within a temperature range from -40 °C to +125 °C.
It is available in a surface mount DFN6 package, which allows for compact PCB integration.
Yes, it includes internal overcurrent and thermal protection to ensure robust operation.
The STLQ020PU33R has a pin count of 6.
The line regulation is specified at 0.01 %/V, ensuring stable output across varying input voltages.
Yes, it is compliant with RoHS standards for environmental safety.
It is particularly suited for industrial control systems, portable instrumentation, and telecommunications devices requiring precise power distribution.
