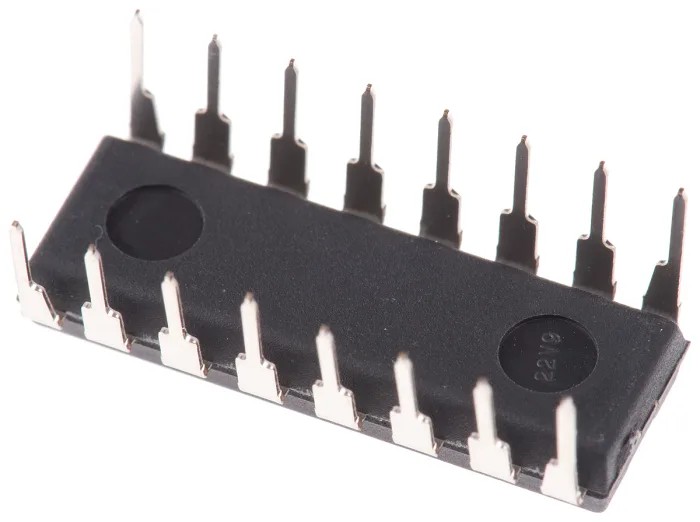

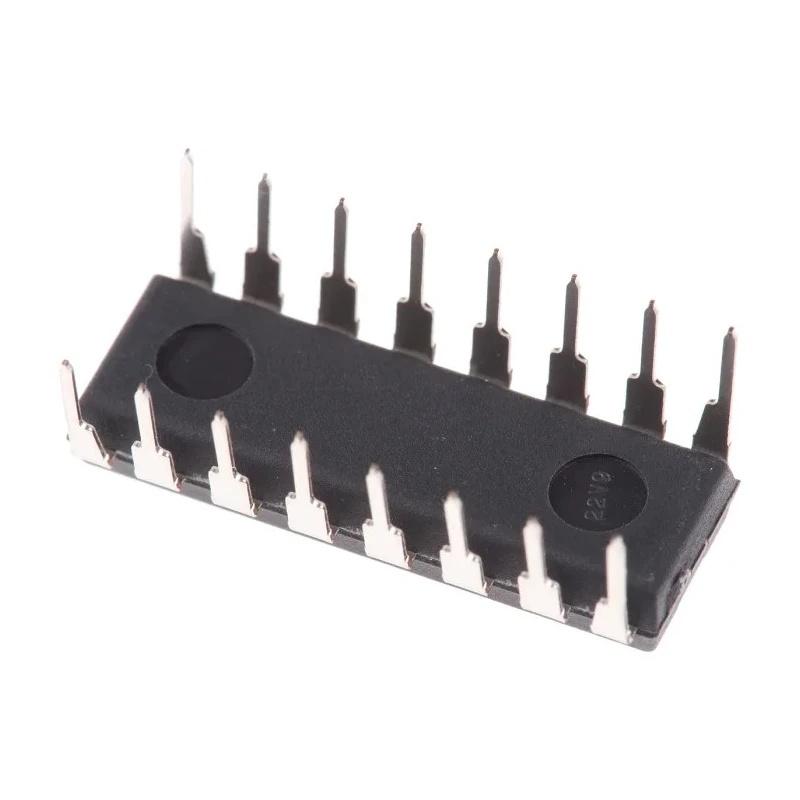

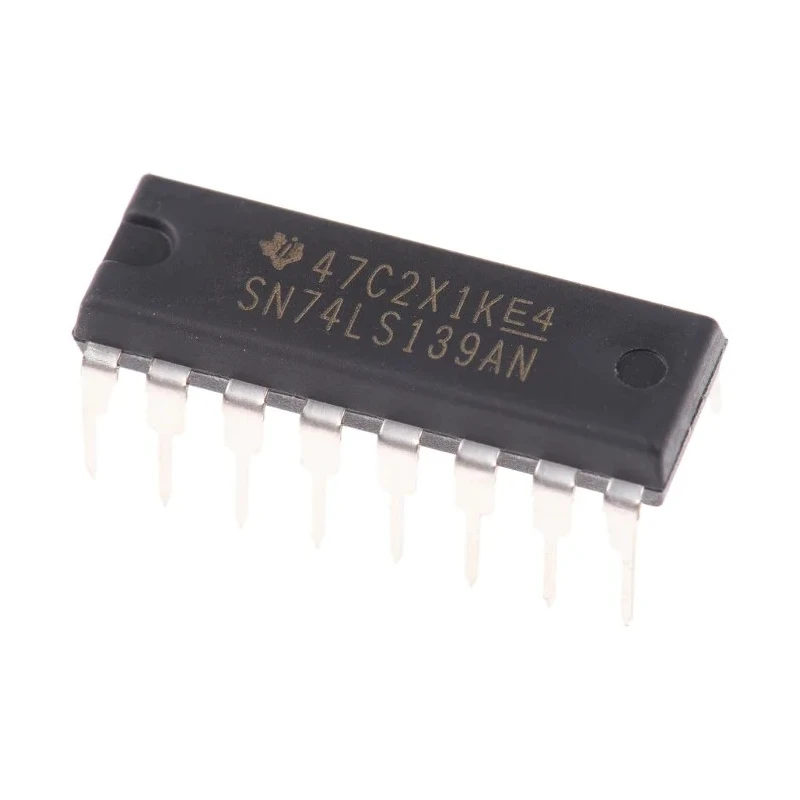

Texas Instruments Decoder, 1MHz, 16-Pin PDIP, 4 Input Demultiplexer SN74LS139AN

The Texas Instruments SN74LS139AN is a decoder IC from the 74LS family of Low Power Schottky Logic integrated circuits. Operating at a frequency of up to 1MHz, it features a 16-pin PDIP package with a through-hole mount, making it suitable for a wide range of electronic applications.

This decoder supports demultiplexing functions with four inputs and is optimized for power efficiency and speed due to its bipolar junction transistor technology combined with Schottky diode clamps. The power supply voltage ranges between 4.75V to 5.25V, ensuring stable performance.

It operates reliably in industrial and commercial environments within an ambient temperature range of 0°C to 70°C. The package dimensions are compact with 5mm in length and 1.75mm in height, facilitating integration in densely packed circuit boards.

This component is widely used in digital electronics, signal routing, switch logic implementations, and other semiconductor applications demanding precision and reliability. Operates within a supply voltage range of 4.75V to 5.25V.

Supports 4 input lines with demultiplexer and decoder logic functions. Includes bipolar junction technology with Schottky diode clamps for low power consumption. 16-pin PDIP package allows for through-hole mounting. Compact physical dimensions: 5mm length and 1.75mm height.

Operating temperature range: 0°C to 70°C. Part of the 74LS series, known for high speed and low power usage. Ideal for industrial, laboratory, and consumer electronics applications.

This Texas Instruments decoder is a reliable choice in semiconductor products, suitable for diverse industrial and commercial use cases. Explore related semiconductors and logic ICs in the Encoder & Decoder ICs category on EnvMart.
