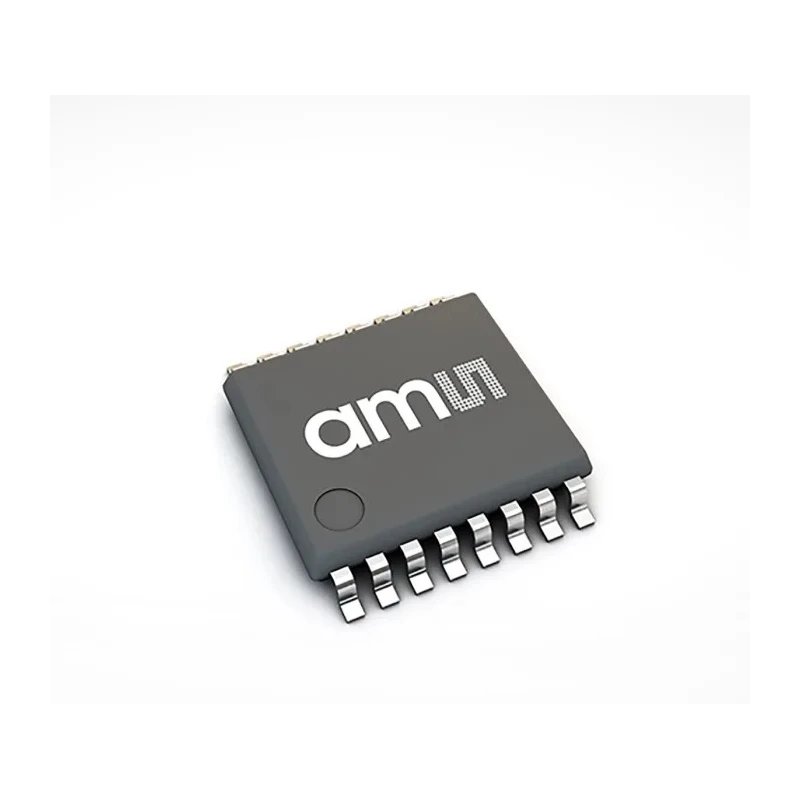

ams OSRAM 8 Bit Programmable High Speed Magnetic Rotary Encoder 6 MHz 18 mA 16-Pin TSSOP AS5030-ATST

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM 8 Bit Programmable High Speed Magnetic Rotary Encoder 6 MHz 18 mA 16-Pin TSSOP AS5030-ATST

Name: ams OSRAM 8 Bit Programmable High Speed Magnetic Rotary Encoder 6 MHz 18 mA 16-Pin TSSOP AS5030-ATST
Brand: ams OSRAM
SKU: 273729
Price: 6.65 USD
Availability: InStock



Category Encoder & Decoder ICs Brand ams OSRAM Condition New

Specifications

Country of Origin	Austria
Brand	ams OSRAM
Height	1.2mm
Length	6.4mm
Model	AS5030-ATST
Mount Type	Surface
Number of inputs	5
Series	AS5030
Maximum Operating Temperature	125°C
Package Type	TSSOP
Minimum Operating Temperature	-40°C
Standards/Approvals	IPC/JEDEC J-STD-020, Pb-Free, MSL 3
Pin Count	16
Maximum Supply Voltage	5.5V
Logic Family	CMOS
Minimum Supply Voltage	4.5V
Typical Supply Current	18mA

Key Features

This encoder supports 8-bit programmable output for precise control.
Operates at a maximum frequency of 6 MHz with a typical supply current of 18 mA.
Features a 16-pin TSSOP surface mount package for compact mounting.
The device operates reliably within a temperature range of -40°C to 125°C.
Input voltage ranges from 4.5 V minimum to 5.5 V maximum.
CMOS logic family ensures low power consumption and solid-state reliability.
User programmable zero position enhances customization.
Daisy chain mode allows serial read-out of multiple interconnected devices.

Product Description

The ams OSRAM AS5030-ATST is an 8-bit programmable high speed magnetic rotary encoder designed for contactless rotary position sensing in industrial, automotive, and electronic applications.

Its contactless measurement principle relies on a simple two-pole magnet rotating over the center of the chip to determine exact angular positions, enabling precise and reliable shaft tracking without mechanical wear.

Operating with a frequency up to 6 MHz and a typical current draw of 18 mA, this device features a CMOS logic family and is housed in a compact 16-pin TSSOP surface mount package, making it suitable for space-constrained PCB designs.

The encoder functions within a broad supply voltage range from 4.5 V to 5.5 V and supports operating temperatures between -40°C and 125°C, ensuring robustness in harsh environments.

User programmability for zero position adjustment and the ability to chain multiple encoders via daisy chain mode make it versatile for complex systems requiring multiple encoder inputs.

This encoder supports 8-bit programmable output for precise control. Operates at a maximum frequency of 6 MHz with a typical supply current of 18 mA. Features a 16-pin TSSOP surface mount package for compact mounting. The device operates reliably within a temperature range of -40°C to 125°C.

Input voltage ranges from 4.5 V minimum to 5.5 V maximum. CMOS logic family ensures low power consumption and solid-state reliability. User programmable zero position enhances customization. Daisy chain mode allows serial read-out of multiple interconnected devices.

Designed to measure the magnetic field strength directly, enabling accurate vertical magnet distance detection. Manufactured in Austria and compliant with IPC/JEDEC J-STD-020, Pb-Free, MSL 3 standards.

This rotary encoder is excellently suited for applications in industrial automation, automotive sensor systems, robotics, and electronics requiring precise position measurements without mechanical wear.

Explore more encoders and semiconductor ICs in our specialized Electronics & Electricals category on EnvMart.

Explore more products in our Encoder & Decoder ICs category.
