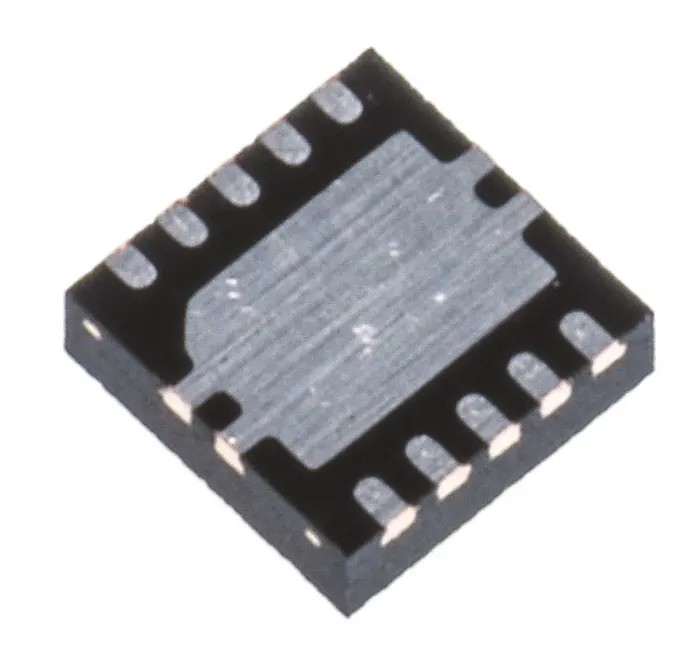

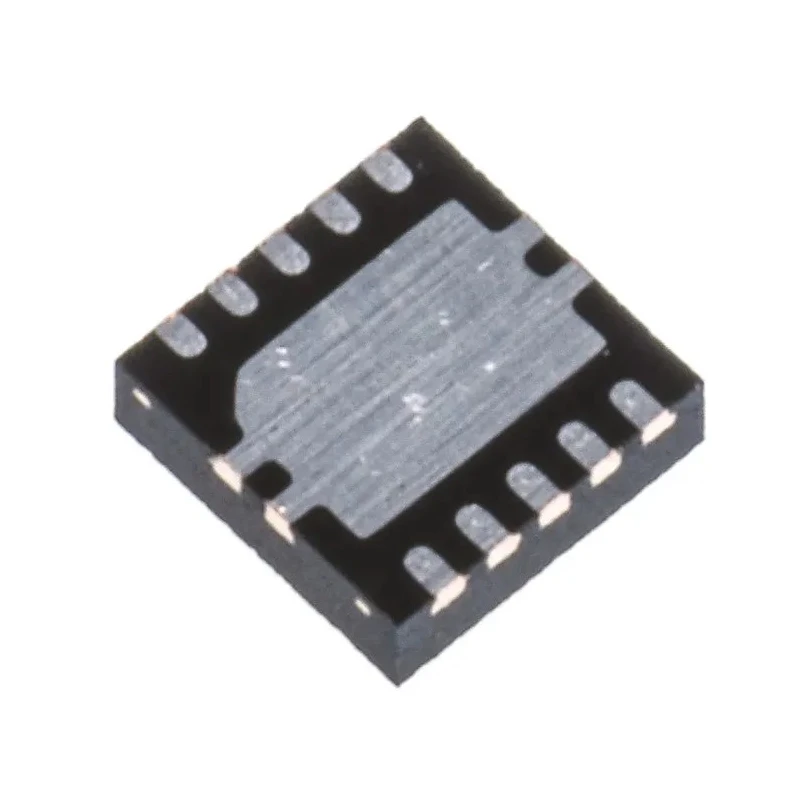

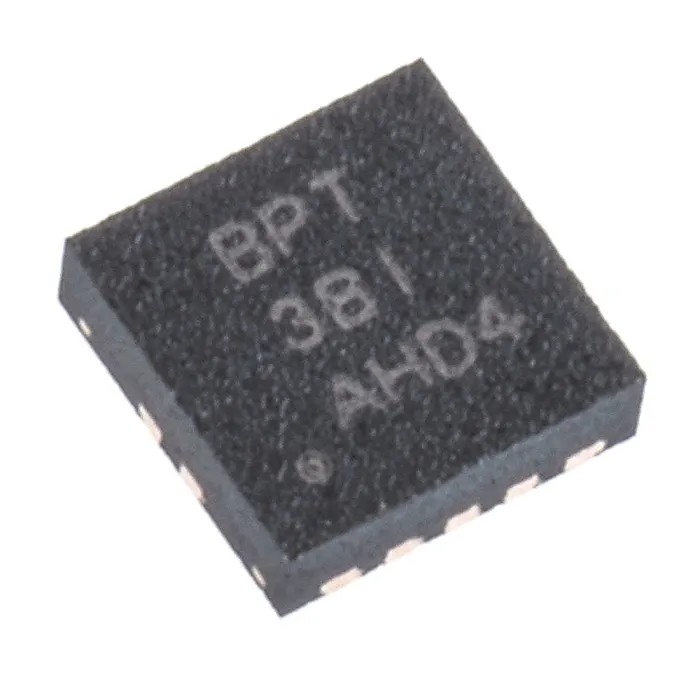

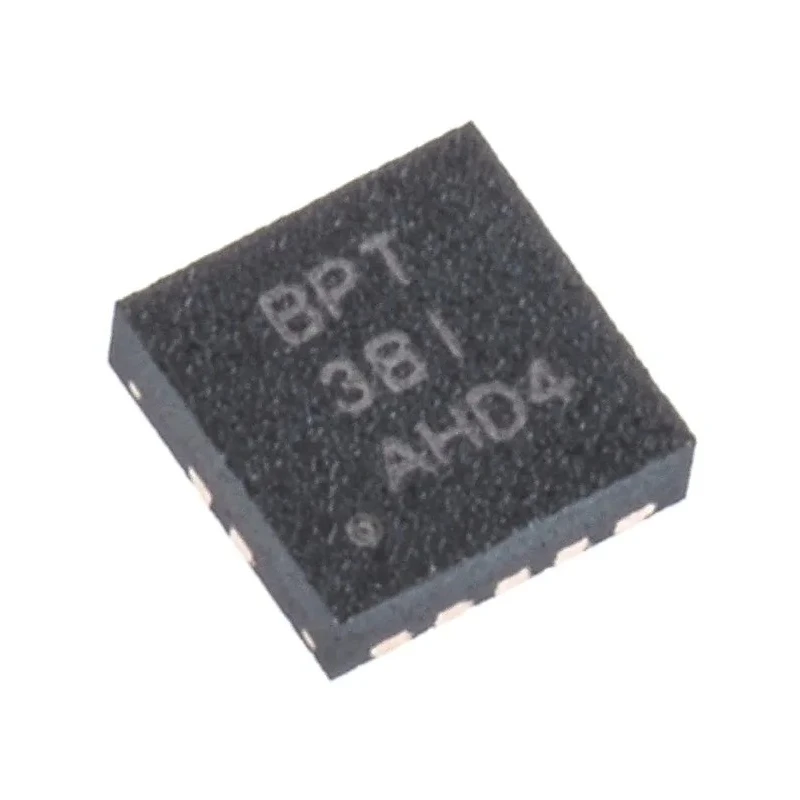

Texas Instruments 5-Channel Buck, Boost, Buck Boost Switching Regulator , 1.2A, 5.5V Output, 1500 kHz TPS63000DRCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 0.9mm |
| Length | 3mm |
| Model | TPS63000DRCT |
| Width | 3mm |
| Mount Type | Surface |
| Output type | Adjustable |
| Series | TPS6300x |
| Output Current | 1.2A |
| Maximum Operating Temperature | 85°C |
| Package Type | SON |
| Load Regulation | 0.5 % |
| Minimum Operating Temperature | -40°C |
| Regulator Type | Buck, Boost |
| Switching Frequency | 1500kHz |
| Number of outputs | 5 |
| Maximum Input Voltage | 5.5V |
| Output Voltage | 5.5V |
| Quiescent Current | 50μA |
| Line Regulation | 0.5 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 1.8V |
| Pin Count | 10 |
Key Features
- Provides buck, boost, and buck-boost regulated outputs for versatile DC/DC conversion.
- Delivers up to 1.2A output current supporting high-efficiency applications.
- Features adjustable output voltage up to 5.5V for flexible designs.
- Supports five outputs with a 1500 kHz switching frequency for rapid response and minimal footprint.
- Surface-mount SON 10-pin form factor enables efficient PCB integration.
- Ultra-low quiescent current of 50 μA for battery-powered solutions.
- Complies with RoHS standards for environmental safety.
- Operates from 1.8V to 5.5V input voltage range, suitable for single-cell lithium or multi-cell alkaline/NiMH batteries.
Product Description
The Texas Instruments TPS63000DRCT is a highly integrated 5-channel DC/DC switching regulator that supports buck, boost, and buck-boost conversion modes. It is designed to efficiently manage power distribution in electronic systems requiring adaptable voltage regulation across multiple rails.
This device can automatically select between step-down and step-up operation using a single inductor, making it ideal for battery-powered applications with variable supply voltages. The regulator accommodates a wide input voltage range from 1.8V up to 5.5V, thus supporting a variety of battery chemistries including two- and three-cell alkaline batteries, NiCd, NiMH, and single-cell lithium designs.
The TPS63000DRCT provides five adjustable outputs, supporting up to 1.2A output current, and delivers a maximum output voltage of 5.5V. With a fast switching frequency of 1500 kHz, the device ensures high efficiency and compact PCB layouts, minimizing electromagnetic interference and response time. Low quiescent current (50 μA) further optimizes performance for portable electronics, such as mobile phones and handheld devices, extending battery life and reducing power wastage.
The regulator features precise line and load regulation (0.5%) for stable output voltage under varying input and load conditions. The SON package (10-pin, 3mm x 3mm x 0.9mm) supports surface mount integration, providing reliability and space-saving installation. The device is compliant with RoHS standards, ensuring eco-friendly operation.
Typical use cases include industrial, laboratory equipment, telecommunications, personal electronics, and commercial devices that require robust power management ICs. Whether for embedded systems, sensor platforms, or consumer gadgets, the TPS63000DRCT enables dependable operation under demanding environments with operating temperatures from -40°C to +85°C.
Explore the complete range of Texas Instruments power management solutions for critical voltage regulation in your designs. Discover innovative ICs for semiconductor, power management, and voltage regulation applications on EnvMart.
Explore more products in our Voltage Regulator IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can deliver an output current of up to 1.2A.
The maximum output voltage is 5.5V, which is adjustable for flexible designs.
It operates within an input voltage range of 1.8V to 5.5V, accommodating various battery types.
The TPS63000DRCT features five adjustable outputs.
It has a switching frequency of 1500 kHz, ensuring rapid response and efficiency.
This model has a height of 0.9mm, a length of 3mm, and a width of 3mm.
It comes in a SON package type with a pin count of 10, suitable for surface mounting.
The quiescent current is 50 μA, which is beneficial for battery-powered applications.
It operates effectively within a temperature range of -40°C to +85°C.
This model complies with RoHS standards for environmental safety.
The load regulation is specified at 0.5%, ensuring stable output voltage under varying conditions.
