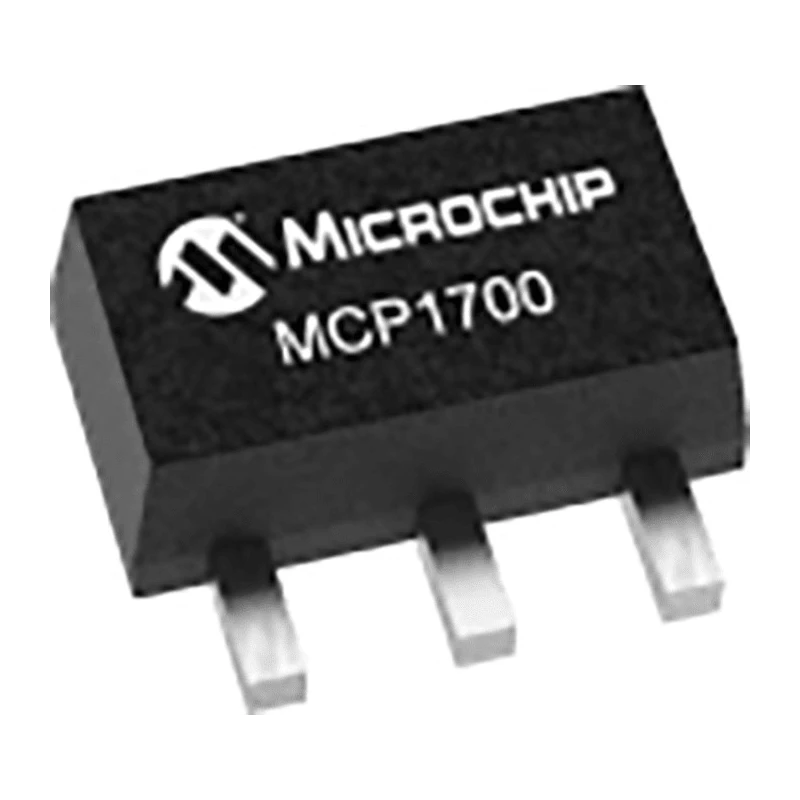

Microchip Low Dropout Voltage Regulator, 6V, Positive Polarity, SOT-89, Surface Mount, 3-Pin, MCP1700T-3002E/MB
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | Regulators Microchip, Voltage Regulator 6V SOT-89 3-Pin RS Stock No |
| Brand | Microchip |
| Height | 1.16mm |
| Length | 4.5mm |
| Model | MCP1700T-3002E/MB |
| Width | 2.29mm |
| Mount Type | Surface |
| Series | MCP1700 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-89 |
| Polarity | Positive |
| Maximum Input Voltage | 6V |
| Quiescent Current | 4μA |
| Minimum Input Voltage | 2.3V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
| Output Capacitor | 1.0 μF Ceramic |
Key Features
- CMOS low dropout positive voltage regulator with 6V output.
- Supports up to 250mA of sourcing current for various applications.
- Extremely low input-output voltage differential of 178mV at 250mA.
- Surface mount SOT-89 package for space-saving PCB design.
- Stable operation with 1.0μF ceramic output capacitor.
- Quiescent current of only 4μA for enhanced battery life.
- Short-circuit and over temperature protection integrated.
- Operates within 2.3V (minimum) to 6V (maximum) input range.
Product Description
The Microchip MCP1700T-3002E/MB is a high-quality, CMOS low dropout positive voltage regulator designed for stable power delivery in compact electronic systems. Featuring a 6V output and housed in a surface-mount SOT-89 package, it provides versatility for both battery-operated and industrial devices. Its low input-output differential voltage of 178mV at 250mA ensures efficient energy usage and extended battery life.
This voltage regulator is capable of sourcing up to 250mA, making it suitable for powering sensors, microcontrollers, and precision analog circuits. Operating with a quiescent current of only 4μA, it minimizes overall power consumption in standby and active modes. The MCP1700T-3002E/MB remains stable with a 1.0μF ceramic output capacitor, optimizing noise performance and transient response.
Protection features include integrated short-circuit and over temperature safeguards, increasing device reliability and safety in harsh environments. The regulator supports a wide input voltage range from 2.3V to 6V (maximum), compatible with multiple supply sources and battery chemistries.
The surface mount SOT-89, 3-pin configuration simplifies PCB routing for compact layouts, while its positive polarity ensures straightforward integration in most power architectures. The device adheres to automotive industry standards (AEC-Q100), permitting its use in demanding automotive and industrial applications where robust power management is necessary.
Key technical specifications include a maximum operating temperature of 125°C, package width of 2.29mm, length of 4.5mm, and height of 1.16mm. Its reliability and minimal power requirements make it ideal for portable, embedded, and remote sensing solutions requiring efficient voltage regulation. Manufactured in the United States, the MCP1700T-3002E/MB ensures adherence to strict industry norms for performance and safety.
Typical use cases are electronics, automotive, industrial controls, sensor systems, portable medical instruments, and other applications requiring precise voltage regulation. Explore the complete range of Microchip Voltage Regulator ICs in EnvMart's catalog for reliable and efficient power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 6V.
It is capable of sourcing up to 250mA.
The input voltage range is from 2.3V (minimum) to 6V (maximum).
It is housed in a surface mount SOT-89 package.
The quiescent current is only 4μA, which helps enhance battery life.
The dimensions are 1.16mm in height, 4.5mm in length, and 2.29mm in width.
Yes, it includes integrated short-circuit and over temperature protection.
It operates stably with a 1.0μF ceramic output capacitor.
Yes, it adheres to the AEC-Q100 automotive standard, making it suitable for automotive applications.
The maximum operating temperature is 125°C.
It is suitable for powering sensors, microcontrollers, precision analog circuits, and various automotive and industrial applications.
This voltage regulator has a 3-pin configuration.
