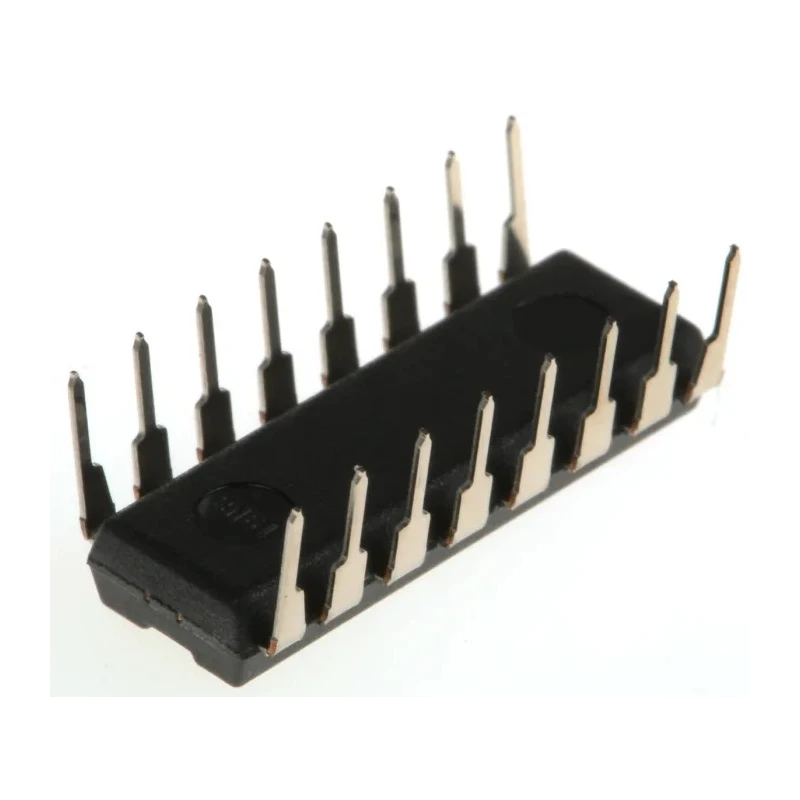

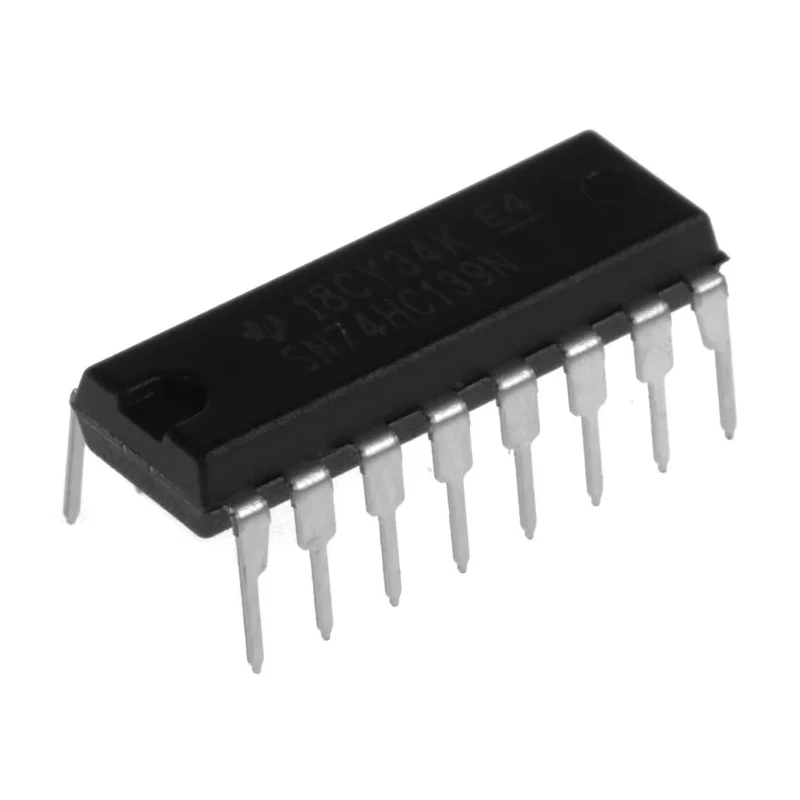

Texas Instruments Decoder Logic IC 1MHz, 16-Pin PDIP, 2-6V Operating Voltage SN74HC139N

Texas Instruments SN74HC139N is a high-speed Decoder and Demultiplexer Logic IC from the 74HC family. This integrated circuit utilizes silicon gate CMOS technology, combining the high speed performance of LSTTL with the low power consumption of standard CMOS devices. Featuring a 16-pin PDIP through-hole package, this device supports up to 4 inputs for precise decoding functions.

The SN74HC139N operates at a supply voltage ranging from 2V to 6V, making it versatile for many electronic applications. It supports operating temperatures from -40°C to 85°C, enabling reliable performance in industrial and commercial environments.

With a length of 19.3mm and height of 4.57mm, this decoder IC fits standard circuit board footprints. Its CMOS input and output levels ensure compatibility with modern logic systems.

This model is part of Texas Instruments' SNA series and does not have automotive standard certification, suitable for general electronics hardware design and development. Applications span across industrial electronics, automated control systems, data multiplexing/demultiplexing, and other digital signaling circuits.

Utilizes high-speed CMOS technology enabling efficient logic decoding with reduced power consumption. Wide operating voltage and temperature ranges for adaptable use in different environments. Through-hole PDIP packaging for ease of circuit board assembly.

Compatible with standard CMOS logic inputs and outputs ensuring broad system integration. Compact dimensions supporting standard PCB layouts. Ideal for industrial, laboratory, and embedded electronics design projects. Explore various semiconductor logic ICs and decoder solutions at EnvMart for comprehensive electronics components and supplies.
