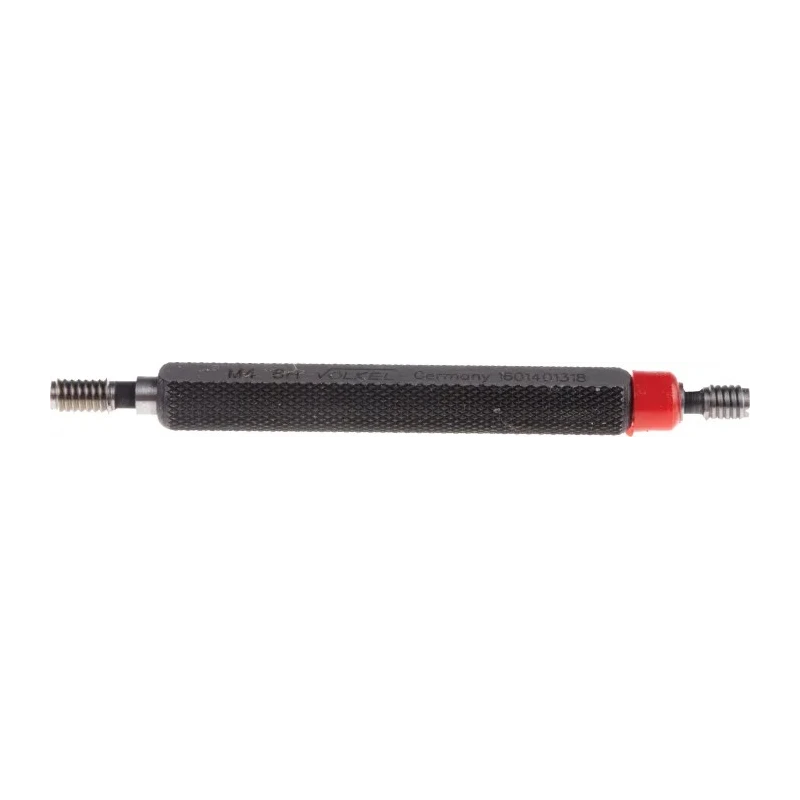

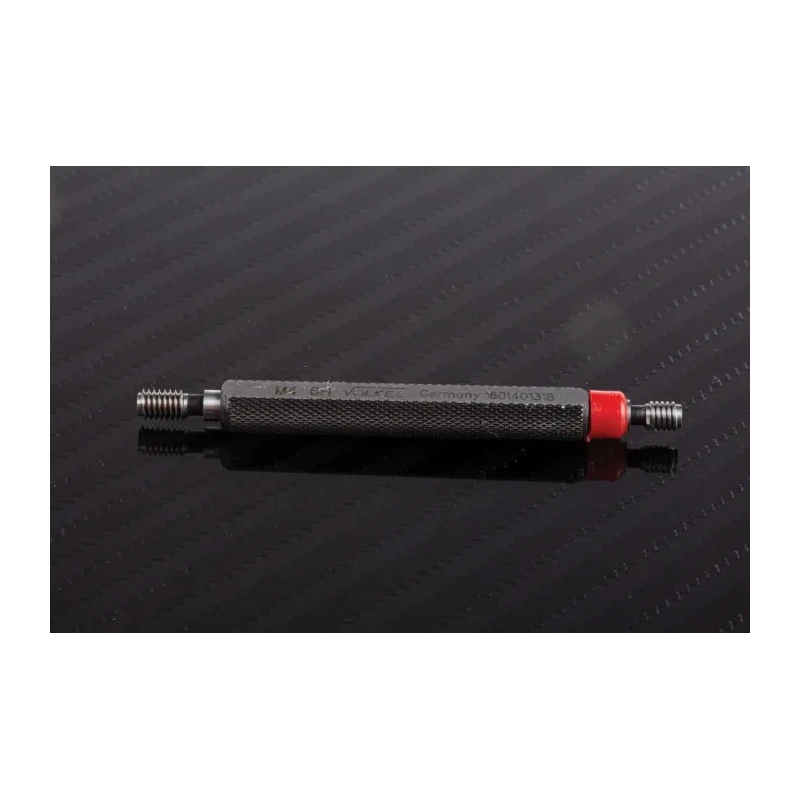

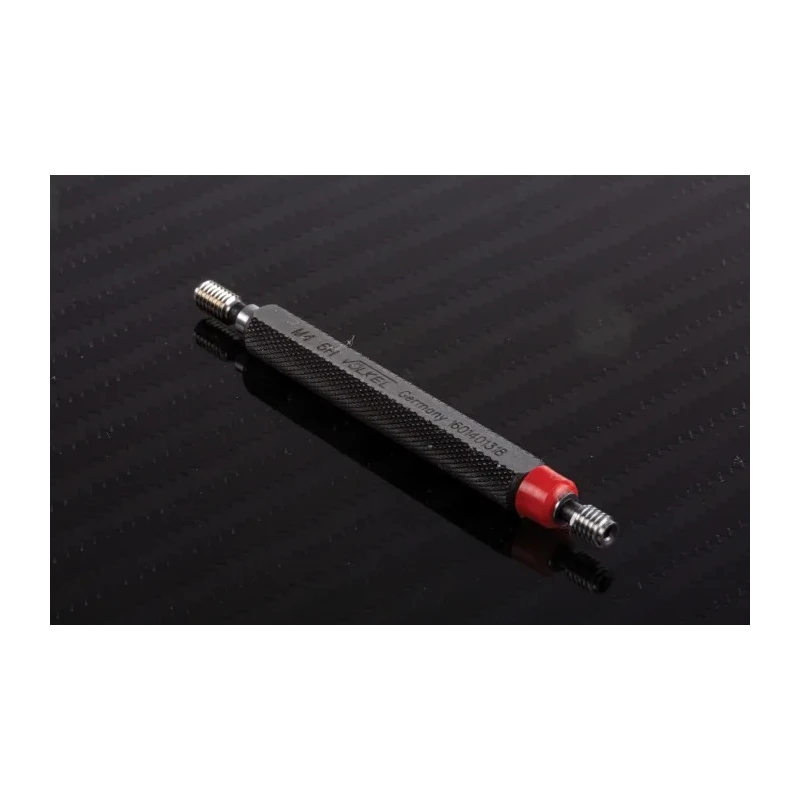

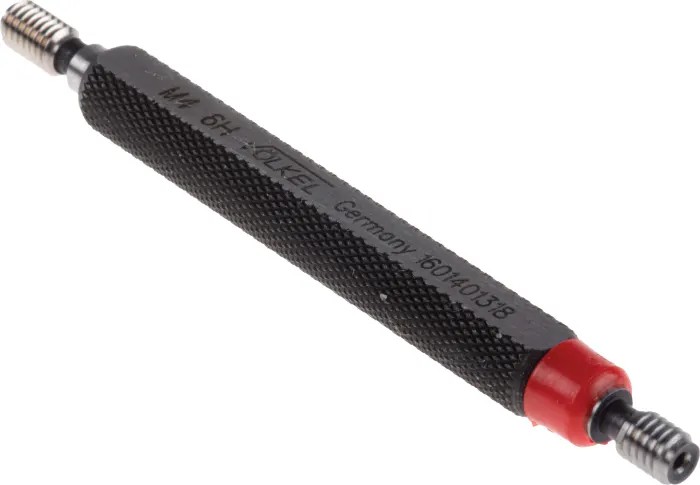

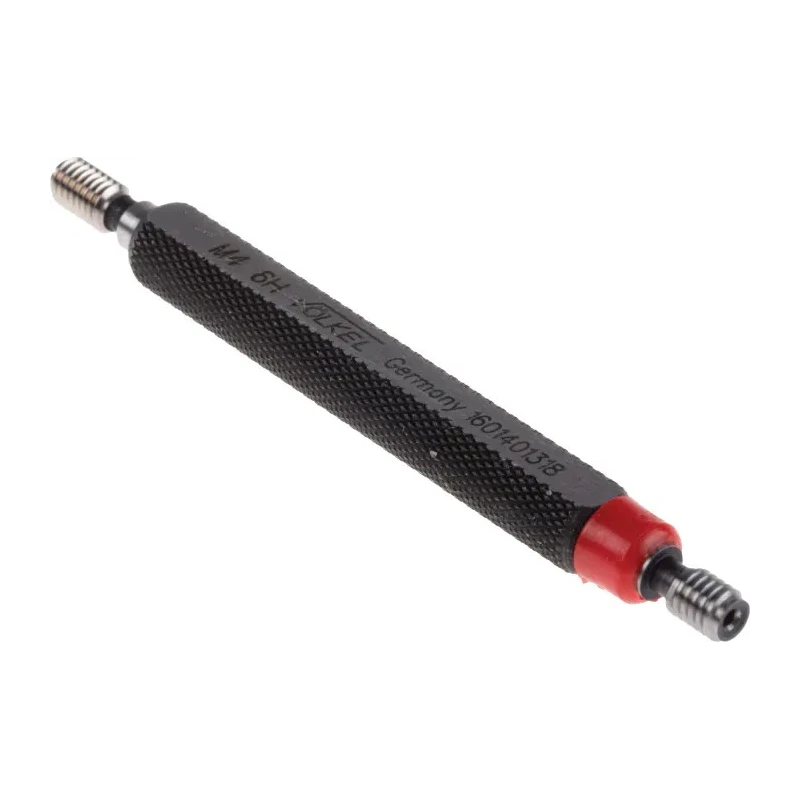

Volkel M4 x 0.7 Plug Thread Plug Gauge, 0.7 mm Pitch Diameter 16014

Volkel 16014 Plug Thread Plug Gauge M4 x 0.7 is a high-quality double ended plug gauge specifically designed for precision measurement of threads with a 0.7 mm pitch diameter. This tapered plug gauge conforms to DIN ISO 1502 standards and is manufactured in Germany, ensuring exacting quality and reliability.

The gauge serves as both a Go and No-Go gauge combined, simplifying inspection tasks by allowing operators to verify dimensional compliance efficiently. The No-Go (scrap) side is marked red for immediate visual differentiation. The gauge has been calibrated at certified measurement laboratories using IAC thread scanners, guaranteeing its accuracy and traceability within industrial and manufacturing environments.

This tool is compact yet rugged, constructed from high-quality raw materials to withstand repeated use in quality control and engineering applications. It is ideally suited for industrial, laboratory, manufacturing, and mechanical workshop use to verify thread conformity on M4 x 0.7 metric threaded components.

Using this gauge requires screwing it by hand more than two threads into the part to confirm correct thread size and tolerance, ensuring parts meet design specifications before assembly or shipment.

Combination of Go and No-Go plug gauge ensures accurate inspection. The scrap side is marked with a red ring for clear identification. Calibrated at measurement laboratories using IAC thread scanners. Compact, rugged design offers high durability and reliability.

Complies with DIN ISO 1502 standards to assure quality. Metric system measurement with 6h gauge tolerance. Tapered plug gauge suitable for M4 x 0.7 threaded parts. Must screw into the part by hand more than two threads for conformance.

This precise plug thread gauge is essential for quality assurance in industries requiring meticulous thread verification, including industrial manufacturing, mechanical engineering, and laboratory testing environments.
