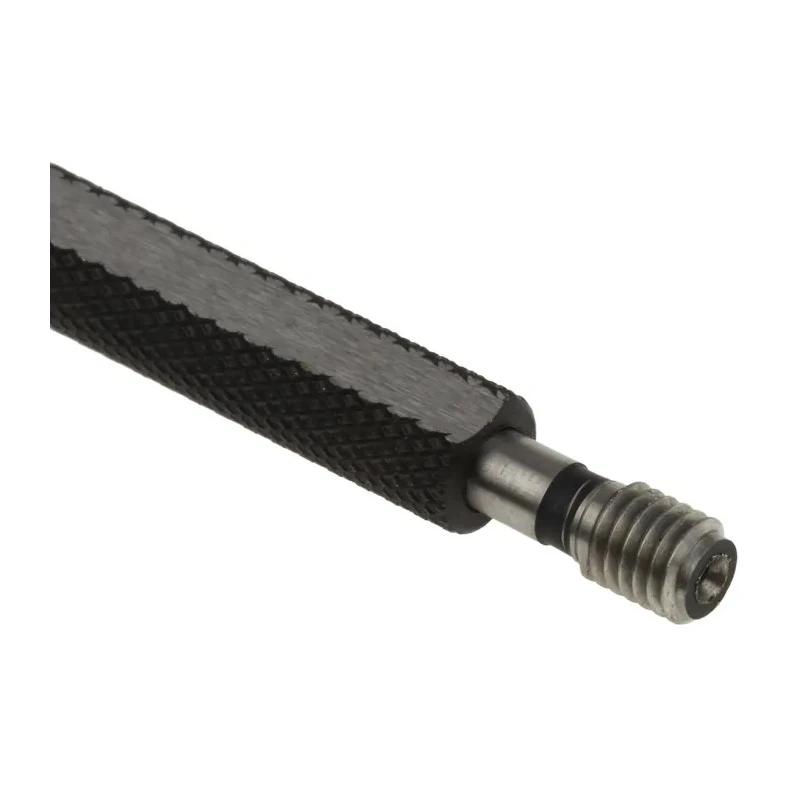

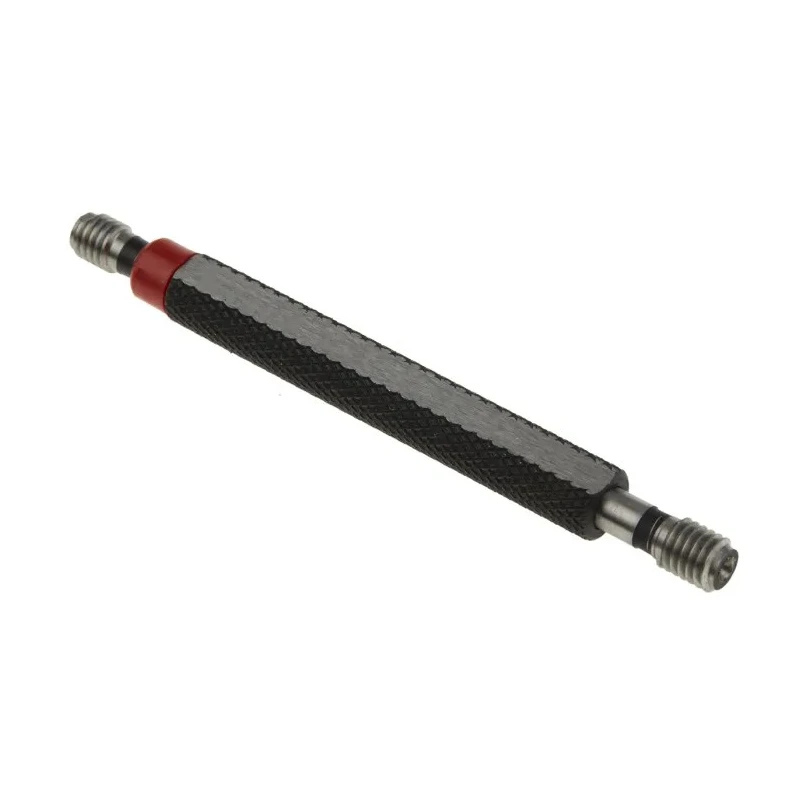

Volkel M5 x 0.8 Plug Thread Plug Gauge Double Ended Tapered 6h Tolerance 0.8 mm Pitch Diameter 16016

Volkel 16016 Plug Thread Plug Gauge M5 x 0.8 is a precision engineering measuring tool used primarily for the inspection of metric threaded components to ensure compliance with specified dimensional standards. This plug gauge is double ended and tapered with a gauge tolerance of 6h, suitable for detailed thread pitch inspection.

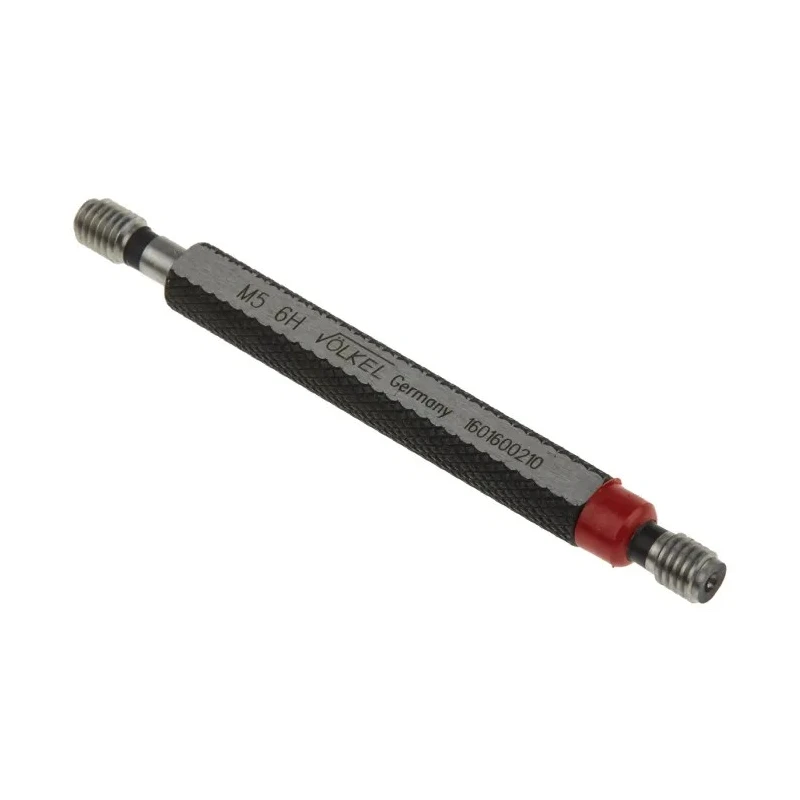

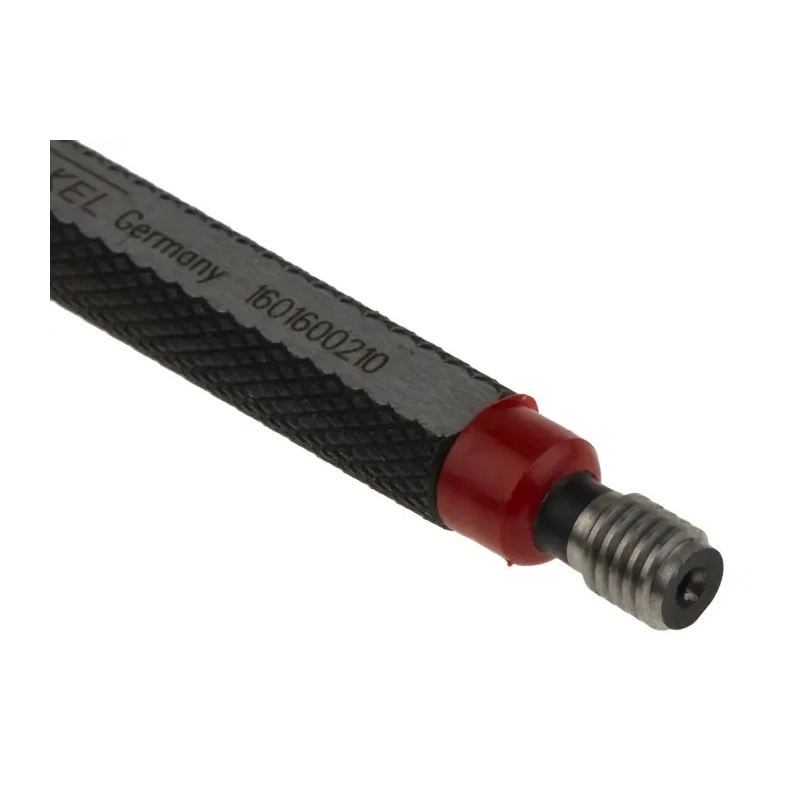

Manufactured in Germany from high-quality raw materials, this gauge ensures durability and reliability in demanding industrial environments including manufacturing, quality control laboratories, and engineering testing facilities. The scrap side of the gauge is marked with a red ring, providing a clear visual cue during inspections.

The gauge is calibrated at a measurement laboratory using IAC thread scanners, guaranteeing accuracy and consistency in measurements. It must screw into the inspected part by hand for at least two full threads; failure to do so indicates non-compliance with thread specifications and standards.

This tool supports the metric measurement system and is designed specifically for M5 x 0.8 thread size with a pitch diameter of 0.8 mm. Its tapered form factor allows for smooth entry and reliable assessment of internal threads.

Calibrated using IAC thread scanners ensuring high measurement accuracy. Scrap side marked with a red ring for easy identification. Requires manual screwing into parts beyond two threads for verification. High durability from premium raw materials.

Tapered, double ended design improves inspection precision. Compliance with DIN ISO 1502 ensures industry standard measurement. Metric system compatible for M5 x 0.8 thread sizes. Ideal for industrial, manufacturing, and engineering quality control applications.

This plug thread gauge is an essential tool for maintaining production quality, reducing manufacturing defects, and ensuring that components meet stringent thread tolerances. It is widely used across various sectors including automotive, aerospace, machinery, and tooling industries.

Discover the complete range of precision gauges and thread measurement tools available to professionals on EnvMart to enhance your industrial toolset and quality assurance processes.
