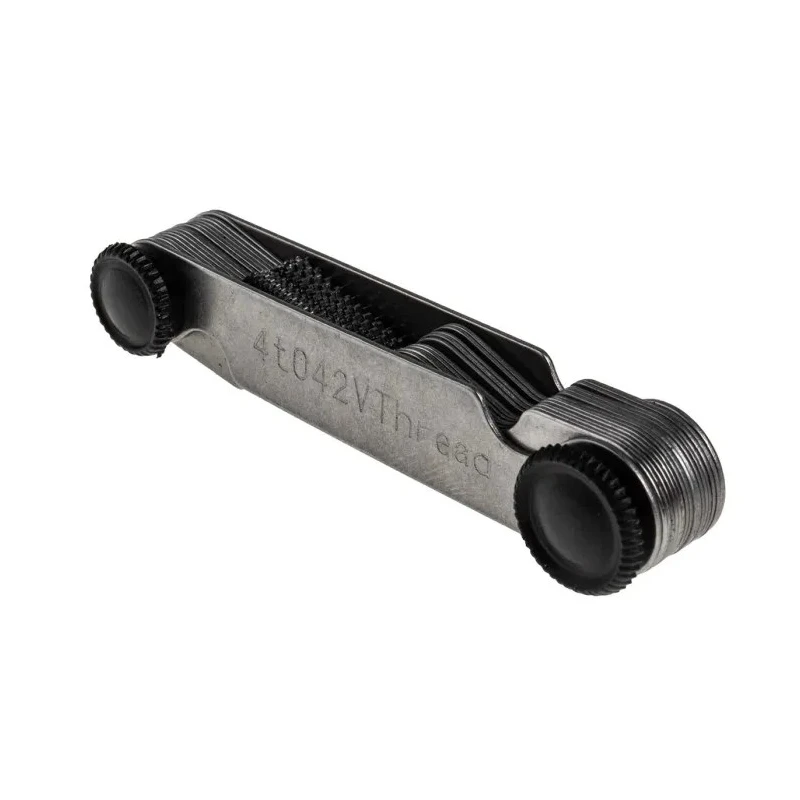

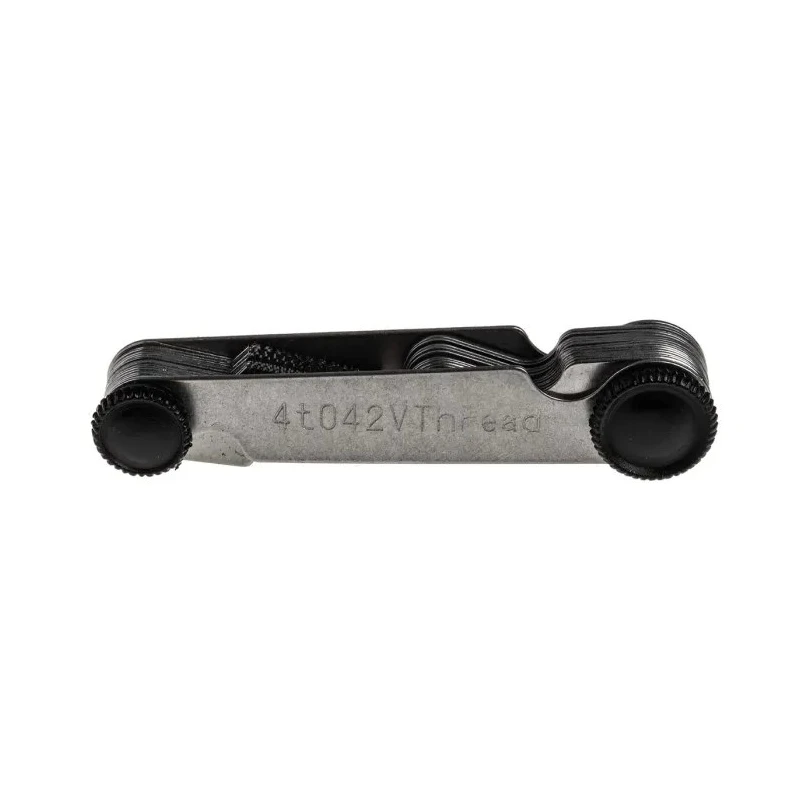

RS PRO Thread Pitch Gauge Imperial Type 30 Blades 4-42 TPI Measurement 683-0743
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 683-0743 |
| Number of blades | 30 |
| Thread Type | Imperial |
| Standards/Approvals | CE |
| Minimum Metric Measurement | 4mm |
| Maximum Metric Measurement | 42mm |
| Maximum Imperial Measurement | 42TPI |
| Minimum Imperial Measurement | 4TPI |
| Neill Tools, 30 Blades Thread Pitch Gauge, Imperial thread typeBrand | Neill Tools |
| RS PRO, 28 Blades Thread Pitch Gauge, Metric thread typeBrand | RS PRO |
Key Features
- The gauge measures both internal and external imperial thread pitches precisely.
- It features 30 blades for a broad range of pitch measurements.
- The blades fold into the steel case for protection and easy storage.
- Spring-loaded knurled knobs secure blades safely during use.
- The 60° thread angle design matches standard imperial thread profiles.
- The sturdy steel case protects blades from damage in industrial environments.
- Useful for categorizing and verifying thread matches in engineering and manufacturing.
- Compact penknife style allows for convenient field and workshop use.
Product Description
RS PRO 683-0743 Thread Pitch Gauge Imperial Type is a precision measuring tool designed for quick and accurate measurement of imperial screw, nut, and bolt thread pitches. Featuring 30 milled steel blades, this gauge covers a wide range of 4 to 42 threads per inch (TPI), enabling fast thread gradient determination without calculations.

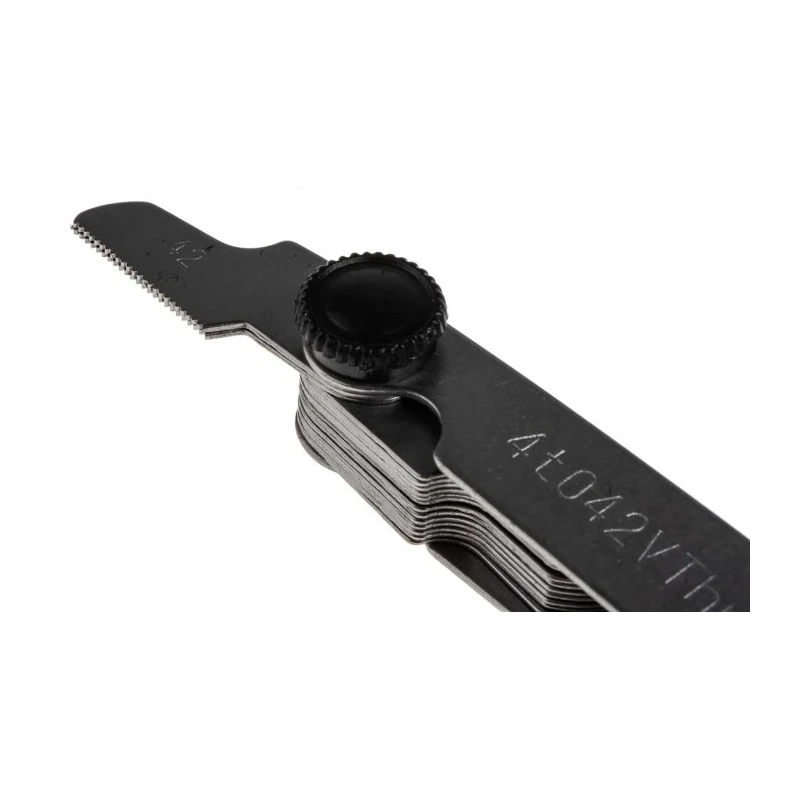

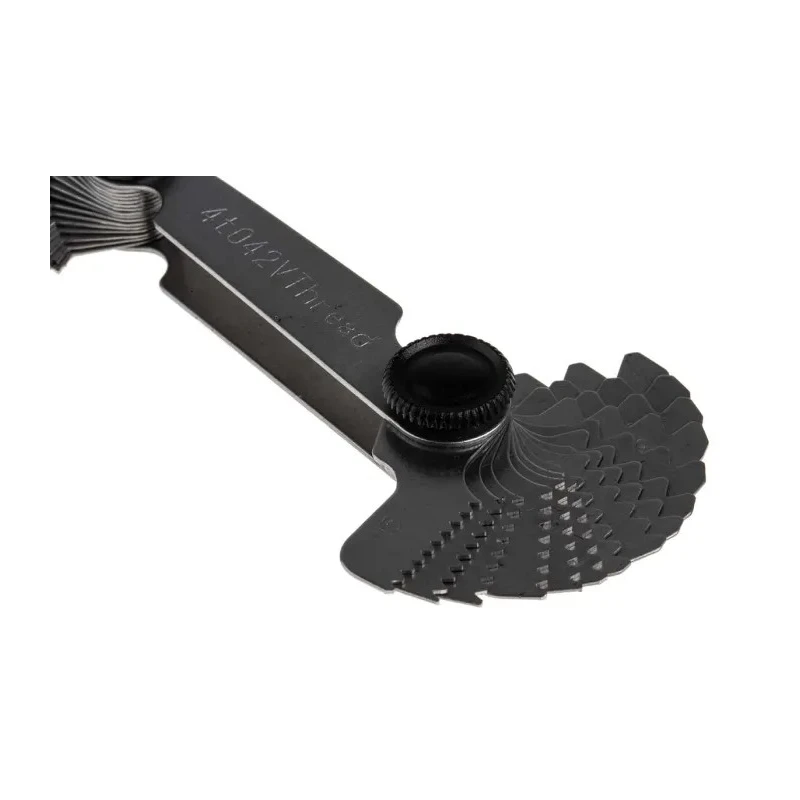

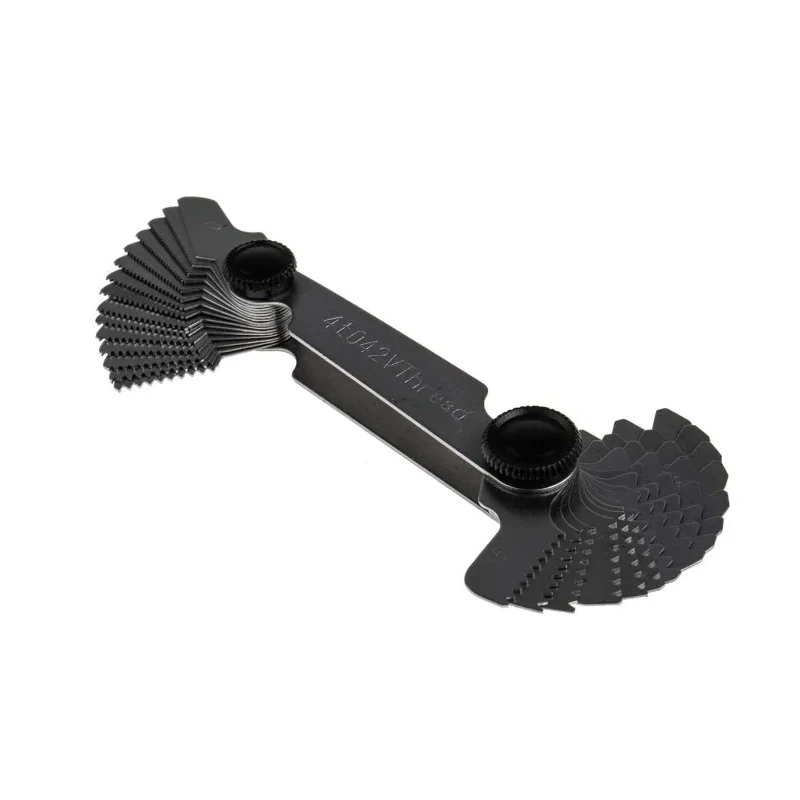

Each blade's narrow profile permits measurement of both internal and external threads with a 60° angle, matching standard imperial threads. The blades fold securely into a robust steel case, protected by spring-loaded knurled knobs at each end to hold blades in place when in use or storage.
This thread pitch gauge is essential for engineers, maintenance professionals, and machinists who need to categorize threads and ensure compatibility of external and internal threaded parts on construction sites, manufacturing plants, laboratories, and workshops.
The compact, penknife-style design facilitates ease of transport and use in diverse industrial, automotive, and mechanical engineering environments. The thread pitch gauge includes 30 milled steel blades for comprehensive measurement coverage.
Imperial thread type measurement from 4 to 42 TPI ensures versatility. 60° blade angle accurately fits standard imperial thread profiles. Robust steel case enhances durability and blade protection. Spring-loaded knobs secure blades during operation and storage.
Compact form factor suitable for field and shop use. Ideal for identification and verification of threads in mechanical assembly.
RS PRO products are rigorously tested to meet industry standards, providing trusted quality for engineering and test measurement applications. This thread pitch gauge supports efficient, accurate thread identification and quality control processes.
Explore more precision measurement tools and gauges in the Industrial Tools & Equipment category at EnvMart for reliable and accurate thread gauging solutions.
Explore more products in our Thread Gauges category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures imperial thread pitches from 4 to 42 threads per inch (TPI).
The gauge is designed to measure both internal and external imperial thread pitches.
The blades are designed with a 60° angle, which matches standard imperial thread profiles.
The gauge features milled steel blades and a robust steel case for protection and durability.
Spring-loaded knurled knobs hold the blades securely in place during operation and storage.
Its penknife-style design facilitates ease of transport and use in various industrial and mechanical engineering environments.
Yes, this thread pitch gauge is CE approved, indicating compliance with relevant safety and health standards.
The country of origin for this model is China.
The narrow profile of each blade allows for precise measurement of both internal and external threads without calculations.
It supports efficient and accurate thread identification, which is crucial for quality control in mechanical assembly.
