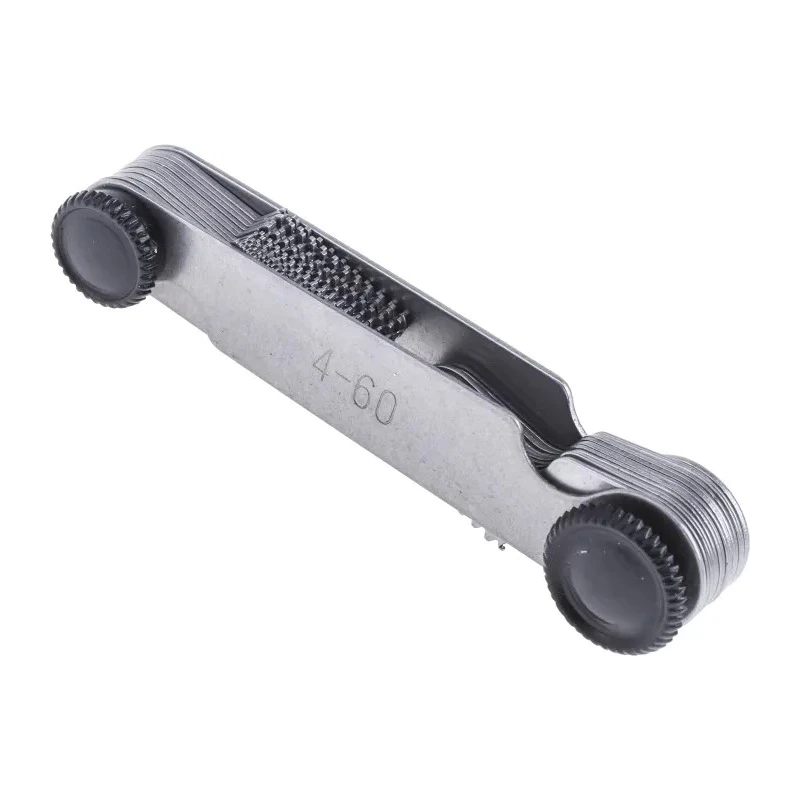

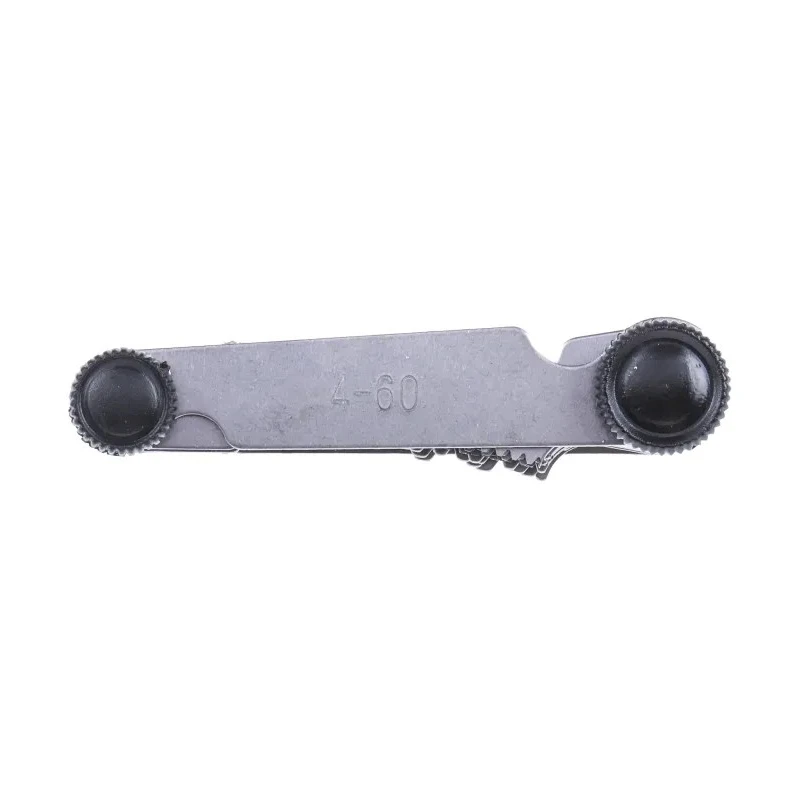

RS PRO 27 Blades Thread Pitch Gauge Imperial Type 4-60 TPI 4-60 mm 683-0756

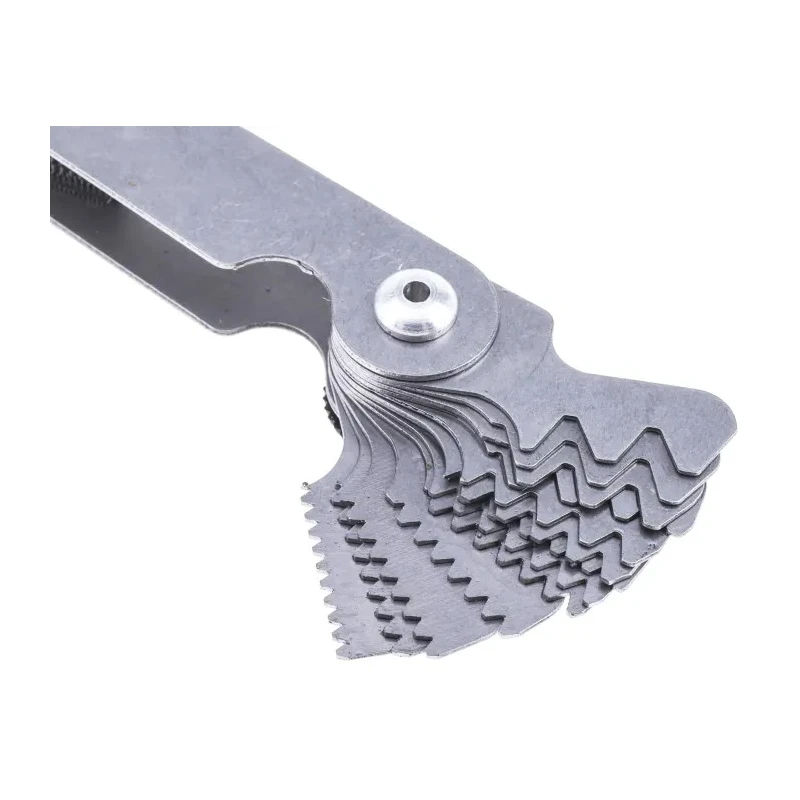

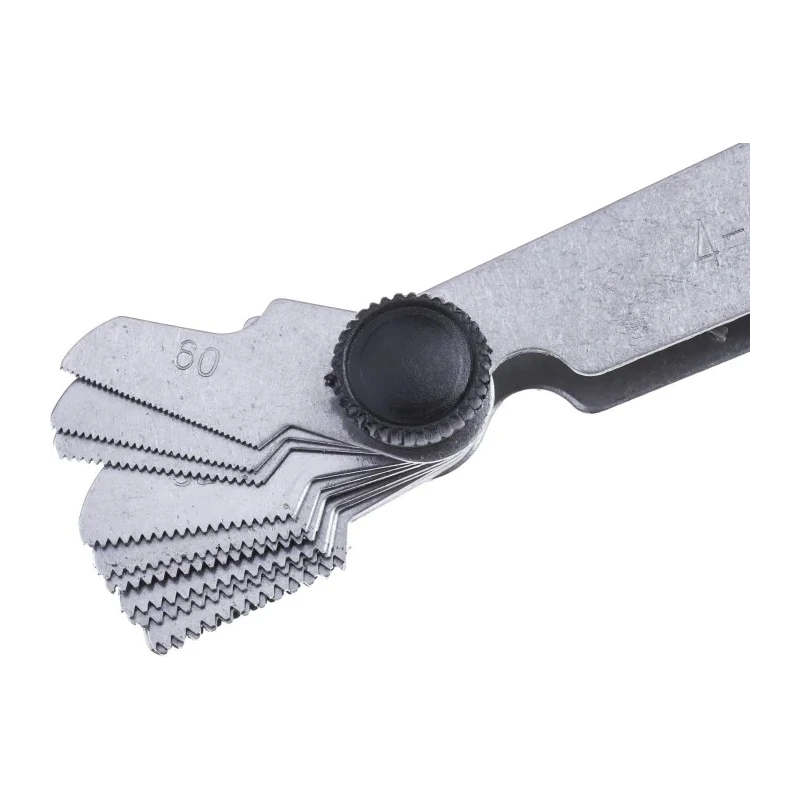

RS PRO 683-0756 27 Blades Thread Pitch Gauge is a precision measuring tool designed for identifying the pitch of screw threads accurately. This imperial thread type gauge features 27 blades, accommodating thread pitch measurements ranging from 4 to 60 threads per inch (TPI) and metric measurements ranging from 4 mm to 60 mm. The blades are organized in two groups on either end of a penknife-style handle, secured by a screwable locking device that provides stability and safety when measuring or transporting the tool.

The gauge is designed to measure Unified, American National, and Whitworth thread profiles, making it suitable for a wide range of industrial applications. Its compact and robust design ensures ease of use in workshop environments, manufacturing settings, and engineering test measurements.

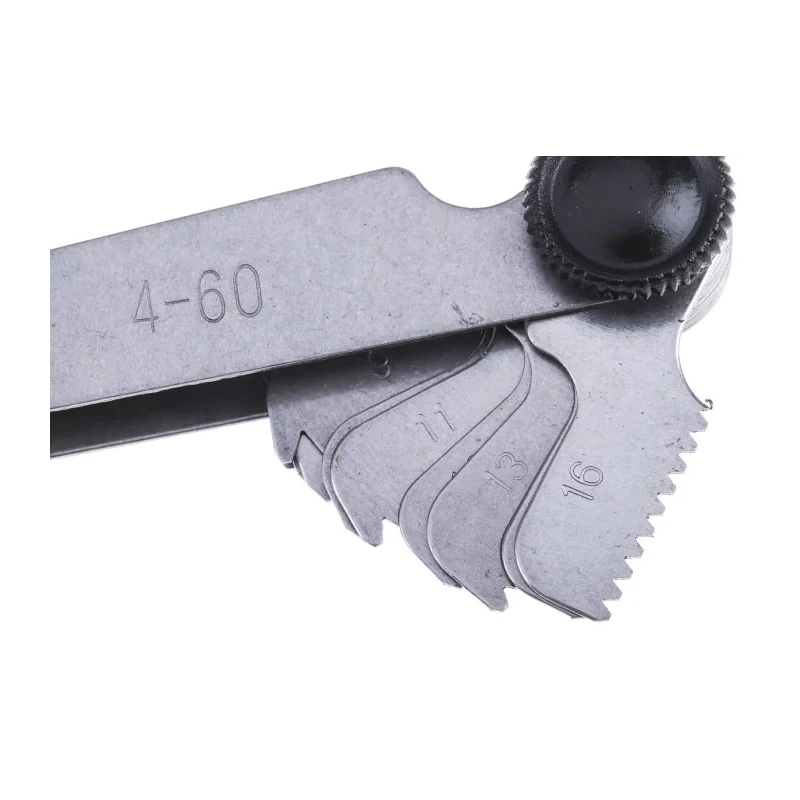

The locking mechanism stabilizes the blades during measurement to improve accuracy and secures them safely when retracted. The tool's blades cover a comprehensive size range, including 4, 4-1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 48, and 60 TPI.

The gauge offers 27 blades for accurate pitch identification. Imperial measurement range from 4 to 60 threads per inch. Metric measurement range from 4 mm to 60 mm. Screwable locking device ensures blade stability and safety.

Suitable for Unified, American National, and Whitworth thread profiles. Compact penknife-style handle provides portability. Ideal for industrial, workshop, and manufacturing use.

This RS PRO thread pitch gauge complies with CE standards and is manufactured in China. It is a reliable choice for professionals requiring precise thread measurement in engineering and industrial test applications. Explore more in the Thread Gauges category to find additional tools and accessories to complement your measurement needs.
