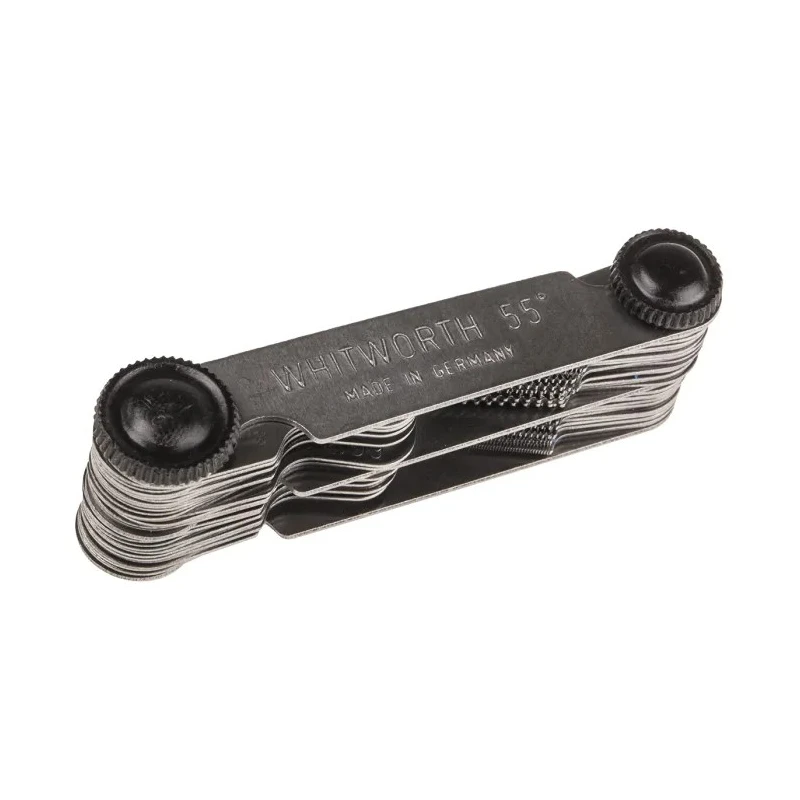

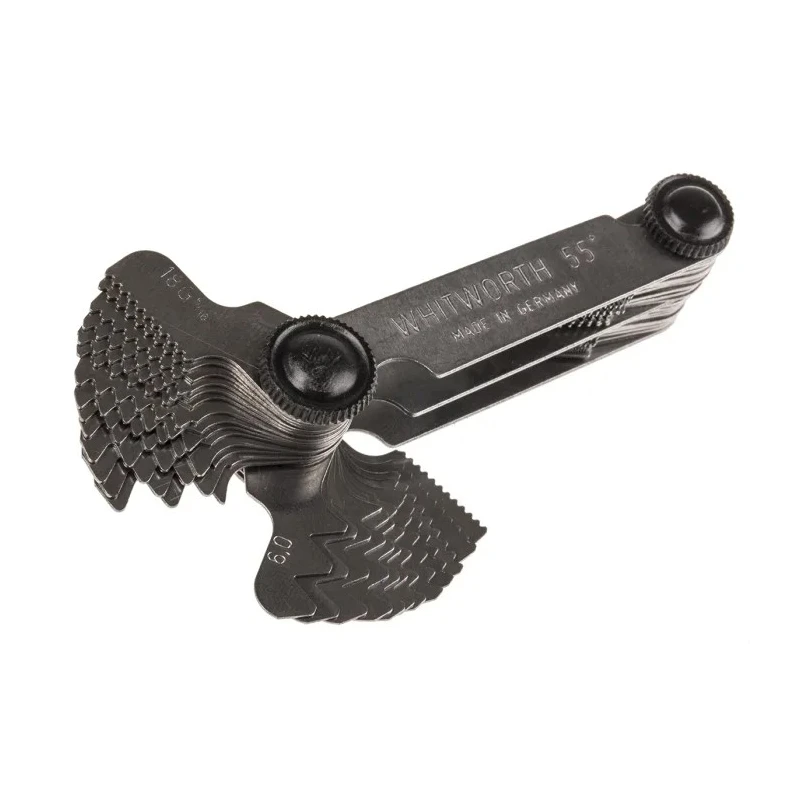

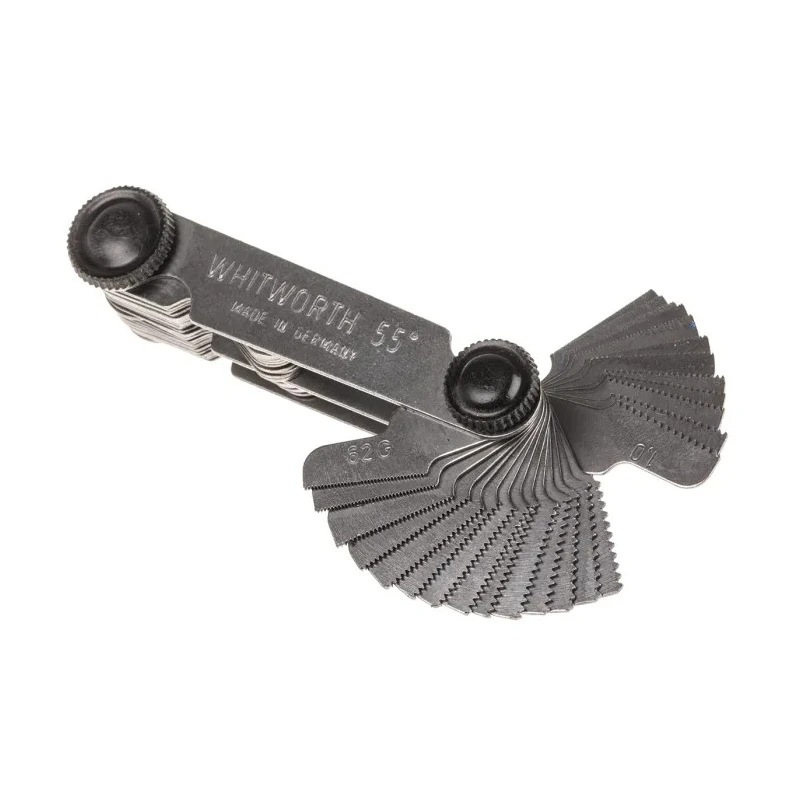

MikronTec 52 Blades Thread Pitch Gauge, 4-62 TPI, 0.25-6 mm Range 304-9193

The MikronTec 304-9193 Thread Pitch Gauge is a professional-grade tool equipped with 52 precision blades for measuring thread pitches ranging from 4 to 62 TPI (threads per inch) and 0.25 mm to 6 mm in metric measurements. Brand MikronTec delivers exceptional accuracy with this gauge, which is designed to determine the gradient for both external and internal threads.

This tool is indispensable for machinists and engineers who need to verify thread angles during metal turning lathe operations. The blades precisely fit into the V-shaped slots on thread cutting tools, enabling accurate angle measurement and quality assurance of thread cutting processes.

Each blade is individually stamped with accurately formed thread profiles, and the rotary switch mechanism allows smooth adjustment to select the desired pitch. This feature enhances efficiency and ease of use in demanding workshop and manufacturing settings.

The gauge’s applications include machining, fabrication, workshops, and manufacturing, where precise thread measurement is critical. It supports quality control procedures and thread verification across industrial, mechanical, and engineering environments.

Compliant with recognized standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, this gauge meets rigorous electrical safety and electrostatic discharge requirements. Originating from Germany, this product reflects high manufacturing standards and durability.

This pitch gauge accurately measures internal and external screw threads. Contains 52 carefully crafted blades with stamped thread profiles. Rotary switch allows free and precise blade selection. Designed for verifying thread angles on cutting tools.

Excellent for use in machining, fabrication, and manufacturing industries. Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards. Manufactured in Germany ensuring reliable quality performance. Explore the selection of Thread Gauges and measuring tools available at EnvMart to support your industrial and engineering requirements.
