STMicroelectronics Demonstration Board Power Management for ST1S40 PWM Synchronous Step-Down Regulator STEVAL-ISA084V1

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Demonstration Board Power Management for ST1S40 PWM Synchronous Step-Down Regulator STEVAL-ISA084V1

Name: STMicroelectronics Demonstration Board Power Management for ST1S40 PWM Synchronous Step-Down Regulator STEVAL-ISA084V1
Brand: STMicroelectronics
SKU: 421859
Price: 60.94 USD
Availability: InStock



Category Power Management Brand STMicroelectronics Condition New

Specifications

Country of Origin	Italy
Brand	STMicroelectronics
Model	STEVAL-ISA084V1
Switching Frequency	800 kHz
For Use With	PWM Synchronous Step-Down Regulator
Maximum Output Current	4 A
Standards/Approvals	RoHS
Kit Classification	Evaluation Board
Featured Device	ST1S40
Kit Name	Demonstration Board
Short-circuit	protected
Vin	4 V to 18 V
Vout	3.3 V

Key Features

Operates with input voltage range from 4 V to 18 V.
Regulates output voltage as low as 0.8 V up to VIN with 100% duty cycle.
Maximum output current capacity of 4 A.
Fixed switching frequency of 800 kHz ensures efficient operation.
Integrated 95 mΩ high side switch and 69 mΩ synchronous rectifier for high efficiency.
Provides robust protection including cycle-by-cycle current limiting and short-circuit current foldback with frequency reduction.
Compact design with minimum component count for simplified implementation.
Includes enable on/off functionality for controlled operation.

Product Description

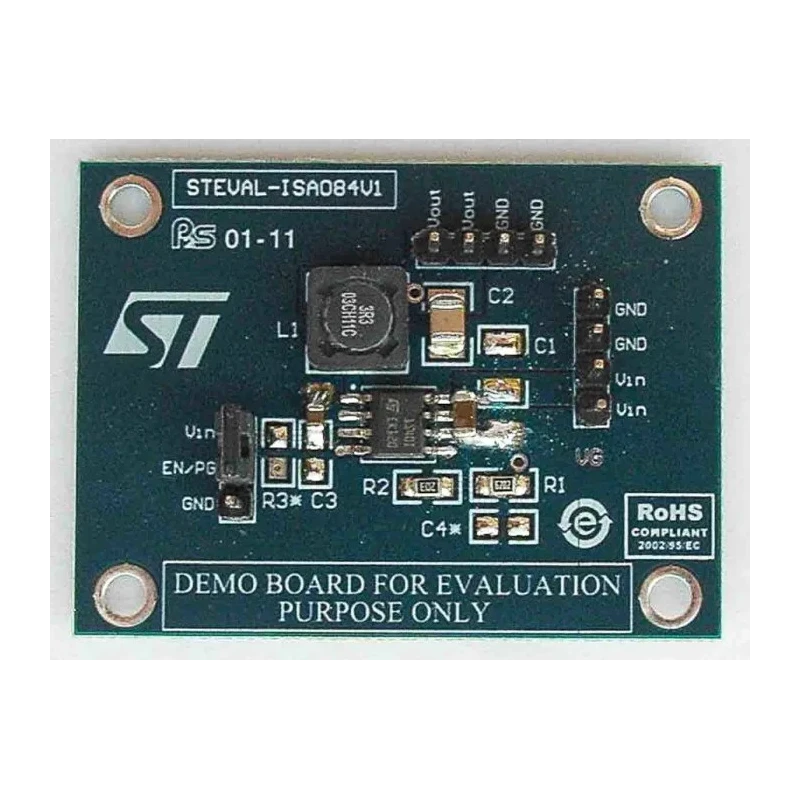

STMicroelectronics STEVAL-ISA084V1 is a demonstration board designed for power management applications using the ST1S40 PWM synchronous step-down regulator. This evaluation board supports input voltages ranging from 4 V to 18 V and can regulate output voltages as low as 0.8 V up to the input voltage with a 100% duty cycle. The ST1S40 device integrates a 95 mΩ high side switch and a 69 mΩ synchronous rectifier, providing very high efficiency even at low output voltages.

With a fixed switching frequency of 800 kHz, the converter achieves optimal efficiency with minimal external components, resulting in a compact and cost-effective solution. The device features peak current mode control with internal compensation to maintain stable and reliable performance across varying load conditions.

The demonstration board delivers a maximum output current of 4 A, suitable for a wide range of power management applications. It includes advanced protection features such as cycle-by-cycle current limiting to prevent overload, as well as current foldback with frequency reduction during short-circuit events for enhanced safety and device protection.

Additional on/off enable functionality allows precise control over the converter operation, making the STEVAL-ISA084V1 ideal for development and evaluation of power management circuits in industrial, electronic, and embedded system applications.

Operates from 4 V to 18 V input voltage range. Output voltage adjustable down to 0.8 V and up to VIN. Maximum output current rating of 4 A for robust power delivery. Fixed switching frequency at 800 kHz for efficient regulation.

High efficiency internal switches with low resistance. Integrated safety features including current limiting and short-circuit protection. Compact evaluation board design reduces component count.

This product is designed with industrial electronic engineers and developers in mind, providing a reliable platform for power management design and testing for applications such as embedded systems, motor control, and general electronics power supply solutions.

As a RoHS-compliant device made in Italy, it meets environmental and quality standards required for modern electronic components. Discover more Power Management solutions and development kits by browsing the specialized categories in EnvMart.
