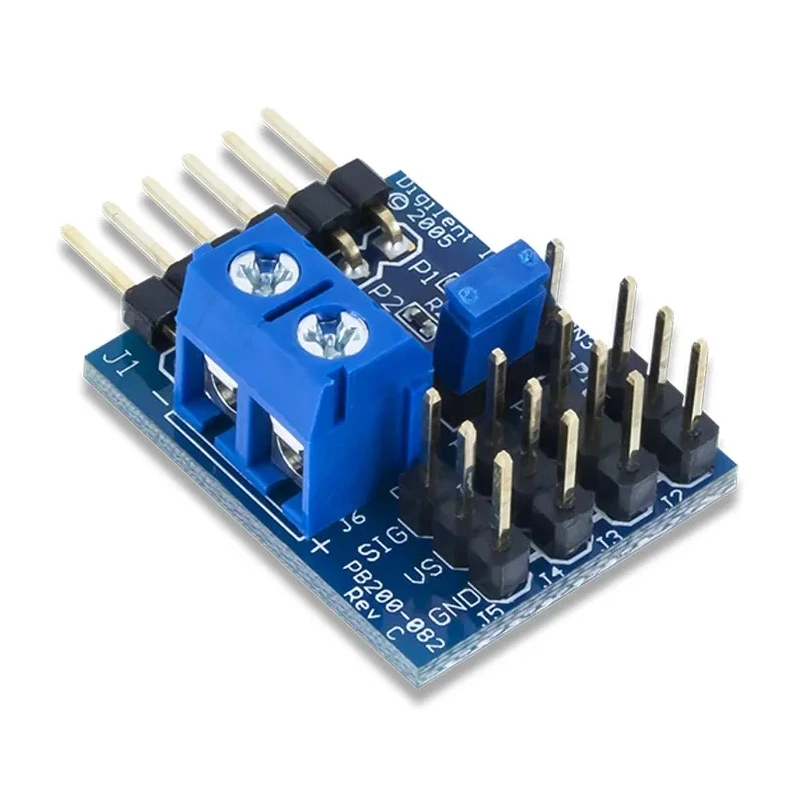

Digilent PmodCON3 High Bridge Driver Plug-In Module with Quad Servomotor Interface PmodCON3

Digilent PmodCON3 High Bridge Driver is a specialized plug-in module designed for precise control of hobby servomotors. Featuring a quad servomotor interface, it provides four standard 3-pin connectors enabling simultaneous control of up to four servomotors. The module operates with a requirement for 50Hz PWM control signals, standard in servo control applications.

The PmodCON3 supports external servo power supply through a screw connector option, ensuring flexibility in Power Management. A jumper link is available for easy selection of the power supply source, enhancing usability in complex setups.

Communication and control signals are implemented through a 6-pin Pmod connector, fully complying with the Digilent Pmod Interface Specification Type 1, facilitating compatibility with a range of Digilent development boards and other Pmod-enabled devices.

With compact dimensions of 25 x 20 mm, the module is suitable for educational, robotics, prototyping, and embedded system projects where space and interfacing precision are critical.

Supports up to four 3-pin hobby servomotors simultaneously. Requires 50Hz PWM control signals for servo operation. Screw connector available for external servo power supply integration. Power supply source selectable via jumper link.

Compatible with Digilent Pmod Interface Specification Type 1. Compact 25 x 20 mm dimension enables integration in tight spaces.

This high bridge driver module is ideal for use in robotics, automation systems, motor control applications, STEM education kits, and embedded development projects where reliable and precise servo control is essential. Its compact size and standard interface make it an excellent addition to development boards supporting Pmod modules.

Explore the full range of Digilent development tools, modules, and accessories on EnvMart for robust and effective solutions in electronics and embedded system designs.
