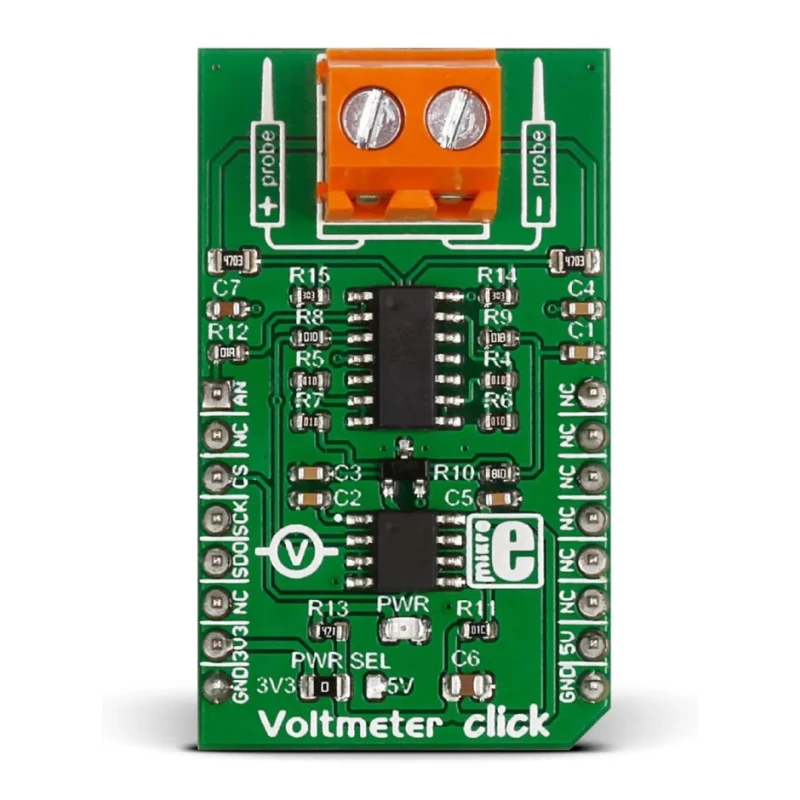

MikroElektronika Power Management Development Kit Voltmeter Click Voltage Measurement for MCP3201 for MikroBus MIKROE-2436
Specifications
| Country of Origin | India |
|---|---|
| Brand | MikroElektronika |
| Model | MIKROE-2436 |
| For Use With | MikroBus |
| Kit Classification | Shield |
| Featured Device | MCP3201 |
| Kit Name | Voltmeter Click |
Key Features
- The board measures voltage ranges from zero to 24 V.
- Equipped with MCP3201, a 12-bit analogue-to-digital converter with SPI interface.
- Includes MCP609 micropower CMOS operational amplifier for accurate measurements.
- Capable of measuring both positive and negative voltages.
- Powered through a 3.3 V or 5 V supply on the MikroBus socket.

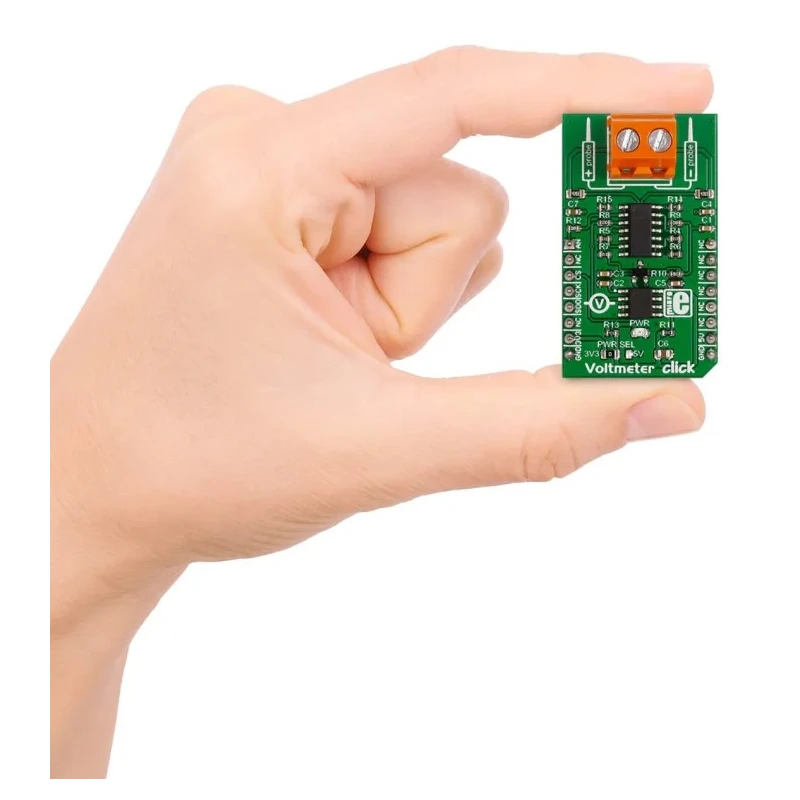

- Compact dimensions of 42.9 x 25.4 mm for easy integration.
- Click board supplied with header strips pre-soldered for immediate use.
- Designed primarily for power management and development applications.
Product Description
MikroElektronika MIKROE-2436 Power Management Development Kit Voltmeter Click is a compact MikroBus add-on designed for precise DC voltage measurement in electronic circuits. It supports voltage measurement within the range of 0 to 24 volts, making it suitable for a wide variety of power management and signal monitoring applications.
At the core, the development kit features the MCP3201, a 12-bit analogue-to-digital converter (ADC) with a SPI serial interface, enabling high-resolution voltage sampling and digital output. Complementing the ADC is the MCP609 micropower CMOS operational amplifier, which enhances signal accuracy and stability. This allows the device to measure both positive and negative voltage values effectively.

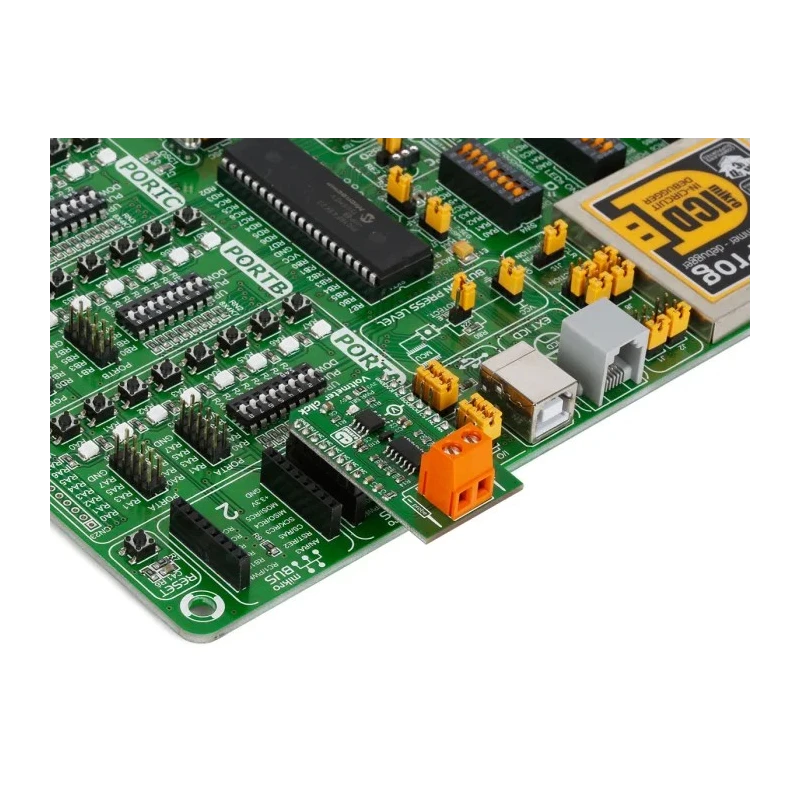

The board operates from either a 3.3 V or a 5 V power supply, conveniently drawn from the MikroBus socket, facilitating easy integration with various development systems. Its physical dimensions are 42.9 mm in length and 25.4 mm in width, making it a compact solution for embedded system development and prototyping.
The voltmeter click board comes with header strips soldered on, ensuring immediate deployment without additional assembly. It is primarily aimed at engineers, developers, and technicians working in industrial automation, electronics development, and power management fields.
The board supports DC voltage measurement ranging from 0 to 24 volts. Utilizes MCP3201 12-bit ADC with SPI interface for precise voltage conversion. Features MCP609 micropower CMOS op-amp for accurate signal amplification.
Measures both positive and negative voltages offering versatile applications. Operates on 3.3 V or 5 V power supply via MikroBus socket. Compact and lightweight design of 42.9 x 25.4 mm for easy mounting. Header strips pre-soldered for plug-and-play readiness.
Ideal for power management, electronics development, and prototyping tasks.
This product is widely applicable in industrial machines, laboratory instruments, electronics prototyping, and HVAC systems where precise voltage monitoring is critical. EnvMart customers can explore this and similar products under the Power Management and Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltmeter click board measures voltage in the range of 0 to 24 volts.
It features the MCP3201, a 12-bit analogue-to-digital converter with a SPI interface for precise voltage conversion.

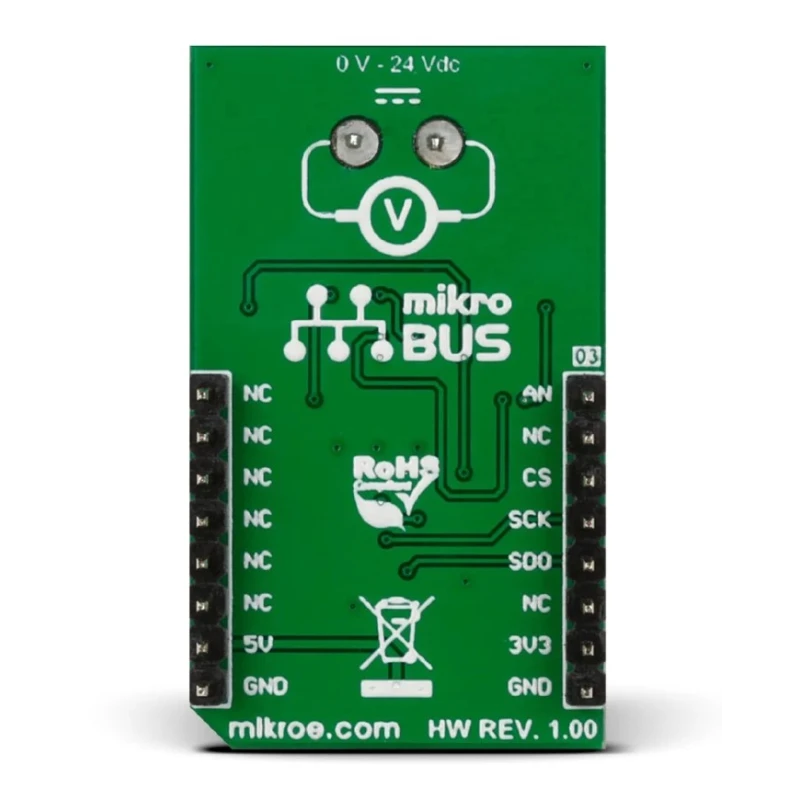

It can be powered through a 3.3 V or 5 V supply via the MikroBus socket.
The board has compact dimensions of 42.9 mm in length and 25.4 mm in width.
Yes, it is capable of measuring both positive and negative voltage values.
The kit includes the MCP609 micropower CMOS operational amplifier for enhanced signal accuracy and stability.
Yes, it comes with header strips pre-soldered for plug-and-play readiness, allowing for immediate deployment.
It is suitable for power management, electronics development, industrial machines, laboratory instruments, and HVAC systems.
This kit is classified as a Shield, specifically designed for use with MikroBus.
It is primarily designed for precise DC voltage measurement in electronic circuits, making it suitable for various power management applications.
The country of origin for this product is India.
The featured device on this board is the MCP3201, which is essential for the voltage measurement functionality.
