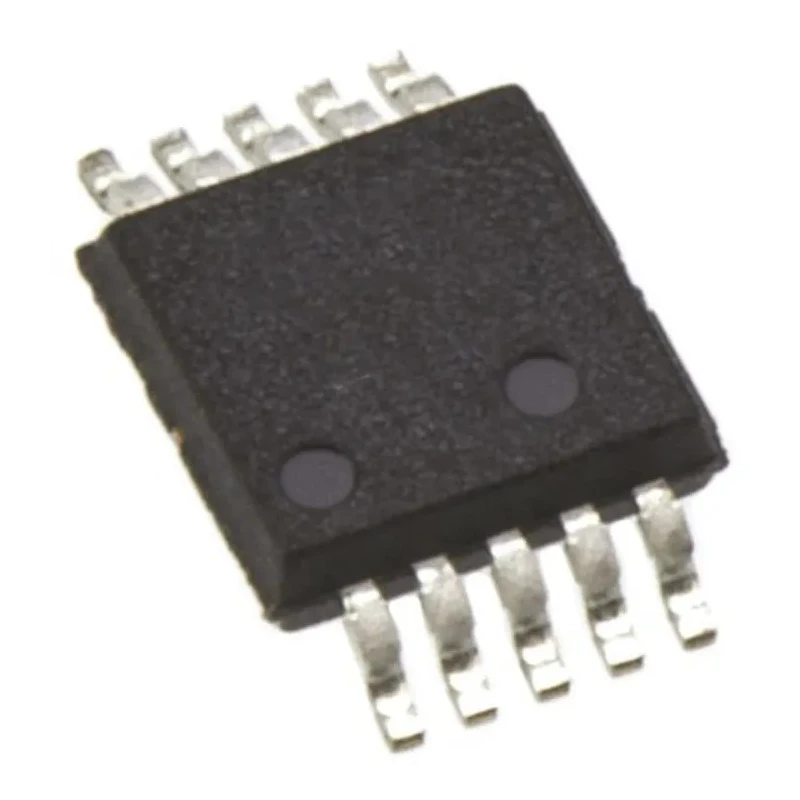

Analog Devices Microphone Signal Conditioning System, 10-Pin MSOP, Class A-B Amplifier, Surface Mount, SSM2167-1RMZ-R7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Analog Devices |
| Height | 1.1mm |
| Length | 3.1mm |
| Model | SSM2167-1RMZ-R7 |
| Width | 5.15mm |
| Mount Type | Surface |
| Series | SSM2167 |
| Maximum Operating Temperature | 85°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 10 |
| Maximum Supply Voltage | 6V |
| Amplifier Type | Microphone Amplifier |
| Amplifier Class | Class A-B |
| GBP - Gain Bandwidth Product | 1MHz |
Key Features
- Implements a low-noise voltage controlled amplifier with dynamically adjusted gain for a set compression characteristic.
- Automatic limiting feature prevents ADC overload and eliminates popping noises.
- Downward expander (noise gate) reduces background noise and hum.
- Operates within a voltage range of 6V and temperature range of -40°C to 85°C.
- Suitable for use in personal electronics, computer audio systems, and telecom equipment.
- Package features a surface-mount MSOP form factor with 10 pins.
Product Description
Analog Devices SSM2167-1RMZ-R7 is a high-performance microphone signal conditioning system in a 10-pin MSOP package designed for surface mounting. Featuring a Class A-B amplifier, it provides a flexible and complete solution for conditioning microphone inputs in personal electronics and computer audio systems.
The device incorporates a low-noise voltage-controlled amplifier with a dynamically adjusted gain controlled via a feedback loop to achieve a specific compression characteristic. The single resistor design enables adjustment of the compression ratio from unity to over 10:1, allowing for precise audio signal control and clarity enhancement.
An automatic limiting feature prevents analog-to-digital converter (ADC) overload by restricting signals above the rotation point, eliminating popping sounds and signal distortion. Its downward expander (noise gate) further enhances signal quality by suppressing background noise and hum, thus optimizing audio input prior to digitization.
Operating under a supply voltage of 6V, with a temperature range from -40°C to +85°C, this device offers reliable performance in various environmental conditions. Its compact dimensions - 3.1mm length, 5.15mm width, and 1.1mm height - make it well suited for compact and portable electronic applications.
This microphone amplifier system is ideal for applications such as karaoke machines, two-way communication devices, surveillance systems, communication headsets, DJ mixers, telecom equipment, palmtop computers, and desktop audio devices.
Featuring a surface-mount MSOP package with 10 pins, it simplifies integration on printed circuit boards (PCBs) and supports modern manufacturing techniques. Implements a low-noise voltage controlled amplifier with dynamically adjusted gain for set compression.
Adjustable compression ratio from 1:1 to over 10:1 via a single resistor. Automatic limiting feature prevents ADC overload and eliminates popping. Noise gate to reduce background noise and hum. Compact dimensions, suitable for surface mount applications.
Operates over a wide temperature range (-40°C to 85°C). Single channel amplifier with Class A-B configuration. Package type: MSOP with 10 pins. Explore more products in the Audio Amplifier ICs category at EnvMart for industrial, consumer electronics, and professional audio solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates under a supply voltage of 6V.
It operates within a temperature range of -40°C to 85°C.
The device has dimensions of 3.1mm in length, 5.15mm in width, and 1.1mm in height.
This unit supports a single channel configuration.
It is a Class A-B microphone amplifier.
An automatic limiting feature prevents ADC overload by restricting signals above the rotation point, eliminating popping sounds and distortion.
Gain is dynamically adjusted via a feedback loop, and the compression ratio can be set from unity to over 10:1 using a single resistor.
The Gain Bandwidth Product (GBP) for this model is 1MHz.
It features a surface mount configuration, suitable for integration on printed circuit boards (PCBs).
It is suitable for applications such as karaoke machines, two-way communication devices, surveillance systems, and desktop audio devices.
The SSM2167-1RMZ-R7 is manufactured in India.
This model has a pin count of 10.
