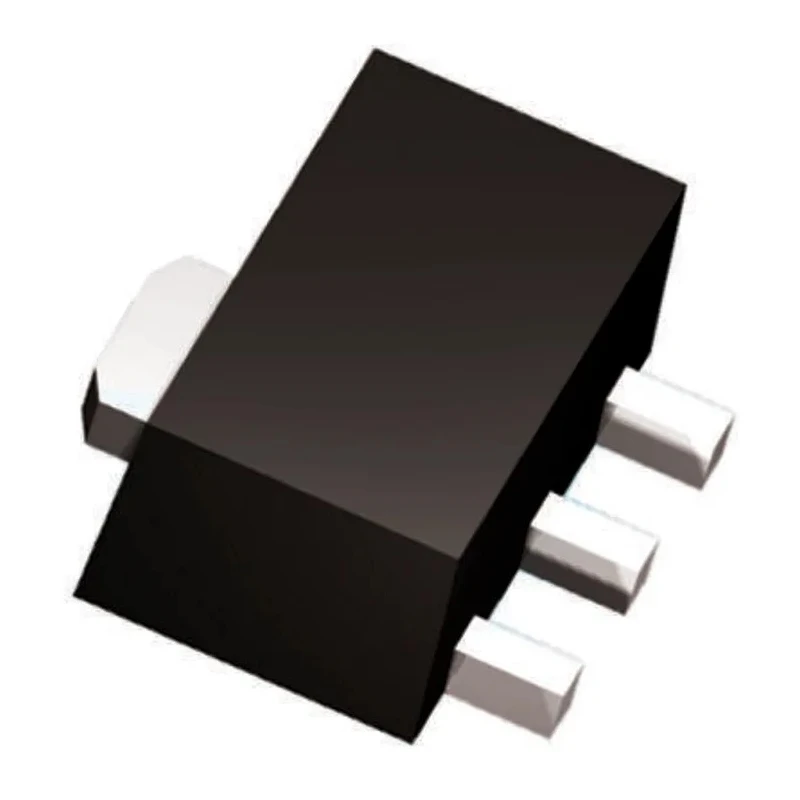

Analog Devices RF Amplifier Gain 15.9 dB, 3-Pin, 6GHz SOT-89 ADL5545ARKZ-R7

Analog Devices ADL5545ARKZ-R7 RF Amplifier is a high-performance gain amplifier designed for radio frequency applications up to 6 GHz. Packaged in a compact 3-pin SOT-89 surface mount package, it offers a gain of 15.9 dB, making it suitable for enhancing signal strength in communication and electronic systems.

This RF amplifier maintains a low noise figure of 5.2 dB, ensuring that signal integrity is preserved during amplification. It operates within a supply voltage range of 4.75 V to 5.25 V and can withstand operating temperatures from -40°C to 105°C, confirming its robustness for industrial and commercial use.

The device features a P1dB compression point of 9.4 dBm, defining the input power at which the amplifier gain compresses by 1 dB, critical for understanding linearity and performance in signal processing chains. Its small size with a length of 4.6 mm and height of 1.6 mm allows for efficient mounting in compact systems.

Ideal applications include RF signal boosting in wireless communication equipment, radio transceivers, and other RF circuit designs requiring reliable amplification. Its surface mount design aids automated assembly processes, improving production efficiency.

Operates at frequencies up to 6 GHz for high-frequency signal amplification. Maintains a noise figure of 5.2 dB to minimize signal distortion. Wide supply voltage range from 4.75 V to 5.25 V. Compact 3-pin SOT-89 surface mount package for space-efficient PCB layouts.

Handles operating temperatures from -40°C to 105°C ensuring durability. P1dB compression point of 9.4 dBm offers reliable power handling capability. Designed specifically for RF amplification in industrial, HVAC, telecom, and manufacturing settings.

Select this Analog Devices ADL5545ARKZ-R7 RF Amplifier for high gain, compact, and robust RF amplification solutions. Explore more RF Amplifiers and Analog Devices products at EnvMart for your technical needs.
