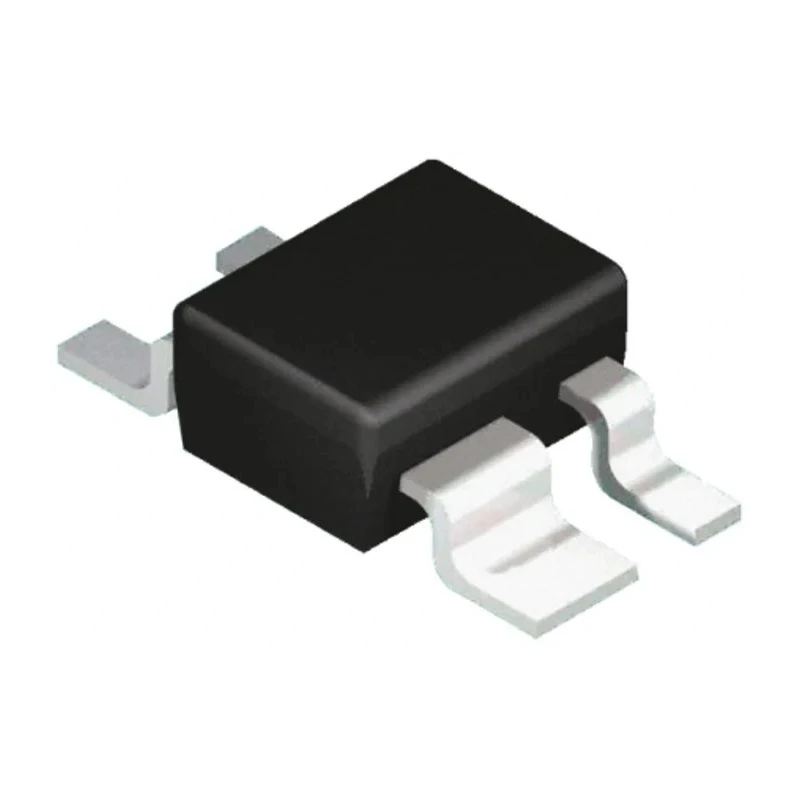

Infineon RF Broadband Amplifier 4-Pin SOT-343 2GHz 19.8 dB Gain SiGe Technology BGA614H6327XTSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 0.8mm |
| Length | 2mm |
| Model | BGA614H6327XTSA1 |
| Technology | SiGe |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-343 |
| Minimum Operating Temperature | -65°C |
| Gain | 19.8dB |
| Pin Count | 4 |
| Maximum Supply Voltage | 3V |
| Amplifier Type | Broadband |
| Noise Figure | 2.1dB |
| Third Order Intercept OIP3 | 25dBm |
| P1dB - Compression Point | 12dBm |
Key Features
- This RF amplifier is optimized for surface mount on SOT-343 packages with 4 pins.
- Maximum supply voltage of 3 V ensures low power consumption.
- The device provides a third order intercept point (OIP3) of 25 dBm for linear amplification.
- Low noise figure of 2.1 dB enhances signal clarity in sensitive RF circuits.
- Operational temperature ranges from -65 °C to 150 °C for robust performance in extreme environments.
- P1dB compression point at 12 dBm ensures reliable gain under high input power.
- Compact size with length 2 mm and height 0.8 mm allows space-saving PCB integration.
- Applications include mobile devices, GPS, and broadband RF front ends.
Product Description
Infineon BGA614H6327XTSA1 RF broadband amplifier is a high gain, SiGe-based RF amplifier designed for broadband applications at frequencies up to 2 GHz. It comes in a compact 4-pin SOT-343 surface mount package, suitable for modern PCB layouts.
Featuring 19.8 dB gain, this amplifier is well suited for use in mobile devices, GPS modules, personal navigation devices, tablets, and cameras where low noise and high linearity are critical. The amplifier ensures excellent signal reception with a noise figure rating of 2.1 dB and supports a maximum supply voltage of 3 V, contributing to low power consumption.
The device offers a third order intercept point (OIP3) of 25 dBm and a P1dB compression point of 12 dBm, delivering high linearity and robust performance under varying input power conditions. It operates reliably over a wide temperature range from -65 °C to 150 °C, making it suitable for industrial and commercial RF applications.
Its compact dimensions of 2 mm length and 0.8 mm height enable efficient use of PCB space, and the surface mount design facilitates high volume automated assembly. This amplifier does not include any specific automotive or industry standards approval.
Key features include broadband amplification, SiGe technology, and optimized noise and gain performance. The BGA614H6327XTSA1 is ideal for integration in communications, measurement, and signal processing equipment requiring precision RF amplification.
This RF amplifier is designed for broadband amplification with 19.8 dB gain. Utilizes SiGe semiconductor technology for improved performance. Compact surface mount package type SOT-343 with 4 pins. Operates down to -65 °C and up to 150 °C ambient temperature.
Maximum supply voltage capped at 3 V for energy efficient operation. Low noise figure of 2.1 dB enhances signal-to-noise ratio. High linearity with OIP3 of 25 dBm and P1dB compression point at 12 dBm. Ideal for mobile, GPS, broadband and other RF front end applications.
Explore the Electronics & Electricals category at EnvMart for additional semiconductor and amplifier solutions from reputed brands such as Infineon.
Explore more products in our RF Amplifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BGA614H6327XTSA1 RF amplifier provides a gain of 19.8 dB, optimized for broadband applications.
The maximum supply voltage for this RF amplifier is 3 V, ensuring low power consumption during operation.
It features a low noise figure of 2.1 dB, which enhances the signal clarity in sensitive RF circuits.
The operational temperature range for the BGA614H6327XTSA1 is from -65 °C to 150 °C, making it suitable for extreme environments.
The amplifier has a third order intercept point (OIP3) of 25 dBm, indicating its high linearity for amplification.
This RF amplifier has compact dimensions of 2 mm in length and 0.8 mm in height, allowing for space-saving PCB integration.
The P1dB compression point for this model is 12 dBm, ensuring reliable gain under high input power conditions.
The BGA614H6327XTSA1 comes in a 4-pin SOT-343 surface mount package, suitable for modern PCB layouts.
This RF amplifier utilizes SiGe technology, which improves performance for broadband applications.
It is suitable for use in mobile devices, GPS modules, personal navigation devices, tablets, and cameras where low noise and high linearity are critical.
This model is designed for surface mounting, facilitating high volume automated assembly.
The low noise figure of 2.1 dB enhances the signal-to-noise ratio, which is crucial for maintaining signal clarity in RF applications.
