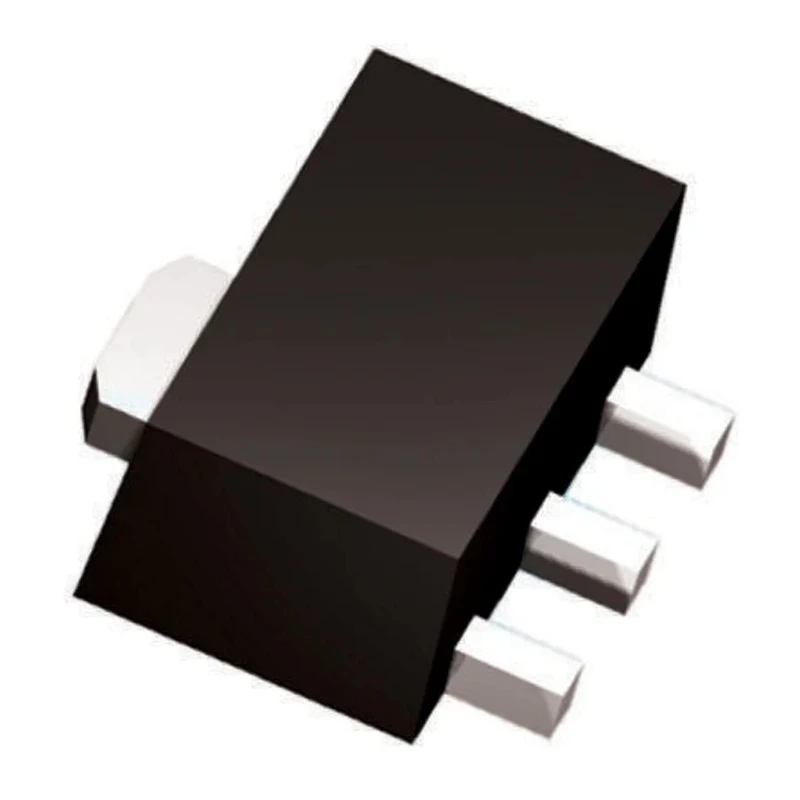

Analog Devices GPS Front End Module GaAs HBT Linear Amplifier 16.7 dB Gain 3-Pin SOT-89 ADL5535ARKZ-R7

Analog Devices ADL5535ARKZ-R7 is a high-performance GPS front end module featuring a linear RF amplifier based on GaAs HBT technology. It offers a gain of 16.7 dB in a compact 3-pin SOT-89 package designed for surface mount applications, making it ideal for integration into GPS receiver front ends.

This module operates reliably over a voltage supply range from 4.5 V to 5.5 V and maintains low noise with a 3 dB noise figure, ensuring clear signal amplification with minimal distortion. Its robust design supports operating temperatures from -40°C up to 85°C, suitable for automotive and industrial environments.

The ADL5535ARKZ-R7 also features a high third order intercept point (OIP3) of 45.5 dBm, indicating excellent linearity and strong performance under signal interference conditions. The device's 1 dB compression point is 17.7 dBm, supporting efficient power handling in GPS front end applications.

Its small form factor, measuring just 4.6 mm in length and 1.6 mm in height, allows for space-efficient PCB layouts. The surface mount SOT-89 package enables ease of assembly on modern automated manufacturing lines.

Linear amplifier type design for signal clarity. GaAs HBT technology for improved gain and noise figure. Wide supply voltage range between 4.5 and 5.5 volts. 3-pin surface mount package SOT-89 for compact mounting. Noise figure of 3 dB suitable for low signal noise applications.

Supports operation across a broad temperature range. High third order intercept point of 45.5 dBm for linearity. Compliant with MSL-1 moisture sensitivity standard.

This Analog Devices GPS front end module is ideal for GPS receivers, communication equipment, and other radio frequency applications demanding high gain, low noise amplification, and robust performance under varying environmental conditions.
