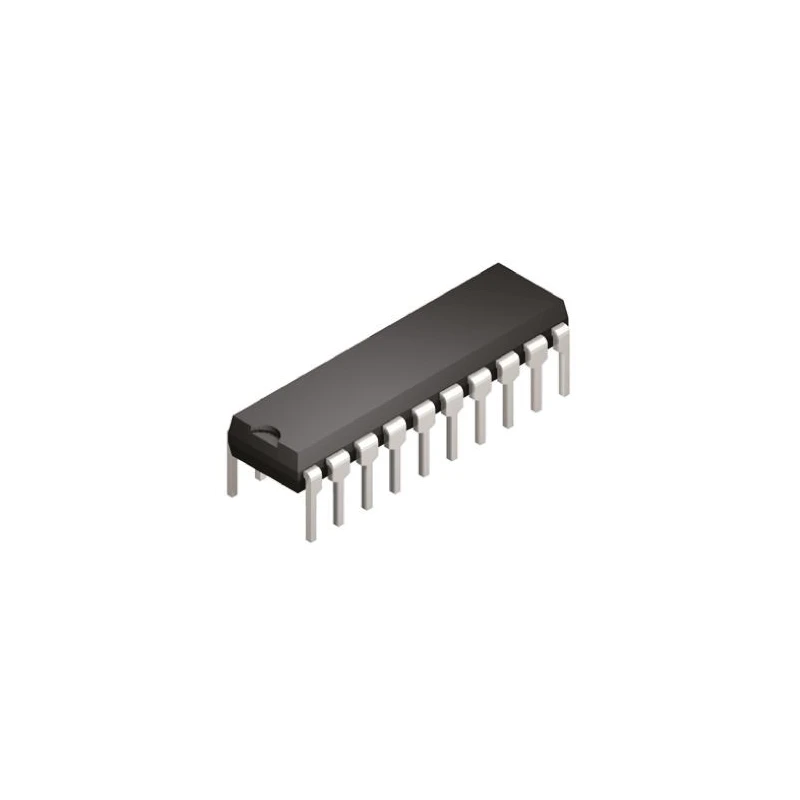

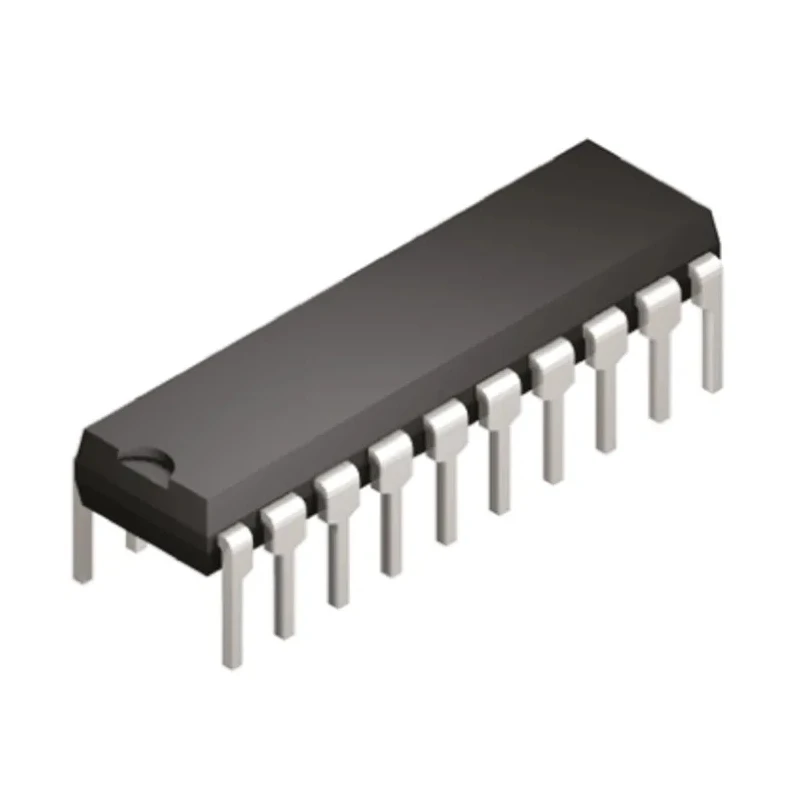

Analog Devices Digital to Analogue Converter 12 bit, 20-Pin PDIP AD7545JNZ
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Analog Devices |
| Model | AD7545JNZ |
| Mount Type | Through Hole |
| Settling Time | 2μs |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Architecture | Resistor String, R-2R |
| Pin Count | 20 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5.5V |
Key Features
- The architecture is resistor string, R-2R type for precise digital-to-analog conversion.
- It has a resolution of 12 bits, allowing high accuracy analog output.
- Supports a supply voltage ranging from 5.5V to 15V for flexibility in various applications.
- Features a settling time of 2 microseconds enabling fast response times.
- Operates reliably within a temperature range of 0°C to 70°C.
- External voltage reference input supports precise voltage control.
- Designed for through hole mounting with 20 pins in PDIP package style.
- Suitable for industrial, laboratory, and electronic circuit prototype applications requiring accurate analog signals from digital inputs.
Product Description
Analog Devices AD7545JNZ is a highly accurate 12-bit Digital to Analogue Converter (DAC) housed in a 20-pin PDIP package designed for through hole mounting. This device utilizes a resistor string, R-2R architecture that provides precise digital-to-analog conversion, ideal for electronic signal processing.
The DAC operates with a supply voltage range from 5.5V to 15V and features an external voltage reference input, permitting high precision and flexibility in controlling the output analog voltage. It is capable of fast settling times of just 2 microseconds, making it suitable for systems requiring rapid signal updates.
Designed to function over a temperature range of 0°C to 70°C, this converter offers robust performance in standard industrial and laboratory environments. Its 20-pin PDIP package supports through hole mounting, making it compatible with traditional PCB assembly methods.
This DAC is applicable in many electronic applications including signal reconstruction, process control instrumentation, and calibrated voltage generation for test equipment. It is frequently used in manufacturing, electronics prototyping, and embedded systems development.
The architecture is resistor string, R-2R type for precise digital-to-analog conversion. Features a high resolution of 12 bits providing accurate output signals. Supports supply voltages between 5.5V and 15V. Fast settling time of 2 microseconds for quick signal transitions.
Suitable for operating temperatures ranging from 0°C to 70°C. Utilizes an external voltage reference for precise voltage control. Packaged in a through hole 20-Pin PDIP form factor. Ideal for industrial, laboratory, and electronic design applications.
Explore more Analog Devices products and advanced Digital to Analogue Converters on EnvMart for your industrial and electronics engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AD7545JNZ Digital to Analogue Converter has a resolution of 12 bits, allowing for high accuracy in analog output.
This DAC supports a supply voltage range from 5.5V to 15V, providing flexibility for various applications.
The settling time for this model is 2 microseconds, enabling fast response times for signal updates.
It operates reliably within a temperature range of 0°C to 70°C, suitable for standard industrial and laboratory environments.
The DAC is packaged in a 20-pin PDIP format, designed for through hole mounting, which is compatible with traditional PCB assembly methods.
It utilizes a resistor string, R-2R architecture for precise digital-to-analog conversion.
Yes, the AD7545JNZ features an external voltage reference input that supports precise voltage control.
This DAC is suitable for applications including signal reconstruction, process control instrumentation, and calibrated voltage generation for test equipment.
The AD7545JNZ has a pin count of 20, which corresponds to its PDIP package design.
The maximum operating temperature is 70°C, while the minimum operating temperature is 0°C.
This model supports through hole mounting, making it easy to integrate into various electronic designs.
The country of origin for the AD7545JNZ is India.
