Microchip 12 Bit Digital to Analogue Converter Serial-I2C 6-Pin SOT-23 MCP4726A2T-E/CH

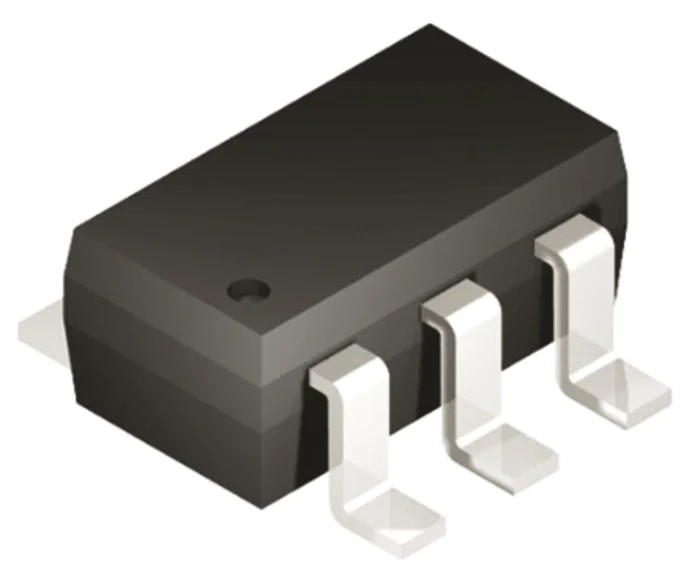

Microchip MCP4726A2T-E/CH is a high-precision 12 bit Digital to Analogue Converter designed to convert digital signals into analogue voltage with excellent accuracy and speed. Packaged in a compact 6-pin SOT-23 surface-mount format, it is suitable for various electronic applications requiring fine control of analogue outputs.

Featuring a resistor string architecture, this DAC operates on a supply voltage ranging from 2.7V to 5.5V, ensuring compatibility with a broad range of electronic systems. The device supports a serial I2C interface, simplifying integration with microcontrollers and digital signal processors for efficient data communication.

The MCP4726A2T-E/CH operates reliably across an extended temperature range from -40°C to 125°C, making it an ideal choice for industrial, manufacturing, and laboratory environments. The fast settling time of 6 microseconds enables rapid analogue output updates for real-time control applications.

This DAC outputs analogue voltage signals precisely, with package dimensions approximately 3.1 mm in length, 1.8 mm in width, and 1.4 mm in height, facilitating space-saving PCB designs. While it does not include automotive standard or other industry certifications, it offers a robust and reliable solution for digital to analogue conversion in electronics design.

Offers 12 bit resolution for accurate digital-to-analogue conversion. Features a resistor string architecture for reliable output. Supports serial I2C interface for easy communication. Designed with a compact 6-pin SOT-23 surface-mount package.

Operates with minimum supply voltage of 2.7V and maximum of 5.5V. Works across a wide temperature range from -40°C to 125°C. Ensures quick settling time of 6 microseconds for fast response. Provides analogue voltage output type for varied electronic applications.

Package dimensions approximately 3.1mm length, 1.8mm width, and 1.4mm height. No automotive or industry standard approvals included.

This Microchip DAC is suitable for electronic, industrial, laboratory, and manufacturing applications that require precise analogue voltage outputs from digital control signals. Its compact size and robust specifications make it ideal for integration on space-constrained PCBs, supporting the development of efficient electronic devices.
