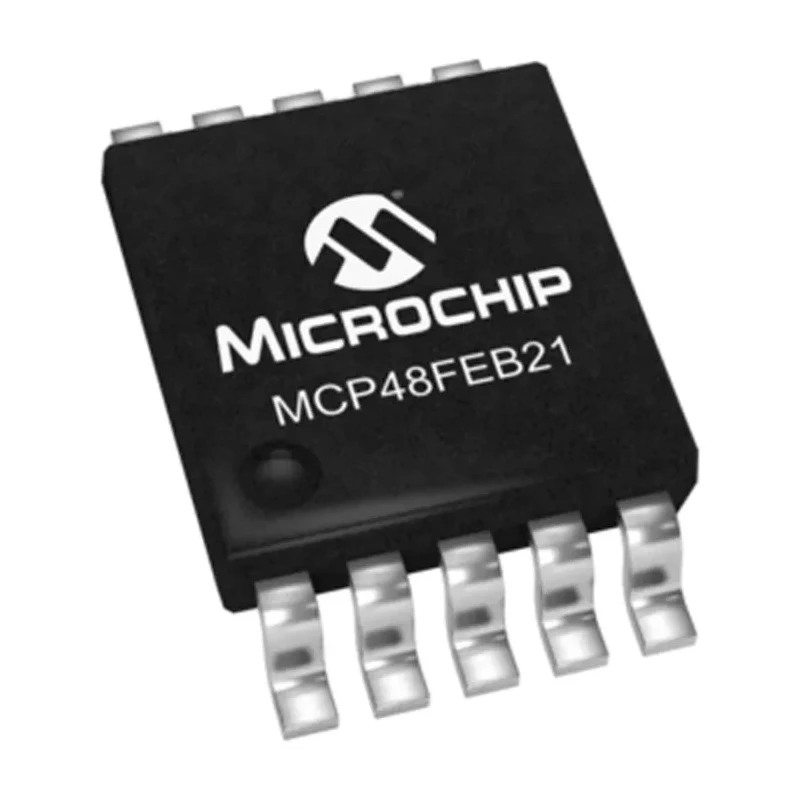

Microchip 12-Bit 1-Channel SPI Digital-to-Analogue Converter, 10-Pin MSOP MCP48FEB21-E/UN
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 1.1mm |
| Length | 3mm |
| Model | MCP48FEB21-E/UN |
| Width | 3mm |
| Mount Type | Surface |
| Settling Time | 7.8μs |
| Output type | Analogue Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Interface Type | SPI |
| Architecture | Resistor String |
| Pin Count | 10 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Fast Settling Time | 7.8 μs (typical) |
| Single-Supply Operation | 2.7 V to 5.5 V |
| DAC Voltage Reference Options | Device VDD, External VREF (buffered or unbuffered) and Internal Bandgap (1.22 V typical) |
| Output Gain Options | Unity (1x), 2x (when not using internal VDD as voltage source) |
Key Features
- The device offers 4096-step rail-to-rail output voltage resolution.
- It supports a fast settling time of 7.8 microseconds typical.
- The DAC features multiple voltage reference options including device VDD, external buffered or unbuffered VREF, and internal bandgap reference.
- The device includes non-volatile EEPROM memory to save DAC settings during power down.
- It operates from a single supply voltage ranging from 2.7 V to 5.5 V.
- Low power consumption with typical 180 microamperes in normal operation and 650 nanoamperes in power-down mode.
- Designed for surface-mount applications in MSOP package with 10 pins.
- Wide operating temperature range from -40°C to 125°C suitable for industrial environments.
Product Description
Microchip MCP48FEB21-E/UN is a high-performance 12-bit digital-to-analogue converter (DAC) designed for precision voltage output with an SPI interface in a 10-pin MSOP package. Offering a single output channel, it is ideal for industrial, laboratory, and embedded electronic applications requiring accurate analog voltage signals.
This DAC features resistor string architecture with 4096 discrete output steps delivering rail-to-rail output voltage. It provides fast settling time of 7.8 microseconds (typical) which supports rapid waveform generation and control response. The device also supports multiple voltage reference options to enhance flexibility: the device supply voltage (VDD), an external buffered or unbuffered voltage reference, or an internal bandgap reference with approximately 1.22 V typical voltage.
The integrated non-volatile EEPROM enables user settings to be preserved during power-down states, streamlining system startup and calibration. With low power consumption of 180 µA in normal operation and ultra-low 650 nA in power-down mode, this DAC supports battery-powered and energy-conscious applications.
The MCP48FEB21-E/UN is compact (3 mm length × 3 mm width × 1.1 mm height) surface-mount device (SMD) ideal for space-constrained designs. It operates reliably in harsh industrial temperature ranges from -40°C to 125°C, ensuring robustness in tough environments.
The device communicates via an SPI interface capable of write speeds up to 20 MHz and read speeds up to 10 MHz, facilitating fast digital control. Output gain can be selected as unity (1x) or 2x when voltage source is not internal VDD, providing additional design versatility.
Packaging and pin count (10-pin MSOP) support easy integration into complex PCBs for industrial and consumer electronics.
This DAC is suitable for industrial automation, instrumentation, control systems, digital signal processing, and other electronic applications requiring accurate DAC conversion from digital commands to analogue voltages. It is listed under the Digital to Analogue Converter category in semiconductor devices suitable for surface mounting.
Explore more Microchip semiconductors and digital converters for electronic component sourcing and design needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP48FEB21-E/UN has a resolution of 12 bits, providing 4096 discrete output steps for precise voltage output.
The device operates on a single supply voltage ranging from 2.7 V to 5.5 V.
This model uses an SPI interface for communication, supporting write speeds up to 20 MHz and read speeds up to 10 MHz.
The typical settling time for the output is 7.8 microseconds, enabling rapid waveform generation and control response.
The MCP48FEB21-E/UN supports multiple voltage reference options: the device supply voltage (VDD), an external buffered or unbuffered voltage reference, and an internal bandgap reference of approximately 1.22 V.
The dimensions of this model are 3 mm in length, 3 mm in width, and 1.1 mm in height, making it a compact surface-mount device.
This DAC features a single output channel, suitable for applications requiring accurate analog voltage signals.
The device utilizes a resistor string architecture, which is effective for delivering precise voltage outputs.
Output gain can be configured as unity (1x) or 2x when the voltage source is not the internal VDD.
The country of origin for this model is India.
Yes, it includes non-volatile EEPROM memory to save DAC settings during power down, facilitating system startup and calibration.
