Microchip 12 Bit 4-Channel Serial-I2C Digital to Analogue Converter MSOP MCP4728A1-E/UN

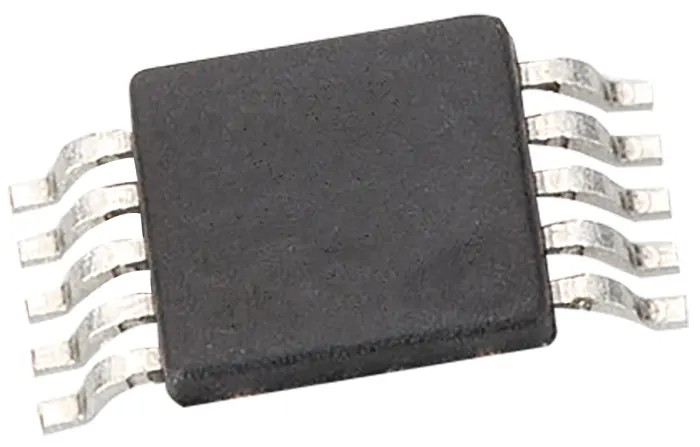

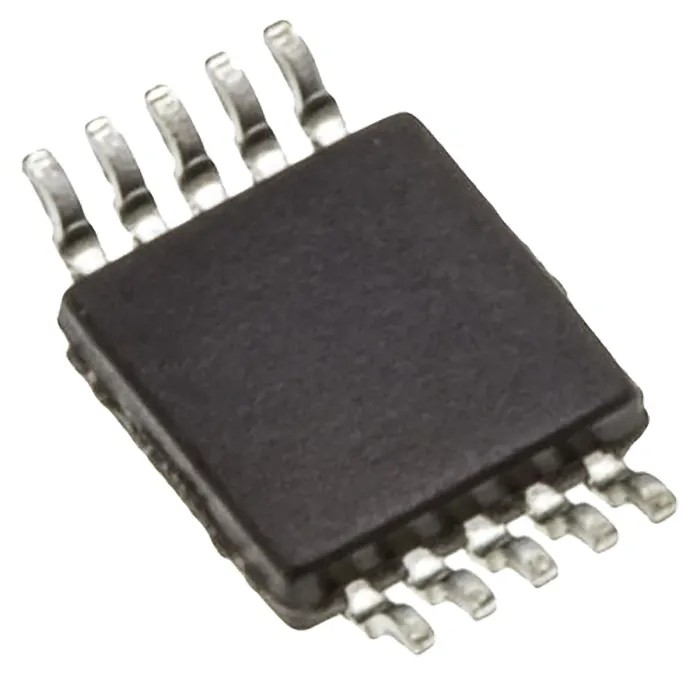

Microchip MCP4728A1-E/UN is a 12 bit, 4-channel Digital to Analogue Converter (DAC) featuring a compact 10-pin MSOP surface mount package. The device employs a resistor string architecture to provide precise and reliable analogue voltage outputs across four independent channels. Designed for a supply voltage range from 2.7V up to 5.5V, the DAC offers a settling time of 6 microseconds, making it suitable for applications requiring fast and accurate voltage conversion.

The device operates reliably over a wide temperature range from -40°C to 125°C, enabling deployment in demanding industrial, commercial, and laboratory environments. Its small footprint of 3mm length, 3mm width, and 1.1mm height allows dense PCB integration without compromising performance.

The MCP4728A1-E/UN interfaces through a Serial-I2C communication protocol, facilitating easy control and programming in embedded systems. While it is not designed to meet automotive standards, it is ideal for various semiconductor and electronic component applications, including sensor conditioning, instrumentation, and signal generation.

Manufactured in Thailand, this DAC provides a high-quality analogue voltage output solution for precision electronics. Its surface mount MSOP package ensures compatibility with standard PCB assembly processes, enhancing production efficiency.

Resistor string architecture ensures stable and accurate conversion. Surface mount package type suitable for PCB mounting. Wide operating temperature range from -40°C to 125°C for industrial applications. Compact 3mm x 3mm x 1.1mm MSOP package with 10 pins.

Output is an analogue voltage signal across 4 independent channels. Compatible with Serial-I2C interface for easy integration. Designed with no automotive standards, optimized for general electronics use. Explore Microchip semiconductor components across EnvMart for reliable, accurate, and versatile digital to analogue conversion solutions.
