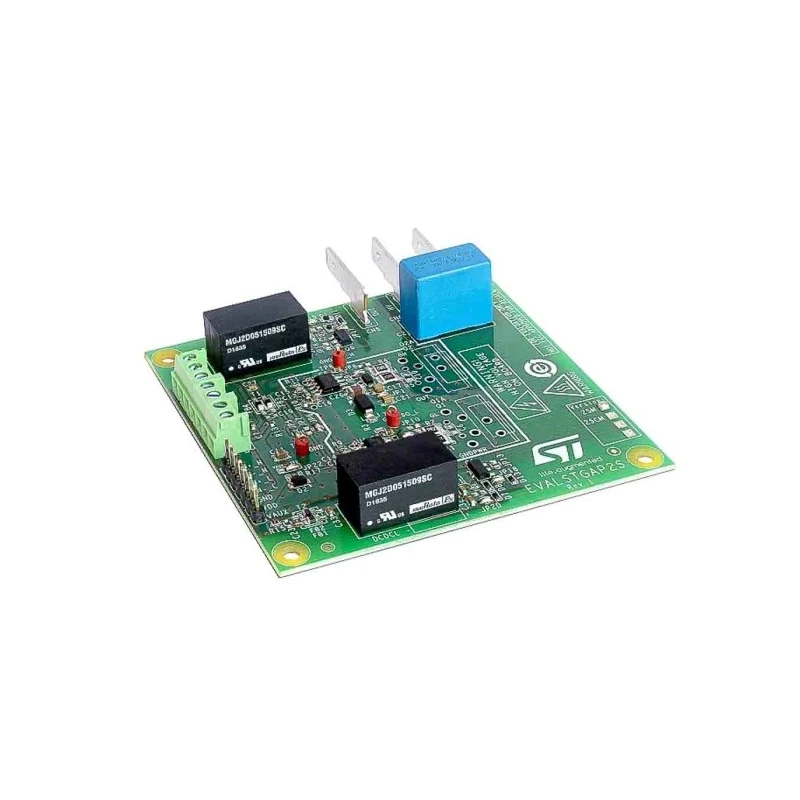

STMicroelectronics Power Management Demonstration Board for STGAP2SM Isolated 4 A Single Gate EVALSTGAP2SM
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | EVALSTGAP2SM |
| For Use With | STGAP2SM Isolated 4 A Single Gate |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | STGAP2SM |
| Kit Name | Demonstration Board |
Key Features
- Features 4 A current capability with rail-to-rail outputs suitable for industrial motor drivers.
- Supports MOSFET, IGBT, and SiC power switches for diverse power electronics applications.
- Includes variants with separated source and sink outputs or single output pin with Miller clamp function.
- Incorporates protection features such as under-voltage lockout (UVLO) and thermal shutdown for enhanced reliability.
- Allows control signal polarity selection and hardware interlocking to prevent controller malfunction cross-conduction.
- Enables negative gate driving via integrated isolated DC-DC converters for optimized driving voltages.
- Designed as an evaluation kit suitable for power management development and testing.
- RoHS compliant and made in Italy ensuring quality manufacturing standards.
Product Description
STMicroelectronics EVALSTGAP2SM is a power management demonstration board designed for the STGAP2SM isolated 4 A single gate. It is engineered to provide high current capability with rail-to-rail outputs, making it ideal for demanding industrial power inverter applications such as motor drivers. This evaluation kit supports MOSFET, IGBT, and SiC power switches, serving a wide range of high power electronics needs.
The device comes in two variants: one featuring separated source and sink outputs, and another with a single output pin accompanied by a dedicated Miller clamp pin. This flexibility allows developers to tailor the output configuration to their specific application requirements. Integrated protection mechanisms including under-voltage lockout (UVLO) and thermal shutdown enhance system reliability and simplify safety design considerations.
Dual input pins enable selection of control signal polarity and the implementation of hardware interlocking, preventing cross-conduction events caused by controller failures. The EVALSTGAP2SM also supports negative gate driving through onboard isolated DC-DC converters, optimizing gate drive voltage for various power transistor technologies. This makes it particularly suitable for industrial, manufacturing, and power electronics development environments.
The demonstration board complies with RoHS standards and is manufactured in Italy, assuring quality and environmental compliance. It is an essential tool for engineers working on motor drivers, inverters, and high power switching applications.
4 A current capability with rail-to-rail outputs for power inverter use. Variants with separated source/sink outputs or single output with Miller clamp. Built-in protection includes UVLO and thermal shutdown. Control signal polarity selection and hardware interlocking features.
Negative gate driving via onboard isolated DC-DC converters. Suitable for MOSFET, IGBT, and SiC power switches. RoHS compliant and made in Italy. Explore more Power Management evaluation boards and development kits at EnvMart to enhance your industrial or electronics project capabilities.
