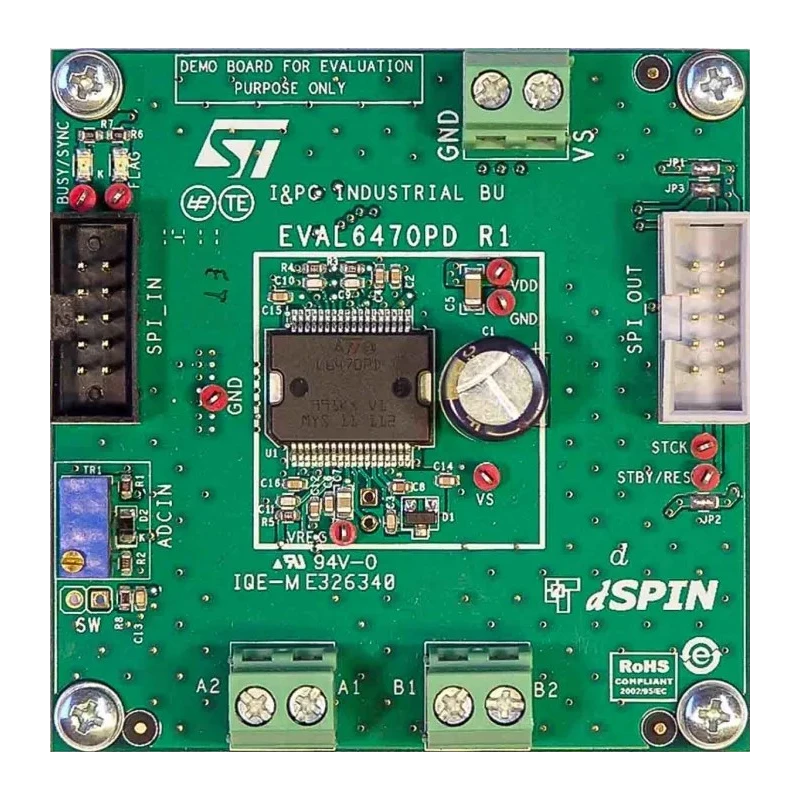

STMicroelectronics Power Management Demonstration Board for L6470 Voltage Mode Driving EVAL6470PD
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | EVAL6470PD |
| For Use With | Voltage Mode Driving |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | L6470 |
| Kit Name | Demonstration Board |
Key Features
- The board supports voltage mode driving with a voltage range from 8 V to 45 V.
- It features phase current capability up to 3 Ar.m.s. for robust motor control.
- The design includes dual SPI connectors for daisy chain configuration suitable for multi motor applications.
- Indicator LEDs display SW input, FLAG, and BUSY status for easy monitoring.
- Adjustable supply voltage compensation enhances accuracy and performance.
- The 4-layer layout and PowerSO package provide high thermal performance with typical Rthj-a12 °C/W.
- Compatible with the STEVAL-PCC009V2 communication board and SPIN evaluation software for full feature investigation.
- RoHS compliant and made in Italy, ensuring quality and environmental standards.
Product Description
STMicroelectronics EVAL6470PD Power Management Demonstration Board is a high-performance evaluation kit designed for voltage mode driving applications using the L6470 integrated circuit. It serves as a fully integrated microstepping motor driver board that allows engineers and developers to explore and optimize motor control features effectively.
This demonstration board operates over a voltage range of 8 V to 45 V with phase current capacity up to 3 Ar.m.s., making it suitable for various motor control scenarios. Its robust 4-layer printed circuit board design combined with the PowerSO package ensures excellent thermal dissipation with a typical junction-to-ambient thermal resistance of 12 °C/W.
The dual SPI connectors incorporated on the board enable daisy chain configurations, which facilitate evaluation in multi motor setups. The board includes SW input, FLAG, and BUSY LEDs for real-time signal and status monitoring, simplifying debugging and control verification.
Voltage supply compensation can be adjusted to enhance precision and adaptability in different operating conditions. Together with the STEVAL-PCC009V2 communication board and SPIN evaluation software, this board provides comprehensive control and configuration features for the L6470 device.
Designed primarily for power management and motor control development, this evaluation kit is RoHS compliant and assembled in Italy. It is ideal for research, industrial, laboratory, and educational development involving motor drivers.
The board supports voltage mode driving with a voltage range from 8 V to 45 V. Phase current up to 3 Ar.m.s. delivers strong motor drive capability. Dual SPI connector supports daisy chaining for multi motor applications.
SW input, FLAG, and BUSY LEDs provide status indicators for system monitoring. Adjustable supply voltage compensation for enhanced operational stability. High thermal performance with a 4-layer board and PowerSO packaging.
Compatibility with STEVAL-PCC009V2 and SPIN software for comprehensive evaluation. RoHS compliant, supporting environmental standards and quality assurance.
Explore the capabilities of the L6470 IC with the STMicroelectronics Demonstration Board Power Management EVAL6470PD for Voltage Mode Driving. It offers a complete and reliable platform for motor driver development and evaluation, suitable for industrial and laboratory environments.
Browse more Power Management development kits and evaluation boards available at EnvMart for your technical and industrial application needs.
