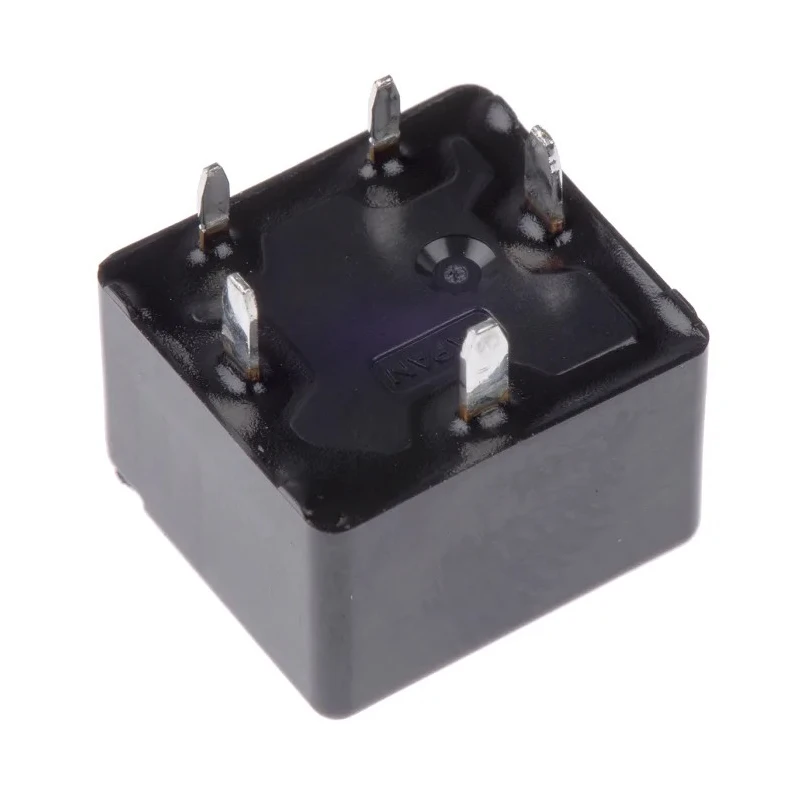

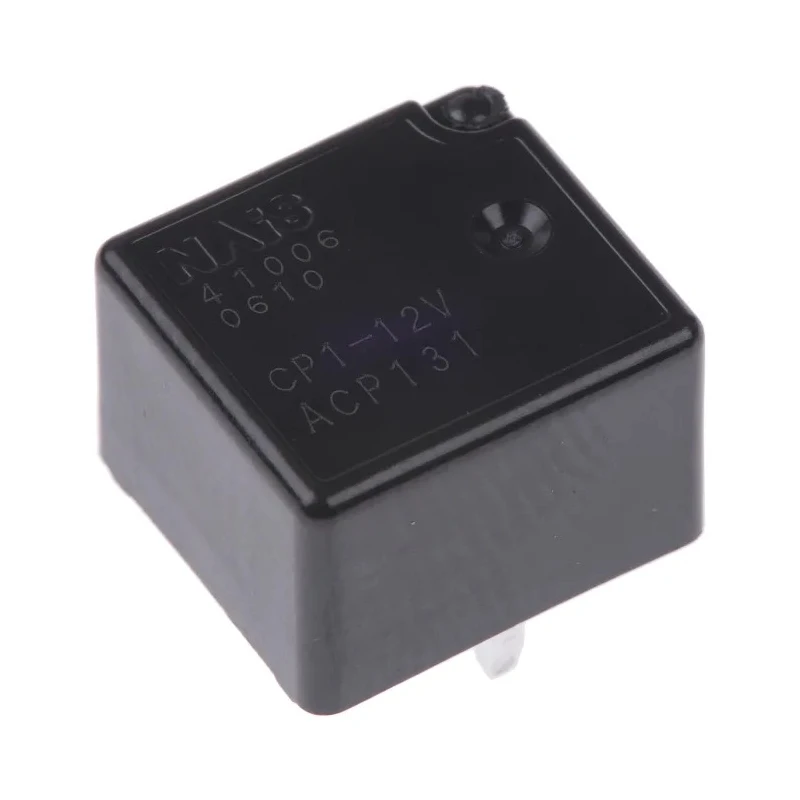

Panasonic PCB Automotive Relay 12V DC Coil, 25A Switching Current, SPDT CP1-12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9.5mm |
| Length | 14mm |
| Model | CP1-12V |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | CP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 25A |
| Terminal type | Solder |
| Standards/Approvals | VDE, CE, IEC, TUV, RoHS, UL |
| Coil Resistance | 225Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 640mW |
| Panasonic PCB Automotive Relay, 12V dc Coil, 25A Switching Current, SPSTBrand | Panasonic |
Key Features
- The relay has a compact flat design measuring 14mm length, 13mm width, and 9.5mm height.
- It supports a maximum switching AC voltage of 400V AC for versatile electrical loads.
- The coil resistance is 225 ohms with a coil power consumption of 640mW.
- Operates reliably within temperature range from -40°C to 85°C.
- Constructed with durable silver alloy contacts to ensure electrical performance and longevity.
- Designed for PCB mounting with solder terminals for secure installation.
- Sealed construction protects against environmental factors in automotive systems.
- Certified to meet multiple international standards including VDE, CE, IEC, TUV, RoHS, and UL.
Product Description
Panasonic CP1-12V is a PCB Automotive Relay featuring a 12V DC coil voltage and a 25A switching current with SPDT contact configuration. This relay offers a compact and low-profile design with precise dimensions of 14mm length, 13mm width, and 9.5mm height to suit space-constrained automotive electrical systems.
Its sealed design ensures resilience against harsh automotive environments. The relay supports an AC switching voltage up to 400V and operates reliably over a wide temperature range from -40°C up to 85°C, making it suitable for diverse automotive climatic conditions.
The coil resistance of 225Ω and coil power rating of 640mW enable efficient operation. Solder terminal type and PCB mount facilitate easy and secure installation in automotive circuit boards.
Silver alloy contact material guarantees electrical durability and reliable switching performance. The relay complies with international safety and environmental standards, including VDE, CE, IEC, TUV, RoHS, and UL certifications, confirming quality and regulatory compliance.
Typical automotive system applications include defoggers, ignition controls, heaters, accessory power supply, power windows, ABS units, and various other vehicle electronic subsystems.
The relay is ideal for compact automotive power switching requirements. Supports capacitor loads needed for automotive power supply circuits. Flat, sealed construction extends service life and reliability in demanding environments.
The product is manufactured in Japan, ensuring high production quality standards. Explore more reliable automotive and PCB relay solutions from Panasonic to enhance your vehicle electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current rating of 25A.
The coil voltage for this relay is 12V DC.
The relay measures 14mm in length, 13mm in width, and 9.5mm in height.
It supports a maximum switching AC voltage of 400V AC.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The coil resistance is 225 ohms.
The coil power consumption is 640mW.
It operates reliably within a temperature range from -40°C to 85°C.
The contacts are made of durable silver alloy.
It is designed for PCB mounting with solder terminals for secure installation.
It is certified to meet multiple international standards including VDE, CE, IEC, TUV, RoHS, and UL.
This relay is manufactured in Japan.
