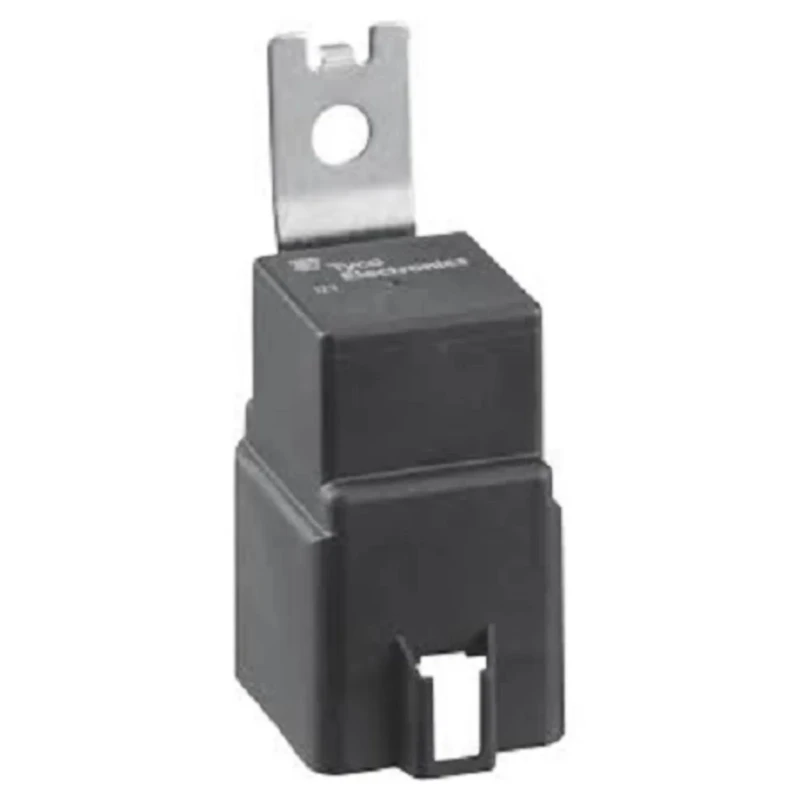

TE Connectivity Automotive Relay, 12V DC Coil Voltage, 20A Switching Current, SPDT 1-1414552-0

TE Connectivity 1-1414552-0 Automotive Relay is designed as a reliable automotive electrical component operating at a 12V DC coil voltage and supporting a 20A switching current with SPDT contact configuration. This relay offers efficient coil power consumption of 1.3W and a coil resistance of 114Ω, ensuring excellent performance in demanding automotive environments.

Equipped with quick connect terminals, this relay facilitates rapid and secure installation. It is engineered to operate reliably across a broad temperature range from -40°C up to 125°C, making it suitable for use in diverse climatic conditions.

The compact dimensions of this relay - 32.41mm in length, 54.2mm in height, and 35.2mm in depth - make it suitable for tight installation spaces within automotive electrical systems.

The contact material is a silver alloy, chosen for its superior conductivity and durability, enhancing the relay's operational lifespan under repeated electrical load cycling.

Ideal applications include ABS control systems, blower and cooling fans, energy management circuits, engine management, fuel pumps, and lighting controls such as front, rear, and fog lamps. Its SPDT configuration enables it to control circuits requiring a common input with two selectable outputs.

The relay complies with relevant automotive standards and is part of the 1-1414552-0 series, ensuring compatibility and performance consistency. Coil power consumption is 1.3W providing efficient operation. Coil resistance is 114Ω ensuring stable coil performance.

Terminal type is quick connect for easy installation. Operating temperature ranges from -40°C to 125°C for extreme environment resilience. Compact size with dimensions of length 32.41mm, height 54.2mm, and depth 35.2mm. Constructed with silver alloy contact material for reliable conductivity.

Suitable for automotive applications such as ABS control, blower fans, cooling fans, energy management, and engine control. Designed as a single-pole double-throw (SPDT) switch for versatile circuit control. Manufactured in Portugal ensuring consistent quality standards.

This automotive relay from TE Connectivity supports cross carline current up to 40A for specific applications and integrates specialized covers with brackets for enhanced mounting security. Its pin assignment follows ISO 7588 Part 1 standards for universal automotive compatibility.
