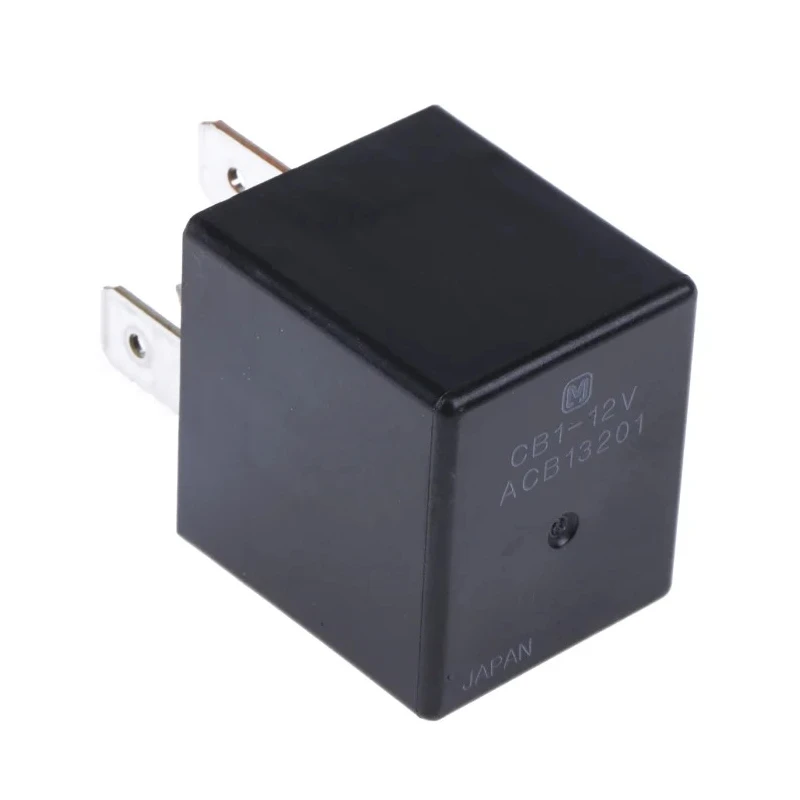

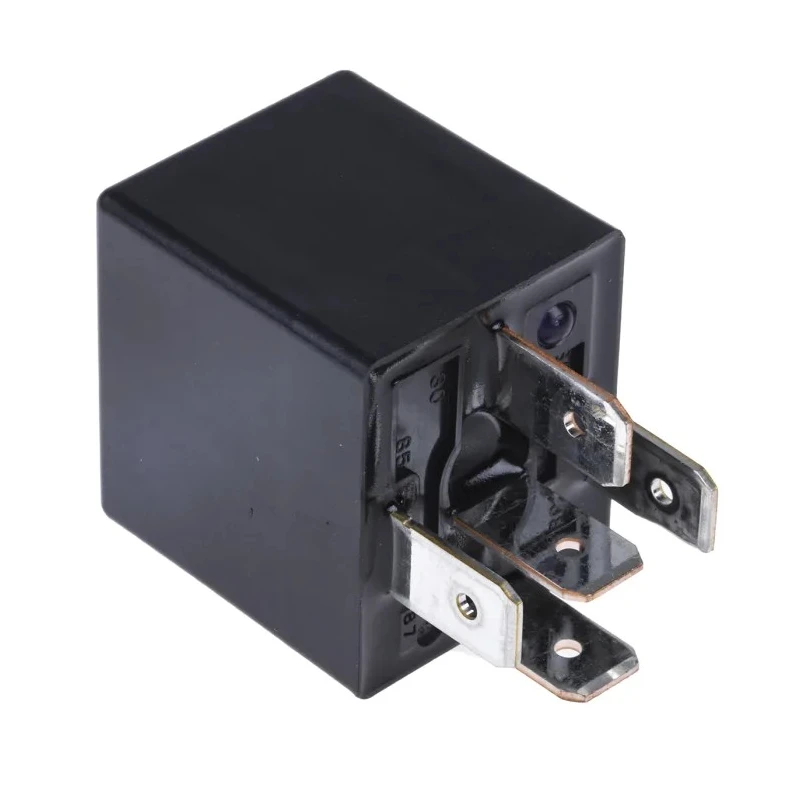

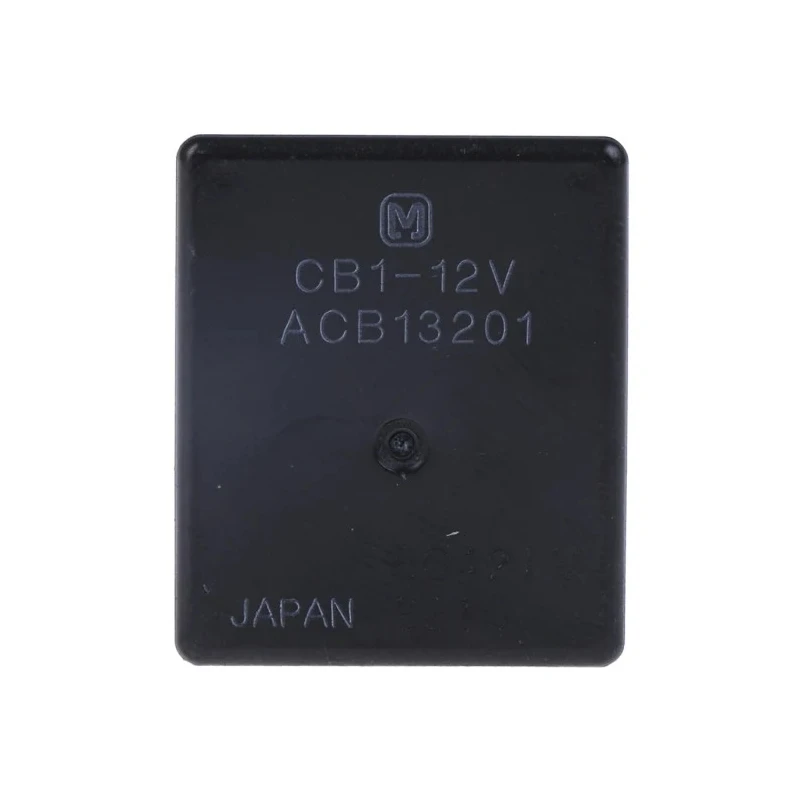

Panasonic Automotive Relay 12V dc Coil 40A Switching Current SPDT CB1-12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 36mm |
| Length | 26mm |
| Model | CB1-12V |
| Width | 22mm |
| Contact Material | Silver Alloy |
| Series | CB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 40A |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| Coil Resistance | 103Ω |
| Coil Voltage | 12V dc |
| Coil Power | 1.4W |
| Switching Power | 1.8W |
Key Features
- This relay operates reliably within a temperature range of -40°C to 85°C.
- It includes a quick connect terminal type ensuring easy installation.
- The coil resistance is 103 ohms, and coil power consumption is 1.4W.
- The compact design measures 26mm length, 22mm width, and 36mm height for space-saving integration.
- Constructed with silver alloy contacts for durable and efficient conductivity.
- The relay complies with RoHS standards, guaranteeing environmentally friendly manufacturing.
- Typical applications include automotive, construction, and agricultural equipment uses.
Product Description
Panasonic CB1-12V automotive relay features a 12V DC coil with a 40A switching current and an SPDT contact configuration, designed for high power and reliable automotive system functionality.
The relay's compact size, with dimensions of 26mm length, 22mm width, and 36mm height, allows effective space-saving installation in automotive and industrial equipment.
The coil resistance of 103Ω ensures consistent operation at 1.4W coil power consumption, providing efficient energy use. It reliably operates over a wide temperature range from -40°C to 85°C, suitable for harsh environments.
Equipped with quick connect terminals and silver alloy contacts, this relay guarantees strong electrical connectivity and ease of maintenance. Compliance with RoHS standards underlines its adherence to environmental and safety regulations.
This Panasonic automotive relay is ideal for use in automobiles, agricultural machinery, and construction equipment, where a durable and high-performance relay is essential. This relay operates reliably within a temperature range of -40°C to 85°C.
Includes a quick connect terminal type ensuring easy installation. Coil resistance of 103 ohms and coil power consumption of 1.4W. Compact dimensions: 26mm length, 22mm width, and 36mm height. Silver alloy contacts ensure durable and efficient conductivity.
RoHS compliant for environmentally friendly manufacturing. Suitable for automotive, construction, and agricultural equipment applications. Explore Panasonic Automotive Relays and related electrical products on EnvMart for seamless integration into your projects and systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 40A.
This model operates with a coil voltage of 12V DC.
The relay measures 26mm in length, 22mm in width, and 36mm in height.
The coil resistance is 103 ohms.
The coil power consumption is 1.4W.
It operates reliably within a temperature range of -40°C to 85°C.
The relay features quick connect terminals for easy installation.
The contacts are constructed from silver alloy for efficient conductivity.
Yes, it complies with RoHS standards, ensuring environmentally friendly manufacturing.
Typical applications include use in automotive, construction, and agricultural equipment.
The relay has a Single Pole Double Throw (SPDT) contact configuration.
The relay is manufactured in Japan.
