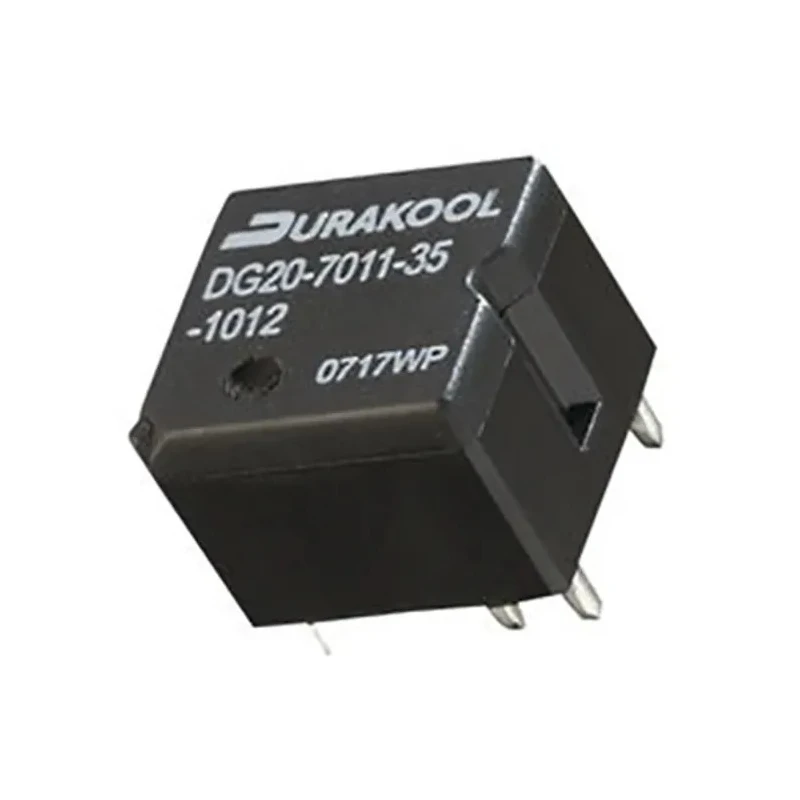

Durakool Automotive Relay PCB Mount, 12V DC Coil Voltage, 30A Switching Current, SPDT Contact Configuration DG20-7011-35-1012
Specifications
| Country of Origin | China |
|---|---|
| Brand | Durakool |
| Height | 10.3mm |
| Length | 13.2mm |
| Model | DG20-7011-35-1012 |
| Depth | 12.3mm |
| Mount Type | PCB |
| Contact Material | Silver Tin Oxide Indium Oxide |
| Series | DG20 |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Number of Poles | 1 |
| Coil Resistance | 254Ω |
| Coil Power | 550mW |
| Isolation Coil To Contact | 500Vrms |
Key Features
- This relay provides a single-pole double-throw (SPDT) contact configuration suitable for reliable circuit switching.
- It features a coil power rating of 550mW and coil resistance of 254 ohms ensuring efficient operation.
- Operates between -40°C and 105°C, suitable for harsh automotive environments.
- Constructed with silver tin oxide indium oxide contacts for enhanced conductivity and durability.

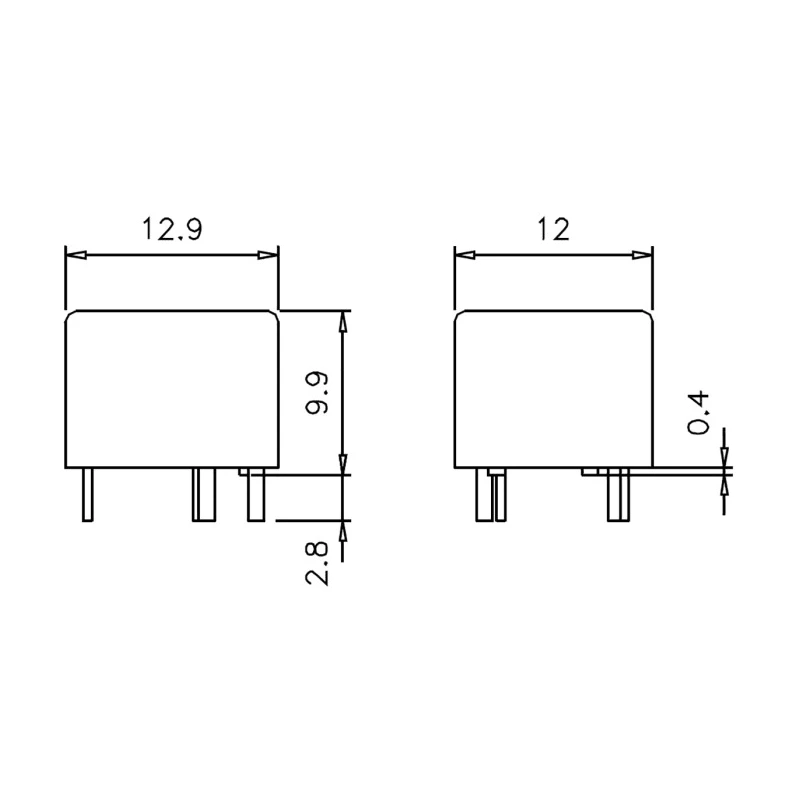

- Compact PCB mount design with dimensions 13.2mm (L) x 10.3mm (H) x 12.3mm (D) for easy integration.
- Isolation between coil and contact rated at 500Vrms providing electrical safety and performance.
- Non-latching coil mechanism designed for long life cycle and high resistance to inrush current.
- RoHS compliant and manufactured to meet quality standards.
Product Description
Durakool DG20-7011-35-1012 is an automotive relay designed for PCB mounting applications. Featuring a 12V DC coil voltage and 30A switching current, this SPDT relay is engineered for robust performance in automotive electrical systems.
Durakool's DG20 series relays incorporate a non-latching coil with a high expected life cycle and are highly resistant to inrush currents. These relays provide reliable switching mechanisms with a single-pole double-throw contact configuration using silver tin oxide indium oxide contact material for superior conductivity and longevity.
The relay is built to operate within a temperature range of -40°C to 105°C, making it suitable for demanding environmental conditions commonly encountered in automotive and industrial settings. The compact PCB mount design allows for integration into dense electronic assemblies with dimensions measuring 13.2mm length, 10.3mm height, and 12.3mm depth.
Isolation between the coil and contact is rated at 500Vrms to ensure electrical safety and prevent interference. With a coil power of 550mW and resistance of 254 ohms, the device offers efficient electrical characteristics optimized for automotive control circuits.
This relay features a compact and durable PCB mounting format suitable for automotive electrical systems. The non-latching coil design extends the device's operational life and improves resistance to inrush current surges.
Contact material of silver tin oxide indium oxide ensures long-lasting electrical contact and corrosion resistance. Operating temperature range makes it reliable for use in harsh automotive environments. Isolation voltage between coil and contact enhances safety and electrical isolation capabilities.
RoHS compliance reflects adherence to environmental and safety standards. Dimensions and terminal style facilitate simple installation and mechanical stability on PCB boards.
Ideal for use in automotive electronics, industrial control panels, and other electrical automation systems requiring high reliability and compact form factor. Environmentally compliant and manufactured to precise standards, the Durakool DG20-7011-35-1012 relay is a dependable solution for modern electronic assemblies.
Browse the Electronics & Electricals > Relays & Contactors > Automotive Relays category for more high-quality Automotive Relay options on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 12V DC.
It has a maximum switching current of 30A.
This model features a single-pole double-throw (SPDT) contact configuration.
The relay operates within a temperature range of -40°C to 105°C.
The coil resistance is 254 ohms.
The isolation between the coil and contact is rated at 500Vrms.
The contact material is silver tin oxide indium oxide, which enhances conductivity and durability.
The dimensions are 13.2mm (length) x 10.3mm (height) x 12.3mm (depth).
It is designed for PCB mounting.
The coil power rating is 550mW.
Yes, this relay is RoHS compliant, reflecting adherence to environmental and safety standards.
It is suitable for automotive electronics, industrial control panels, and other electrical automation systems requiring high reliability.
