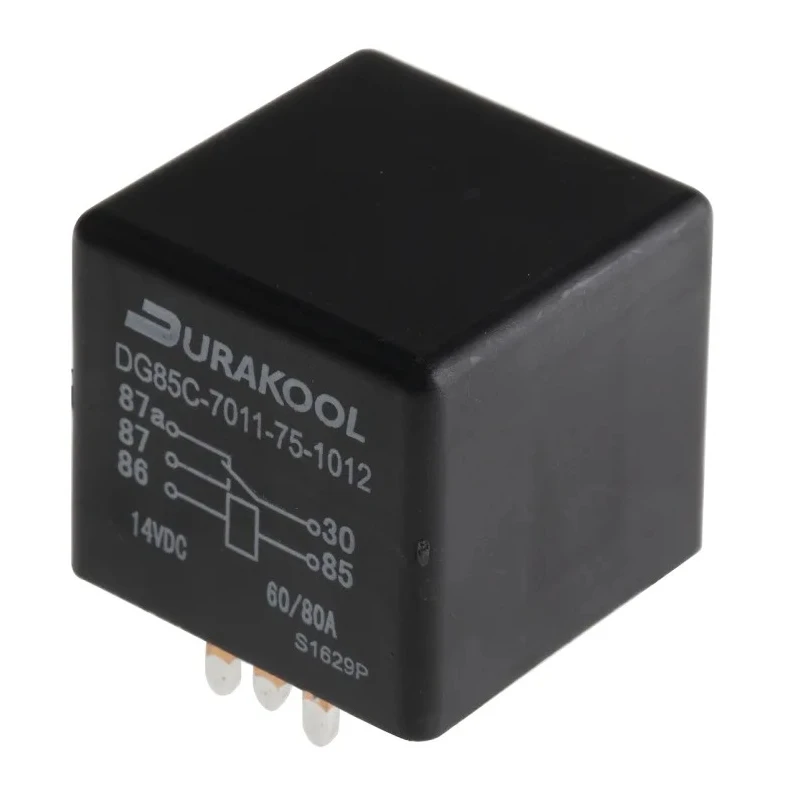

Durakool PCB Power Relay 12V dc Coil 80A Switching Current SPDT DG85C-7011-75-1012

Durakool DG85C-7011-75-1012 is a high-performance PCB power relay designed for industrial and automotive electronic applications requiring reliable control of high current loads. Featuring a 12V dc coil and a robust 80 ampere switching current capacity, this SPDT configuration relay allows flexible circuit control with durable silver tin oxide indium contacts that provide long service life with minimal contact resistance (100mΩ).

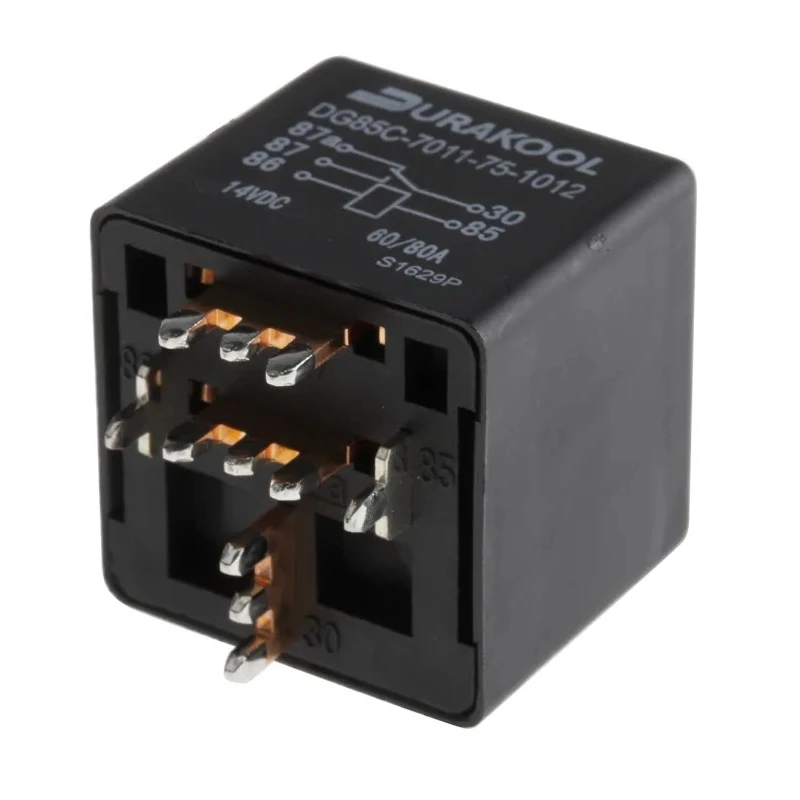

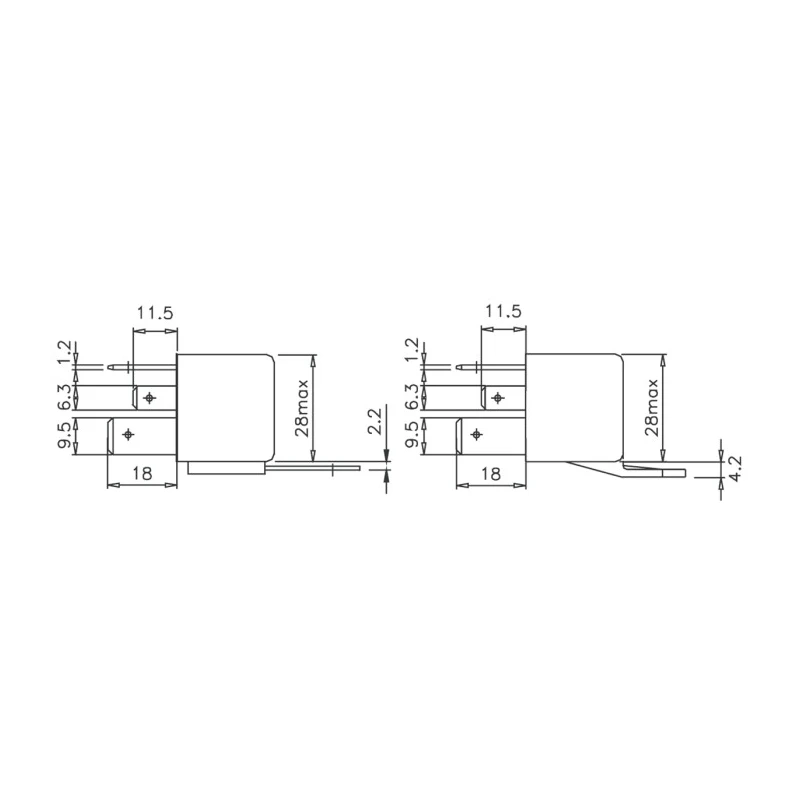

This relay is engineered for PCB mounting using quick connect terminals to ensure easy and secure installation in compact electronic assemblies. Its dimensions of 28.3mm length, 28.3mm width, and 25mm height provide a convenient footprint for space-constrained designs. Operating within an extensive temperature range from -40°C to a maximum of 125°C, it performs reliably in harsh automotive or industrial environments.

The coil resistance of 90Ω and coil power of 1.81W reflect optimized electrical characteristics for energy-efficient operation. Rated switching voltages up to 30V dc and 30V ac enable use in diverse power relay applications including DC motor control, power switching, and signal isolation.

Durakool DG85 series relays are renowned for high resistance to inrush currents and continuous DC current handling, making them ideal for high-demand automotive circuits as well as industrial control systems. Compliance with RoHS standards demonstrates environmental compliance and suitability in modern industrial settings.

This product is manufactured in China and ships in new condition, assuring quality and reliability for demanding electrical control applications in automotive, industrial, laboratory, and commercial sectors.

The relay coil operates at 12V dc enabling usage in automotive circuits. It supports a high switching current of 80 amperes for heavy-duty loads. SPDT (Single Pole Double Throw) contact configuration allows multiple circuit control.

Constructed with silver tin oxide indium contact material for durability and reliable conduction. Designed for PCB mounting with quick connect terminals for easy installation. Operates within a temperature range of -40°C to 125°C ensuring robust performance.

The compact relay measures 28.3mm length, 28.3mm width, and 25mm height. Coil resistance is 90 ohms with coil power consumption of 1.81 watts. Maximum switching voltage is 30V for both DC and AC applications. Compliant with RoHS standards, ensuring environmental safety.
